HOLZ-HER EVOLUTION 7402 PinJet

Q: How much does the HOLZ-HER EVOLUTION 7402 PinJet cost?

The price estimate for the HOLZ-HER EVOLUTION 7402 PinJet is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/holz-her-evolution-7402-pinjet#price; the request is passed to HOLZ-HER or an authorised dealer.

Specs verified 2026-10-05 · holzher.co.uk Updated 2026-10-05

HOLZ-HER EVOLUTION 7402 series vertical CNC machining centre

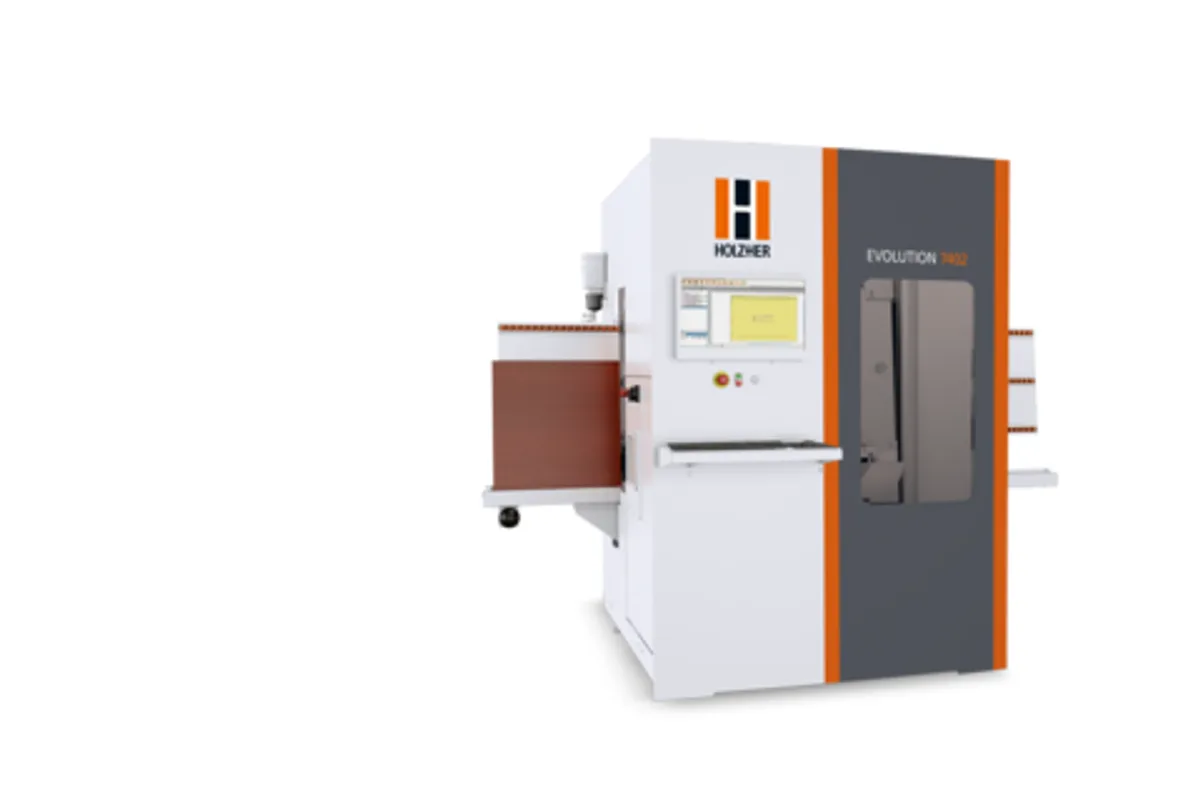

Image: holzher.co.uk, HOLZ-HER

Key Specifications

Spindle Power

10.3 kW (13.8 hp), HSK chuck

machining length x

2,500 mm (98.4 in)

machining height y

920 mm (36.2 in)

spindle speed range

1,000-24,000 rpm

max tool diameter

80 mm (3.1 in)

max tool length

80 mm (3.1 in) from front edge of chuck

How much does the HOLZ-HER EVOLUTION 7402 PinJet cost?

Price estimate

Uncertain

We do not have a price for the HOLZ-HER EVOLUTION 7402 PinJet that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The HOLZ-HER EVOLUTION 7402 PinJet is the EVOLUTION 7402 vertical machining centre with a dowel insertion unit built in. After drilling an edge hole it can pretreat the hole and drive the dowel, so carcass parts leave the machine with their dowels already seated.

The unit works with dowels 8 mm in diameter and 30 - 40 mm in length. They go into predrilled 8 mm holes in the +/- X direction, from both sides. Choosing “Insert dowel” in the controller runs the whole sequence: drill, moisten the hole with a process-controlled mist nozzle, insert. Supply reservoirs with an observation window hold approximately 300 to 400 dowels depending on their length, and a sensor monitors the insertion unit. A dry setting allows uncoated dowels as well as precoated ones. The unit has a central water connection.

Underneath, the figures are those of the standard machine. Edge routing dimensions are 2,500 mm (98.4 in) by 920 mm (36.2 in), the drilling head has 15 spindles with a sawing unit in X, and the 10.3 kW (13.8 hp) HSK cutter unit runs from 1,000 to 24,000 rpm. Overall size stays at 2,960 mm (116.5 in) in length, 2,440 mm (96.1 in) in height and 1,725 mm (67.9 in) in depth, with a weight of 2,500 kg (5,511 lb).

For a longer frame with the same dowelling unit, HOLZ-HER lists the EVOLUTION 7405 PinJet at 3,200 mm (126.0 in) in X. Where connectors are preferred to dowels, the EVOLUTION 7405 Connect is the variant set up for them.

Full Specifications

Parameter	Value
Machining Length X	2,500 mm (98.4 in)
Machining Height Y	920 mm (36.2 in)
Spindle Motor Power	10.3 kW (13.8 hp), HSK chuck
Spindle Speed Range	1,000-24,000 rpm
Max Tool Diameter (full magazine)	80 mm (3.1 in)
Max Tool Length	80 mm (3.1 in) from front edge of chuck
Vector Speed	68 m/min
Safety Equipment	CE compliant
Drilling Head	15 spindles (9 V \| 6 H), sawing unit in X direction
Drilling Head Options	XL drilling head with sawing unit in X direction; double drilling spindle in Y direction; vertical adapter with double positioning force
Workpiece Clamping	Automatically positioning vacuum system
Vacuum Pump Option	ECO-Vac 8 m³/h vacuum pump
Workpiece Support	Solid rollways incl. stops
Software	CAMPUS / NC-HOPS incl. aCADemy CAD/CAM module with machine license
Machine Weight	2,500 kg (5,511 lb)
Overall Length	2,960 mm (116.5 in)
Overall Height	2,440 mm (96.1 in)
Overall Depth	1,725 mm (67.9 in)
Extraction Connections	2 x dia. 120 mm (4.7 in) + 1 x dia. 140 mm (5.5 in)

Specifications sourced from holzher.co.uk — verified 2026-10-05

Strengths & Limitations

Strengths

Drills, moistens and inserts 8 mm dowels as one controller function
Dowels can be inserted in the +/- X direction from both sides
Reservoirs with an observation window hold approx. 300 to 400 dowels
Keeps the 15-spindle drilling head and the 10.3 kW (13.8 hp) HSK cutter unit of the base machine
Same compact frame: 2,960 mm (116.5 in) long and 1,725 mm (67.9 in) deep

Limitations

Dowel size is fixed at 8 mm in diameter with a length of 30 - 40 mm
Dowel insertion is described for the +/- X direction only
Needs a water connection for the mist nozzle
Y dimension is limited to 920 mm (36.2 in)

Best For

Dowelled carcass construction in small batches Shops that want drilling and dowel insertion in one clamping Workshops short of floor space

Frequently Asked Questions

01 What does PinJet do on the EVOLUTION 7402 PinJet?

It inserts dowels automatically. When “Insert dowel” is selected, the controller drills the hole, performs the preliminary treatment and inserts the dowel. A process-controlled mist nozzle moistens the drilled hole before insertion, and a sensor monitors the insertion unit.

02 Which dowels can the PinJet unit use?

Dowels of 8 mm diameter with a length of 30 - 40 mm, inserted into predrilled 8 mm holes. HOLZ-HER describes the unit for precoated dowels, and a dry insertion setting allows uncoated dowels to be used as well. The reservoirs hold approximately 300 to 400 dowels, depending on dowel length.

03 Is the PinJet version bigger than the standard EVOLUTION 7402?

Not according to the tables. Both list an overall length of 2,960 mm (116.5 in), a height of 2,440 mm (96.1 in), a depth of 1,725 mm (67.9 in) and a weight of 2,500 kg (5,511 lb). The dowel reservoirs are integrated into the machine.

04 What routing and drilling equipment does it have?

A drilling head with 15 spindles, 9 vertical and 6 horizontal, plus a sawing unit in X, and a 10.3 kW (13.8 hp) cutter unit with HSK chuck running 1,000 to 24,000 rpm. Tools can be up to 80 mm (3.1 in) in diameter and 80 mm (3.1 in) long. Vector speed is 68 m/min.
