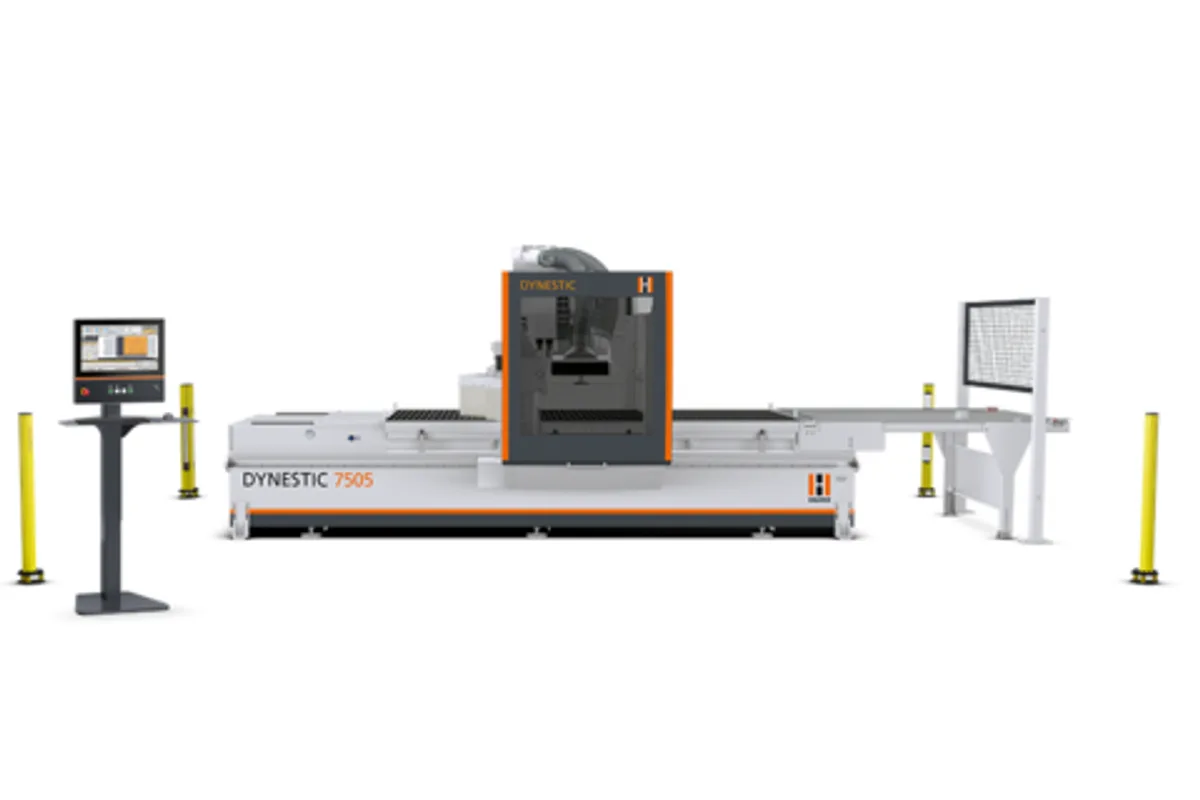

HOLZ-HER DYNESTIC 7505
Image: holzher.co.uk, HOLZ-HER
Key Specifications
Spindle Power
versions
machining length x
machining width y
vector speed
spindle power options
How much does the HOLZ-HER DYNESTIC 7505 cost?
Price estimate
We do not have a price for the HOLZ-HER DYNESTIC 7505 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HOLZ-HER DYNESTIC 7505 is the compact entry to the DYNESTIC nesting line: a gantry CNC machining centre with a flat high flow vacuum table, 1,580 mm (62.2 in) of machining dimension in Y and a choice of 3,100 mm (122.0 in) or 3,700 mm (145.7 in) in X.
In nesting, a full sheet lies on a porous protective panel and is cut into finished parts in one clamping, so the table decides which sheet formats the machine accepts. For sheets wider than 1,580 mm (62.2 in), the DYNESTIC 7507 carries 2,200 mm (86.6 in) in Y on the same equipment list. The table matrix is only 50 mm, which HOLZ-HER says gives maximum vacuum flux over the whole surface. Two 140 m3/h dry-running pumps are housed in the machine base to save floor space.
The standard spindle is an air-cooled 8 kW (10.7 hp) unit. Two alternatives are listed: 12 kW (16.1 hp) air-cooled or 10 kW (13.4 hp) liquid cooled, each running 1,000 to 24,000 rpm. Cabinet drilling is handled by drilling head L with 14 spindles (10 vertical, 4 horizontal) and a grooving saw in X; the XL head with 24 spindles is the upgrade. Tools sit in a 6-position pick-up changer built into the machine frame, expandable up to 12 changing stations.
There are two versions. The classic has no automation components and is loaded and cleared by hand. The push version adds an automatic discharge pusher with integrated evacuation and a discharge table with conveyor belt, so the finished nest is pushed off and the table cleaned for the next sheet. Vector speed is 100 m/min, and a light grid guards the work area.
Full Specifications
| Parameter | Value |
|---|---|
| Versions | classic; push |
| Machining Length X | 3,100 mm (122.0 in), 3,700 mm (145.7 in) |
| Machining Width Y | 1,580 mm (62.2 in) |
| Vector Speed | 100 m/min |
| Spindle Motor Power | 8 kW (10.7 hp), air-cooled |
| Spindle Power Options | 12 kW (16.1 hp), air-cooled, 1,000-24,000 rpm; 10 kW (13.4 hp), liquid cooled, 1,000-24,000 rpm |
| Drilling Head | Drilling head L: 14 spindles (10 V | 4 H) incl. sawing unit for grooving in X-direction |
| Drilling Head Options | Drilling head XL: 24 spindles (18 V | 6 H) incl. sawing unit for grooving in X-direction; double drilling spindle in Y-direction; vertical adapter with double positioning force |
| Workpiece Support | High flow nesting table with continuous vacuum field |
| Workpiece Support Options | 8-field vacuum, software controlled |
| Safety Equipment | Light grid |
| Vacuum Pump | 2 x 140 m3/h low maintenance, dry-running type vacuum pump |
| Vacuum Pump Options | Additional dry-running vacuum pump: 140 m3/h or 250 m3/h |
| Tool Changer | 6-position pick-up tool changer in machine frame |
| Tool Changer Options | Expandable up to 12 changing stations (max. 3 x 2 pieces); 1-position X/Y pick-up changer with tool cover |
| Automation Push Version | Automatic discharge pusher with integrated evacuation; discharge table with conveyor belt |
| Software | CAMPUS software machine licence package incl. aCADemy CAD/CAM module and CabinetControl Base |
| Software Options | CAMPUS Software office licence; BetterNest rectangular nesting; BetterNest free-form nesting |
Specifications sourced from holzher.co.uk — verified 2026-10-05
Strengths & Limitations
Strengths
- Two 140 m3/h dry-running vacuum pumps are standard and sit inside the machine base
- Drilling head L with 14 spindles and an X grooving saw is standard, so drilled and grooved cabinet parts come off the same nest
- The push version clears the finished nest onto a conveyor table and cleans the machine table automatically
- Choice of 8 kW (10.7 hp) and 12 kW (16.1 hp) air-cooled spindles or a 10 kW (13.4 hp) liquid cooled spindle
- The 6-position tool changer in the frame can be expanded up to 12 changing stations
Limitations
- Y dimension of 1,580 mm (62.2 in) rules out wider sheet formats; the DYNESTIC 7507 offers 2,200 mm (86.6 in)
- Longest X is 3,700 mm (145.7 in); the DYNESTIC 7532 goes to 6,250 mm (246.1 in)
- Only 6 tool positions as standard
- Both versions are loaded by hand: the charging and lifting tables are listed for the DYNESTIC 7532, not for this model
Best For
Frequently Asked Questions
01
The machining dimensions are 1,580 mm (62.2 in) in Y and either 3,100 mm (122.0 in) or 3,700 mm (145.7 in) in X, depending on the length ordered. The table is a high flow nesting table with a continuous vacuum field; an 8-field, software-controlled vacuum layout is optional.
02
The classic version has no automation components. The push version adds an automatic discharge pusher with integrated evacuation and a discharge table with conveyor belt: it pushes the finished nest onto the belt and cleans the machine table for the next panel. Spindle, drilling head and table are the same on both.
03
Six as standard, in a pick-up tool changer integrated in the machine frame and protected by a pneumatically controlled cover. It can be expanded up to 12 changing stations, and a 1-position X/Y pick-up changer with tool cover is offered for the angle gear. The drilling head adds 14 spindles of its own.
04
The standard cutter unit is 8 kW (10.7 hp), air-cooled. Options are a 12 kW (16.1 hp) air-cooled spindle and a 10 kW (13.4 hp) liquid cooled spindle, both with a 1,000 to 24,000 rpm range. Vector speed is 100 m/min with any of them.
