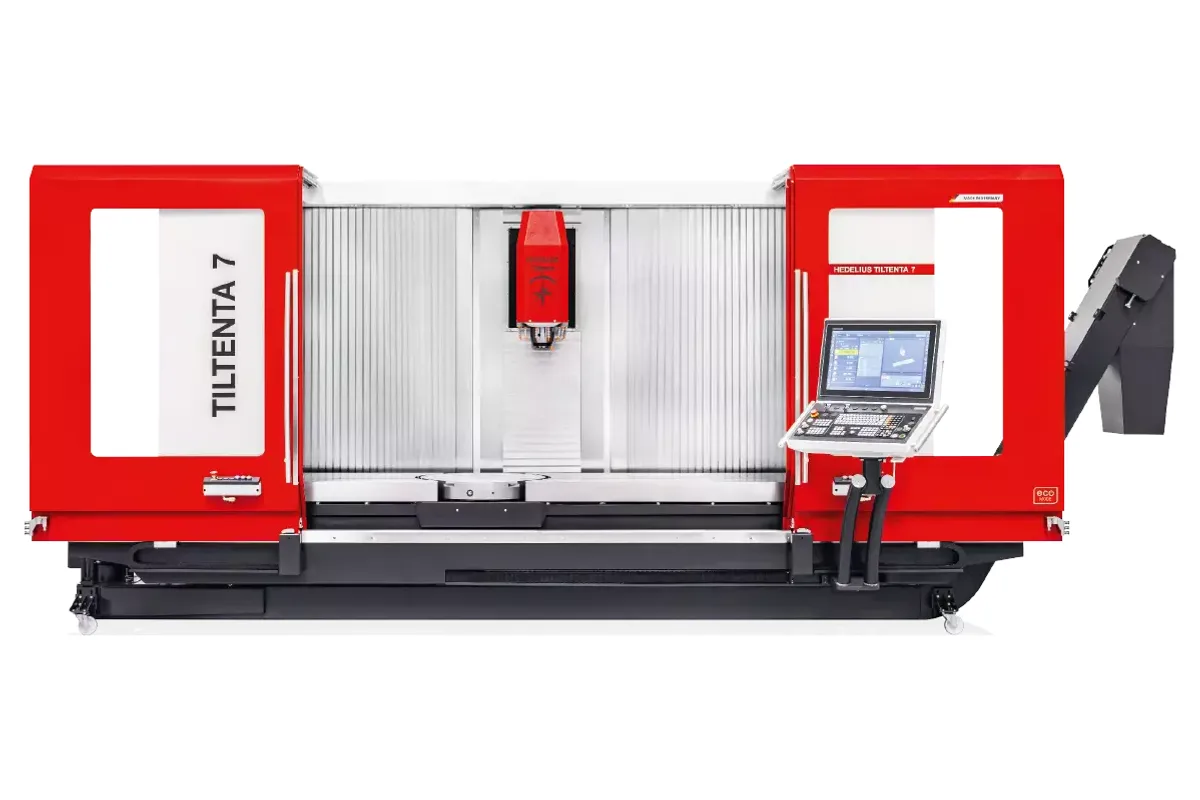

Hedelius TILTENTA 7-2600 NEO
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 7-2600 NEO cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 7-2600 NEO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Hedelius calls the idea behind the TILTENTA 7-2600 NEO a crossover concept: a long fixed table for big workpieces and a swivelling spindle with an integrated NC rotary table for 5-sided work, in one travelling column machine. X travel is 2,600 mm (102.4 in) with the spindle vertical and 2,030 mm with it horizontal. Y is 700 mm and Z is 695 / 800 mm (vertical / horizontal).
Two jobs show what that means. The first is end machining of a long workpiece: the part lies along the 3,080 x 700 mm table, the spindle swivels to horizontal and works on the end face. The second is complete 5-side machining of a block on the rotary table, with the spindle anywhere between -98° and +98°. Neither needs a second machine, and both can sit on the table at the same time.
The rotary table has a Ø 700 mm faceplate with seven 18 mm T-slots and a workpiece limit of 800 kg (1,764 lb). The fixed table carries 2,500 kg (5,511 lb). Hedelius lists 5-axis machining in oscillation mode as possible, and the data sheet gives pendulum operation as 1,300 x 840 mm. The two areas are unequal, presumably because the rotary table occupies one of them.
Three spindles are in the data sheet: 22 kW and 117 Nm or 29 kW and 183 Nm at 14,000 rpm in SK40 / BT40, and 35 kW at 18,000 rpm in HSK A63. The magazine holds 45 tools as standard, with ca. 10.5 s chip to chip. Swivel accuracy and indexing accuracy each carry the value < ±5 in the data sheet's angular notation. The machine weighs 12,000 kg (26,455 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 / 2,030 mm (102.4 / 79.9 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 695 / 800 mm (27.4 / 31.5 in) (V/H: vertical / horizontal) |
| Pendulum Operation | 1,300 x 840 mm (51.2 x 33.1 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Centre of Rotation | 285 mm (11.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,000 Nm (1,475 lb-ft) |
| Spindle Swivel Torque Clamped | 2,500 Nm (1,844 lb-ft) |
| Rotary Table Faceplate | Ø 700 mm (Ø 27.6 in) |
| Interference Circle Diameter | 1,050 mm (41.3 in) |
| Rotary Table Rotational Speed | 15 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 2,200 Nm (1,623 lb-ft) |
| Rotary Table Holding Torque | 2,900 Nm (2,139 lb-ft) |
| Rotary Table Load | 800 kg (1,764 lb) |
| Spindle Distance | 20 - 715 mm (0.8 - 28.1 in) |
| Table Size | 3,080 x 700 mm (121.3 x 27.6 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Max Table Load | 2,500 kg (5,511 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 25,000 N (5,620 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 45 / 115 / 160 / 225 / 309 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 mm (13.0 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 10.5 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 12,000 kg (26,455 lb) |
| Transport Height | 2,650 mm (104.3 in) |
| Transport Width | 3,150 / 2,910 mm (124.0 / 114.6 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Long 3,080 x 700 mm table for 2,500 kg plus an integrated NC rotary table for 800 kg in one work area
- Spindle swivels to horizontal for end machining of long workpieces
- 5-axis machining possible in oscillation mode, with pendulum areas of 1,300 x 840 mm
- Swivel torque of 2,000 Nm, with 2,500 Nm clamped
- 45 tools as standard, extendable to a theoretical 309
Limitations
- X travel with the spindle horizontal is 2,030 mm, not the full 2,600 mm
- Vertical Z travel is 695 mm, less than the 800 mm available horizontally
- Rotary table speed is 15 min-1
- The pendulum areas are unequal at 1,300 and 840 mm
Best For
Frequently Asked Questions
01
The combination of a continuously swivelling main spindle and a long machine table with an integrated NC rotary table. Hedelius says it allows the mixed production of large workpieces and precise 5-axis machining in one machine, from end processing of long workpieces to 5-side complete processing.
02
Vertical: X 2,600 mm and Z 695 mm. Horizontal: X 2,030 mm and Z 800 mm. Y is 700 mm in both cases. The spindle's centre of rotation is 285 mm and the spindle distance to the table is 20 to 715 mm.
03
The data sheet lists pendulum operation as 1,300 x 840 mm, two work areas of different length. Hedelius states that 5-axis machining is possible in oscillation mode, so one area can hold the rotary table set-up while the other is loaded.
04
A Ø 700 mm faceplate, an interference circle of 1,050 mm, a rotational speed of 15 min-1, 2,200 Nm of torque and 2,900 Nm of holding torque. Workpiece weight is 800 kg (1,764 lb) at most, and axial runout is below 0.015 mm.
More from Hedelius
Other 5-Axis Machining Centers

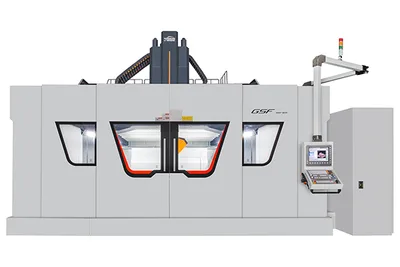

Vision Wide GSF-2232
