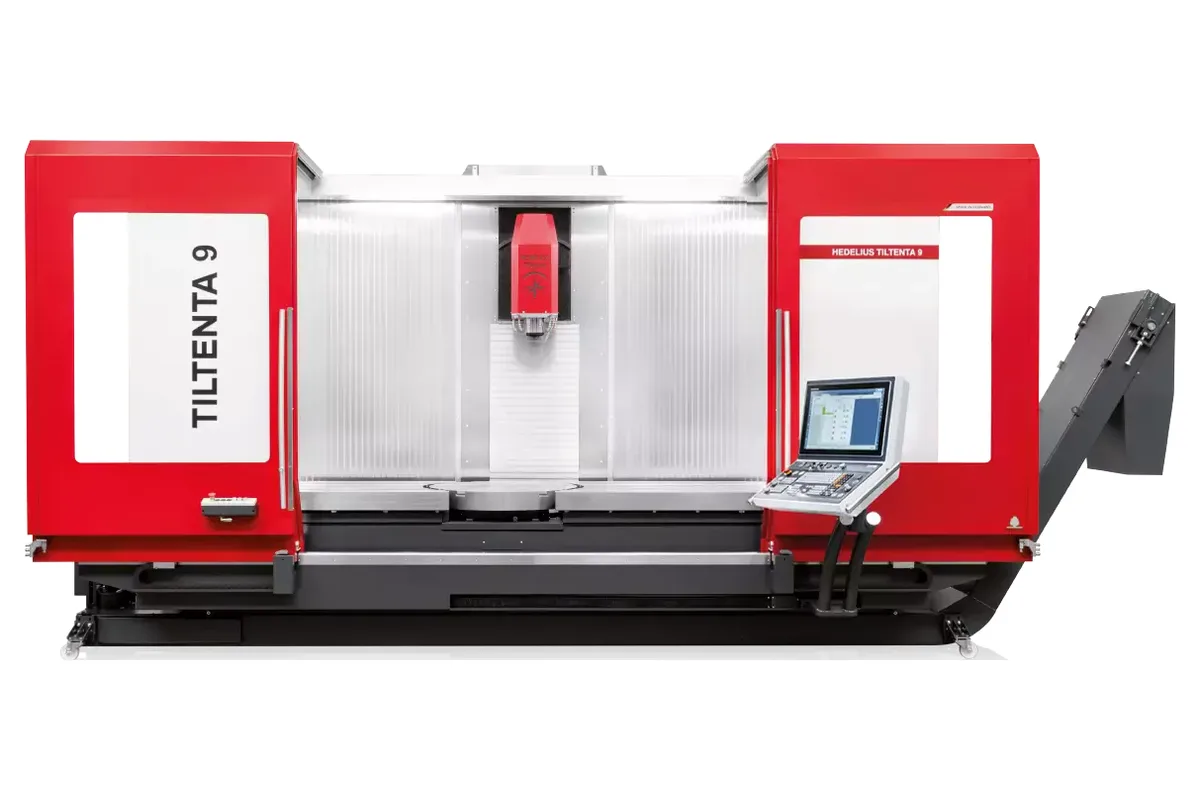

Hedelius TILTENTA 9-2600
Image: hedelius.de, Hedelius
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Hedelius TILTENTA 9-2600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 9-2600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 9-2600 is the shortest machine of the TILTENTA 9 series, a travelling column machining centre with a swivelling main spindle and travel paths of 2,600 x 900 x 900 mm (102.4 x 35.4 x 35.4 in). An NC rotary table with a Ø 900 mm face plate can be integrated into the fixed machine table, which makes it a 5-axis machine with four axes in the tool and one in the workpiece.
Compared with the TILTENTA 7 below it, this series adds Y and Z travel and a wider choice of spindles. Five are shown on the product page: SK 40 / BT 40 at 14,000 rpm with 117 Nm and 22 kW or with 185 Nm and 37 kW, and HSK A63 at 15,000 rpm with 217 Nm and 50 kW, at 18,000 rpm with 136 Nm and 35 kW, or at 24,000 rpm with 123 Nm and 30 kW. The spindle swivels from -5° to +98°, or from -98° to +98°.
The fixed table has a contact surface of 3,080 x 900 mm and takes up to 3,000 kg (6,614 lb). For the rotary table the page gives 1,200 / 1,800 kg, and Hedelius explains the higher figure: an integrated heavy-duty rotary table with a table load of up to 1800 kg is optional. The collision area diameter is Ø 1,250 mm. The enclosure is complete, yet Hedelius states that unrestricted crane loading is possible.
On the control side, a Heidenhain TNC with touch display, full keyboard and rapid motion potentiometer is standard, and a Sinumerik ONE is available as an option. The magazine holds 60 tools as standard, with capacities up to 324 listed. Hedelius links no data sheet for this series on the product page, so weight, feed force and tool limits have to be requested.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Motor Power | 22 / 37 / 50 / 35 / 30 kW (29.5 / 49.6 / 67.1 / 46.9 / 40.2 hp) (spindle options) |
| Spindle Speed | 14,000 / 15,000 / 18,000 / 24,000 min-1 (spindle options) |
| Spindle Taper | SK 40, BT 40, HSK A63 |
| Tool Capacity | 60 / 130 / 175 / 240 / 324 |
| Table Size | 3,080 x 900 mm (121.3 x 35.4 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| Rotary Table Faceplate | Ø 900 mm (Ø 35.4 in) |
| Interference Circle Diameter | Ø 1,250 mm (Ø 49.2 in) |
| Rotary Table Load | 1,200 / 1,800 kg (2,646 / 3,968 lb) |
| Spindle Option 1 | SK 40 / BT 40, CELOX 14,000 1/min, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp) |
| Spindle Option 2 | SK 40 / BT 40, CELOX 14,000 1/min, 185 Nm (136 lb-ft), 37 kW (49.6 hp) |
| Spindle Option 3 | HSK A63, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp) |
| Spindle Option 4 | HSK A63, CELOX 18,000 1/min, 136 Nm (100 lb-ft), 35 kW (46.9 hp) |
| Spindle Option 5 | HSK A63, CELOX 24,000 1/min, 123 Nm (90.7 lb-ft), 30 kW (40.2 hp) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Swivelling main spindle with a range of -5° to +98° or -98° to +98°, four axes in the tool
- Five spindle choices, up to 217 Nm and 50 kW or up to 24,000 rpm
- Fixed table with a 3,080 x 900 mm contact surface for 3,000 kg (6,614 lb)
- Fully enclosed work area that still allows unrestricted crane loading
- 60 tools as standard and a Heidenhain TNC control with touch display as standard
Limitations
- The integrated rotary table is described as optional, and the 1,800 kg version is a further heavy-duty option
- No data sheet is linked on the product page: weight, feed force and tool dimensions are not published there
- The page lists no oscillation mode for this length
- X travel of 2,600 mm is the shortest in the TILTENTA 9 series
Best For
Frequently Asked Questions
01
Travel paths are 2,600 x 900 x 900 mm in X, Y and Z. The fixed machine table has a contact surface of 3,080 x 900 mm and a maximum load of 3,000 kg. The rotary table face plate is Ø 900 mm, with a collision area diameter of Ø 1,250 mm.
02
The page gives a maximum rotary table load of 1,200 / 1,800 kg. Hedelius lists the integrated heavy-duty rotary table, with a table load of up to 1800 kg, as optional, so the lower figure is the one to assume unless the heavy-duty table is ordered.
03
Hedelius states that the machine is equipped with a Heidenhain TNC control system with touch display, full keyboard and rapid motion potentiometer as standard, and that a Sinumerik ONE is available as an option.
04
SK 40 / BT 40 at 14,000 rpm with 117 Nm and 22 kW or with 185 Nm and 37 kW; HSK A63 at 15,000 rpm with 217 Nm and 50 kW, at 18,000 rpm with 136 Nm and 35 kW, or at 24,000 rpm with 123 Nm and 30 kW.
05
Yes. Hedelius describes the travelling column machining centre as fully enclosed while also allowing unrestricted crane loading. With a fixed table rated for up to 3,000 kg, heavy parts can be set down directly without a moving table to protect.
