Hedelius TILTENTA 10-4600

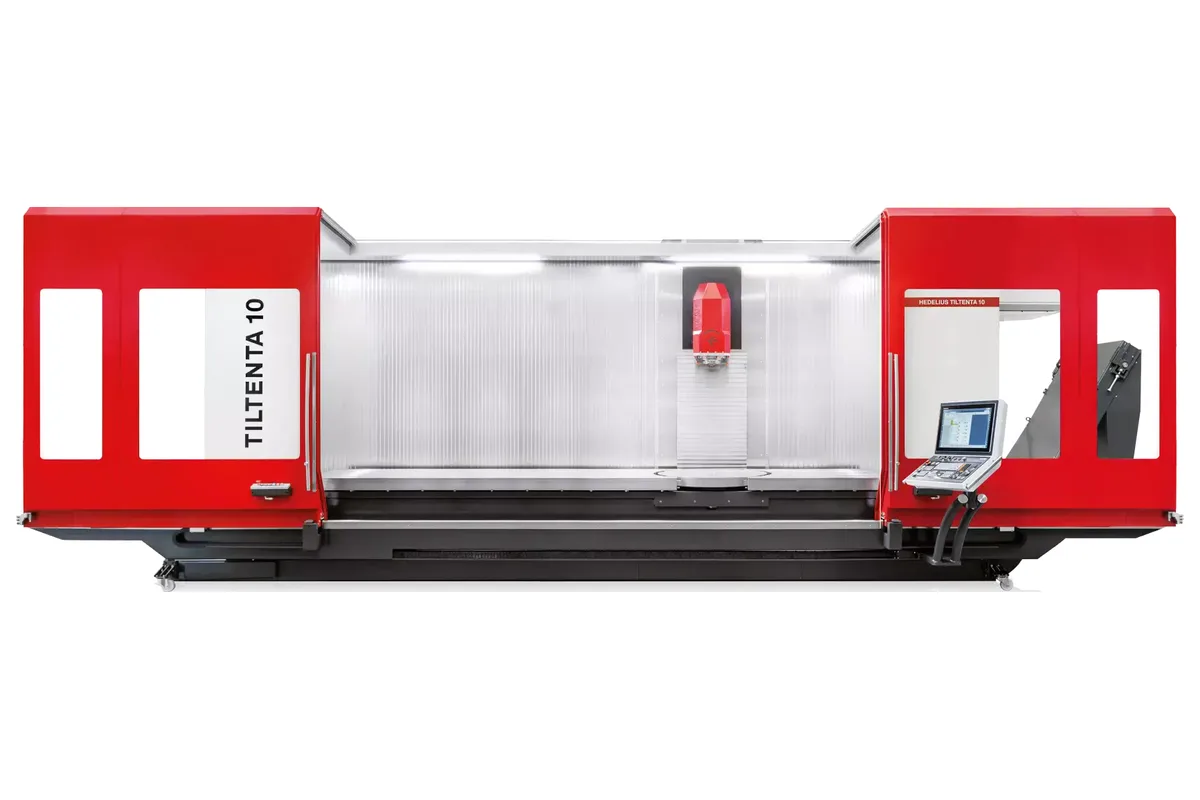

Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 10-4600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 10-4600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
"The travel path in the X-axis is an essential criterion when selecting the right machine," Hedelius writes about the TILTENTA 10-4600, and the reasoning is sound. A travelling column machine like this one is bought to do three things: 5-axis work on cubic parts, vertical machining of long parts, and machining from the end faces. Each makes its own demand on X, and at 4,600 mm (181.1 in) vertical and 3,760 mm horizontal this model covers all three generously.
It is also the first TILTENTA 10 length with pendulum operation in the data sheet, at 1,965 x 1,965 mm. Hedelius lists oscillating machining for it and fits motor-activated automatic doors. One work area can hold the integrated rotary table for 5-axis parts while the other takes plain 3-axis fixtures.
The rest is SK50 heavy machining. The swivel spindle has 300 Nm and 50 kW, with the BIG PLUS duplex contact system as standard and HSK A100 optional, at up to 8,000 or 12,000 rpm. Its swivel head is clamped hydraulically at 10,000 Nm. Y travel is 1,000 mm, Z is 1,000 / 1,165 mm, and feed force is 34,000 N.
Loads are 6,500 kg (14,330 lb) on the fixed 5,080 x 1,000 mm table and 1,600 kg on the rotary table, or 2,200 kg with the optional version. The faceplate is Ø 1,000 mm. A 40-tool magazine is standard, extendable to give access to 192 tools up to 400 mm long. The machine weighs 29,500 kg (65,035 lb), stands 3,240 mm high for transport, and takes ca. 15 s chip to chip.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,600 / 3,760 mm (181.1 / 148.0 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 1,000 / 1,165 mm (39.4 / 45.9 in) (V/H: vertical / horizontal) |
| Pendulum Operation | 1,965 x 1,965 mm (77.4 x 77.4 in) |
| Spindle Option 1 | SK50 / BT50 / HSK A100, 8,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Option 2 | SK50 / BT50 / HSK A100, 12,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Centre of Rotation | 420 mm (16.5 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,400 Nm (1,770 lb-ft) |
| Spindle Swivel Torque Clamped | 10,000 Nm (7,376 lb-ft) |
| Rotary Table Faceplate | Ø 1,000 mm (Ø 39.4 in) |
| Interference Circle Diameter | 1,450 mm (57.1 in) |
| Rotary Table Rotational Speed | 6.25 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 4,200 Nm (3,098 lb-ft) |
| Rotary Table Holding Torque | 12,000 Nm (8,851 lb-ft) |
| Rotary Table Load | 1,600 / 2,200 kg (3,527 / 4,850 lb) (optional) |
| Spindle Distance | 20 - 1,020 mm (0.8 - 40.2 in) |
| Table Size | 5,080 x 1,000 mm (200.0 x 39.4 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Max Table Load | 6,500 kg (14,330 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 34,000 N (7,643 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 40 / 192 |
| Max Tool Diameter (full magazine) | 100 / 140 mm (3.9 / 5.5 in); 140 mm with free adjoining areas (option) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 12 kg (26 lb); other weights on request |
| Chip to Chip Time | ca. 15 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 29,500 kg (65,035 lb) |
| Transport Height | 3,240 mm (127.6 in) |
| Transport Width | 4,230 / 3,940 mm (166.5 / 155.1 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,600 mm of vertical X travel and 3,760 mm horizontal for end-face work
- Pendulum operation with two 1,965 x 1,965 mm work areas
- Motor-activated automatic doors
- SK50 BIG PLUS spindle with 300 Nm and 50 kW, swivel head clamped at 10,000 Nm
- Fixed table for 6,500 kg (14,330 lb) plus a rotary table for 1,600 / 2,200 kg
Limitations
- 29,500 kg (65,035 lb) machine weight
- 40 tools as standard; access to 192 is an extension
- The 2,200 kg rotary table is optional
- Maximum 12,000 rpm limits small tools and aluminium finishing
Best For
Frequently Asked Questions
01
Hedelius notes that a travelling column machining centre can produce cubic workpieces in 5 axes and also machine long parts vertically or from the end faces, which makes the X travel an essential selection criterion. This model offers 4,600 mm vertical and 3,760 mm horizontal.
02
Yes. The data sheet lists pendulum operation as 1,965 x 1,965 mm, and Hedelius lists oscillating machining among the features, together with motor-activated automatic doors for ease of use.
03
The fixed table, with a clamping area of 5,080 x 1,000 mm, carries 6,500 kg (14,330 lb). The integrated heavy-duty rotary table carries 1,600 kg, or 2,200 kg as an option, on a Ø 1,000 mm faceplate with 12,000 Nm of holding torque.
04
300 Nm and 50 kW at up to 8,000 or 12,000 rpm, in SK50 BIG PLUS as standard or HSK A100 as an option. The swivel range is -5° to +98° or -98° to +98°, with 2,400 Nm of swivel torque and 10,000 Nm clamped.
