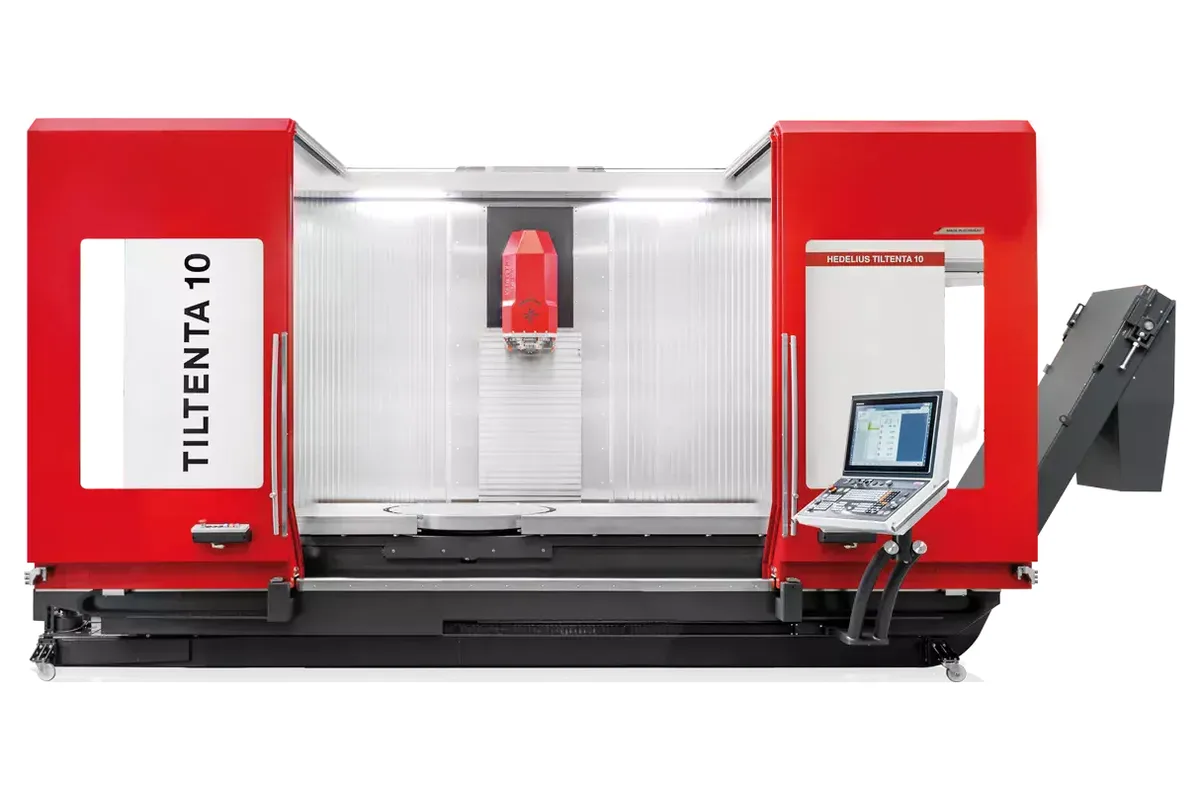

Hedelius TILTENTA 10-2600
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 10-2600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 10-2600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 10-2600 is the short version of the maker's SK50 swivel-spindle machine: a 5-axis travelling column machining centre with a 300 Nm, 50 kW spindle, an integrated heavy-duty rotary table option for workpieces up to 2,200 kg, and an X travel of 2,600 mm (102.4 in). Hedelius aims it at heavy-duty chipping in machine and tool construction where space is at a premium.
Short is relative, and on this model it has a consequence worth knowing. With the spindle vertical the X travel is 2,600 mm; with the spindle horizontal it is 1,730 mm, because the larger SK50 head has a centre of rotation of 420 mm. Y travel is 1,000 mm and Z is 1,000 / 1,165 mm (vertical / horizontal). The head swivels from -5° to +98° or from -98° to +98° and is clamped hydraulically, with 10,000 Nm when clamped against 2,400 Nm of swivel torque.
The spindle uses the SK50 BIG PLUS duplex contact system as standard, with HSK A100 as the option. Hedelius explains that simultaneous taper and face contact gives a very stable connection, while the spindle remains compatible with common SK50 holders. Top speed is 8,000 or 12,000 rpm, and the rating in E335/St60-2 is 1,050 cm3/min of milling.
The rotary table has a Ø 1,000 mm faceplate, 4,200 Nm of torque and a holding torque of 12,000 Nm; its load is 1,600 / 2,200 kg, the higher figure optional. The fixed table, 3,080 x 1,000 mm, takes 4,500 kg (9,921 lb). Tools up to 400 mm long and 12 kg come from a 40-place magazine with access to up to 192. Machine weight is 22,500 kg (49,603 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 / 1,730 mm (102.4 / 68.1 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 1,000 / 1,165 mm (39.4 / 45.9 in) (V/H: vertical / horizontal) |
| Spindle Option 1 | SK50 / BT50 / HSK A100, 8,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Option 2 | SK50 / BT50 / HSK A100, 12,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Centre of Rotation | 420 mm (16.5 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,400 Nm (1,770 lb-ft) |
| Spindle Swivel Torque Clamped | 10,000 Nm (7,376 lb-ft) |
| Rotary Table Faceplate | Ø 1,000 mm (Ø 39.4 in) |
| Interference Circle Diameter | 1,450 mm (57.1 in) |
| Rotary Table Rotational Speed | 6.25 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 4,200 Nm (3,098 lb-ft) |
| Rotary Table Holding Torque | 12,000 Nm (8,851 lb-ft) |
| Rotary Table Load | 1,600 / 2,200 kg (3,527 / 4,850 lb) (optional) |
| Spindle Distance | 20 - 1,020 mm (0.8 - 40.2 in) |
| Table Size | 3,080 x 1,000 mm (121.3 x 39.4 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Max Table Load | 4,500 kg (9,921 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 34,000 N (7,643 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 40 / 192 |
| Max Tool Diameter (full magazine) | 100 / 140 mm (3.9 / 5.5 in); 140 mm with free adjoining areas (option) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 12 kg (26 lb); other weights on request |
| Chip to Chip Time | ca. 15 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 22,500 kg (49,603 lb) |
| Transport Height | 3,240 mm (127.6 in) |
| Transport Width | 4,230 / 3,940 mm (166.5 / 155.1 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- SK50 BIG PLUS spindle with 300 Nm and 50 kW in a 5-axis swivel-spindle machine
- Hydraulically clamped swivel head: 10,000 Nm clamped
- Integrated rotary table with Ø 1,000 mm faceplate, 12,000 Nm holding torque and up to 2,200 kg (optional)
- Y travel of 1,000 mm and Z travel of 1,000 / 1,165 mm
- Fixed 3,080 x 1,000 mm table for 4,500 kg (9,921 lb)
Limitations
- Horizontal X travel is only 1,730 mm against 2,600 mm vertical
- No pendulum operation is listed for this length
- Rotary table speed is 6.25 min-1
- 40 tools as standard and ca. 15 s chip to chip; 22,500 kg to install
Best For
Frequently Asked Questions
01
An SK50 BIG PLUS duplex contact spindle as standard, with HSK A100 optional. The data sheet lists it with 300 Nm and 50 kW at up to 8,000 rpm or up to 12,000 rpm, rated at 1,050 cm3/min milling and a Ø 60 mm drill in E335/St60-2.
02
X is 2,600 mm with the spindle vertical and 1,730 mm horizontal. Y is 1,000 mm. Z is 1,000 mm vertical and 1,165 mm horizontal. The spindle distance to the table is 20 to 1,020 mm and the feed force is up to 34,000 N.
03
The integrated rotary table has a workpiece weight limit of 1,600 / 2,200 kg, the 2,200 kg version being optional. Its faceplate is Ø 1,000 mm, the interference circle 1,450 mm, the torque 4,200 Nm and the holding torque 12,000 Nm.
04
A spindle interface with simultaneous taper and face contact. Hedelius says it ensures an extremely stable connection between the tool fitting and the spindle, and that the spindle is at the same time compatible with all common SK50 holders.
