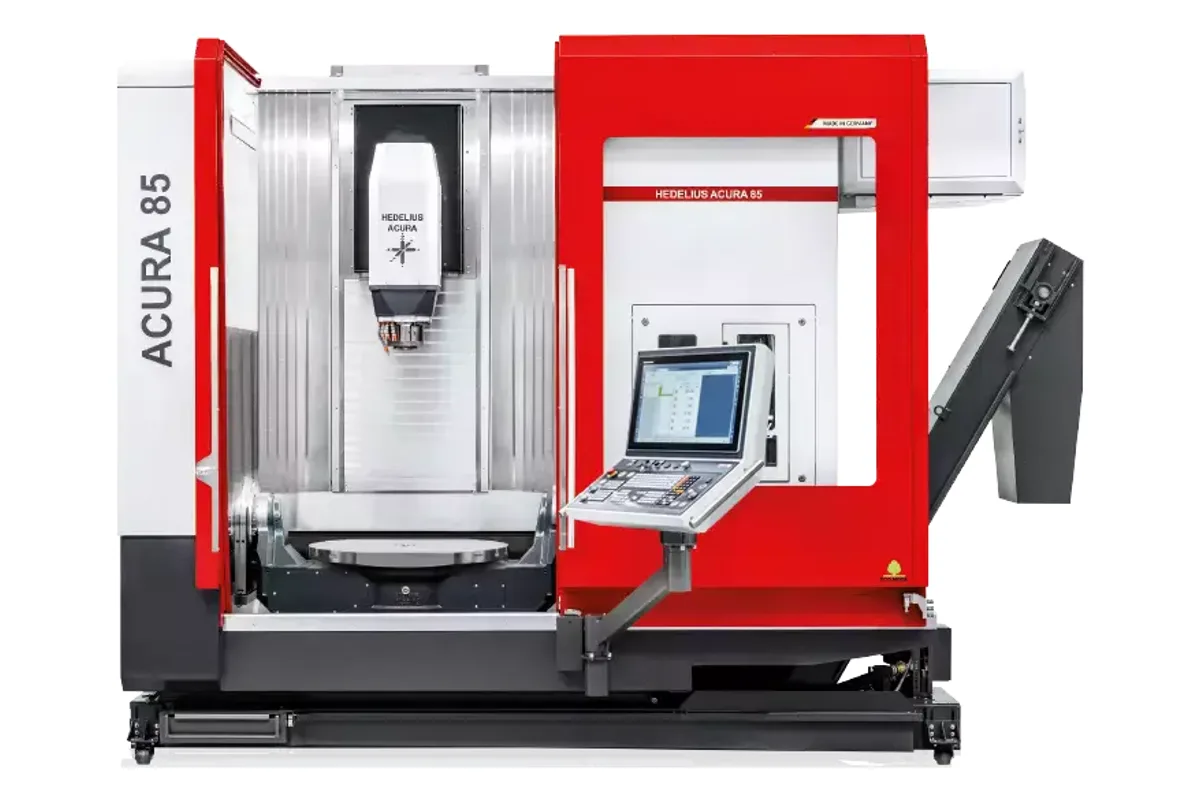

Hedelius ACURA 85
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius ACURA 85 cost?
Price estimate
We do not have a price for the Hedelius ACURA 85 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius ACURA 85 tops the ACURA line: a 5-axis machining centre with a rotating/swivelling table for workpieces up to 1,000 kg (2,205 lb). Travels are 900 mm (35.4 in) in X, 700 mm (27.6 in) in Z and 850 / 600 mm in Y for horizontal and vertical, and the table measures Ø 850 x 750 mm inside a Ø 900 mm interference circle.
Everything about the table is scaled for that load. Swivel torque is 3,400 Nm with a 5,000 Nm clamp, the dividing torque is 1,500 Nm, and the T-slots grow to 18 mm, seven of them at 100 mm spacing. Rotation is 0 – 20 min-1 only, so there is no faster table drive listed here as there is on the smaller ACURA models. Maximum feed force is 23,000 N, well above the rest of the range, and the axes still move at 40 m/min.
For the spindle, the data sheet lists SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW or with 185 Nm and 37 kW, and HSK A63 at 18,000 rpm with 136 Nm and 35 kW or at 14,000 rpm with 22 kW. The product page also names an HSK A63 spindle with 217 Nm and 50 kW at 15,000 rpm and one at 24,000 rpm with 30 kW.
The magazine holds 80 tools as standard and is operated from the front. Tool length can be 330 or 390 mm depending on the magazine, and chip-to-chip time is ca. 9.7 s. Plan the installation early. The machine weighs 11,000 kg (24,250 lb), with a transport height of 2,912 / 3,032 mm and a width of 3,480 / 3,350 mm. As on the whole range, 5-axis simultaneous milling is optional.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 900 mm (35.4 in) |
| Y Axis Travel | 850 / 600 mm (33.5 / 23.6 in) (H/V: horizontal / vertical) |
| Z Axis Travel | 700 mm (27.6 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Distance | 135 / 120 (75 / 60) mm (5.3 / 4.7 (3.0 / 2.4) in) (H/V: horizontal / vertical) |
| Table Size | Ø 850 x 750 mm (Ø 33.5 x 29.5 in) |
| Interference Circle Diameter | Ø 900 mm (Ø 35.4 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Table Swivel Range | +30° – -115° |
| Table Swivel Time 90 Deg | 1.2 s |
| Table Swivel Accuracy | < ±10" |
| Table Rotational Speed | 0 – 20 min-1 |
| Indexing Accuracy | < ±6" |
| Axial Runout Accuracy | 0.015 mm (0.0006 in) |
| Table Swivel Torque | 3,400 Nm (2,508 lb-ft) |
| Table Swivel Clamping Force | 5,000 Nm (3,688 lb-ft) |
| Table Dividing Torque | 1,500 Nm (1,106 lb-ft) |
| Table Dividing Clamping Force | 3,000 Nm (2,213 lb-ft) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 23,000 N (5,170 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 80 / 150 / 195 / 260 / 344 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 9.7 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm (ISO 230-2, X, Y, Z) |
| Machine Weight | 11,000 kg (24,250 lb) |
| Transport Height | 2,912 / 3,032 mm (114.6 / 119.4 in) |
| Transport Width | 3,480 / 3,350 mm (137.0 / 131.9 in) |
| Marathon Automation Interface | MARATHON SR422: no; MARATHON SR518: yes; MARATHON PL406: yes; MARATHON RZ430: no |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø 850 x 750 mm table for 1,000 kg (2,205 lb) with seven 18 mm T-slots
- Feed force of up to 23,000 N with 40 m/min feeds on X, Y and Z
- 3,400 Nm of swivel torque and a 5,000 Nm swivel clamp for heavy parts off centre
- 80-place tool magazine as standard, operated from the front
- SK40 / BT40 spindle with 185 Nm and 37 kW at 14,000 rpm
Limitations
- Table rotation is limited to 0 – 20 min-1
- 11,000 kg (24,250 lb) and a transport width of up to 3,480 mm call for planning of the route and the floor
- 5-axis simultaneous milling is an option, not standard
- Tool weight stays at 5 kg even on this size of machine; other weights are on request
Best For
Frequently Asked Questions
01
The table is Ø 850 x 750 mm and takes 1,000 kg (2,205 lb). The interference circle is Ø 900 mm. Travels are 900 mm in X, 700 mm in Z and 850 / 600 mm in Y (horizontal / vertical), with a swivel range of +30° to -115°.
02
In the data sheet: SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW, SK40 / BT40 at 14,000 rpm with 185 Nm and 37 kW, HSK A63 at 18,000 rpm with 136 Nm and 35 kW, and HSK A63 at 14,000 rpm with 22 kW. The product page adds HSK A63 at 15,000 rpm with 217 Nm and 50 kW, and at 24,000 rpm with 30 kW.
03
The data sheet gives a maximum tool length of 330 / 390 mm, a maximum diameter of 75 mm with all places occupied (100 or 125 mm with free adjoining places, as an option) and a tool weight of 5 kg, with other weights on request. Theoretical capacities are 80 / 150 / 195 / 260 / 344.
04
Weight and access. The standard machine weighs 11,000 kg (24,250 lb). Hedelius gives a delivery/transport height of 2,912 / 3,032 mm and a width of 3,480 / 3,350 mm. Check doors, crane capacity and the floor against those figures before ordering.
More from Hedelius
Other 5-Axis Machining Centers
DMG Mori DMU 95 monoBLOCK
Mazak VARIAXIS j-500
DMG Mori DMU 125 P

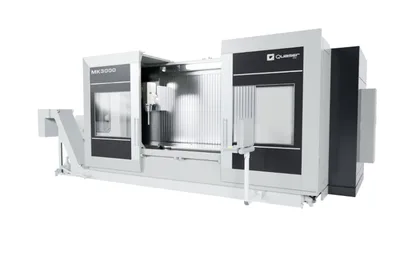

Quaser MK3000 (#50)
