Hedelius TILTENTA 9-2600 EL
Image: hedelius.de, Hedelius
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Hedelius TILTENTA 9-2600 EL cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 9-2600 EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

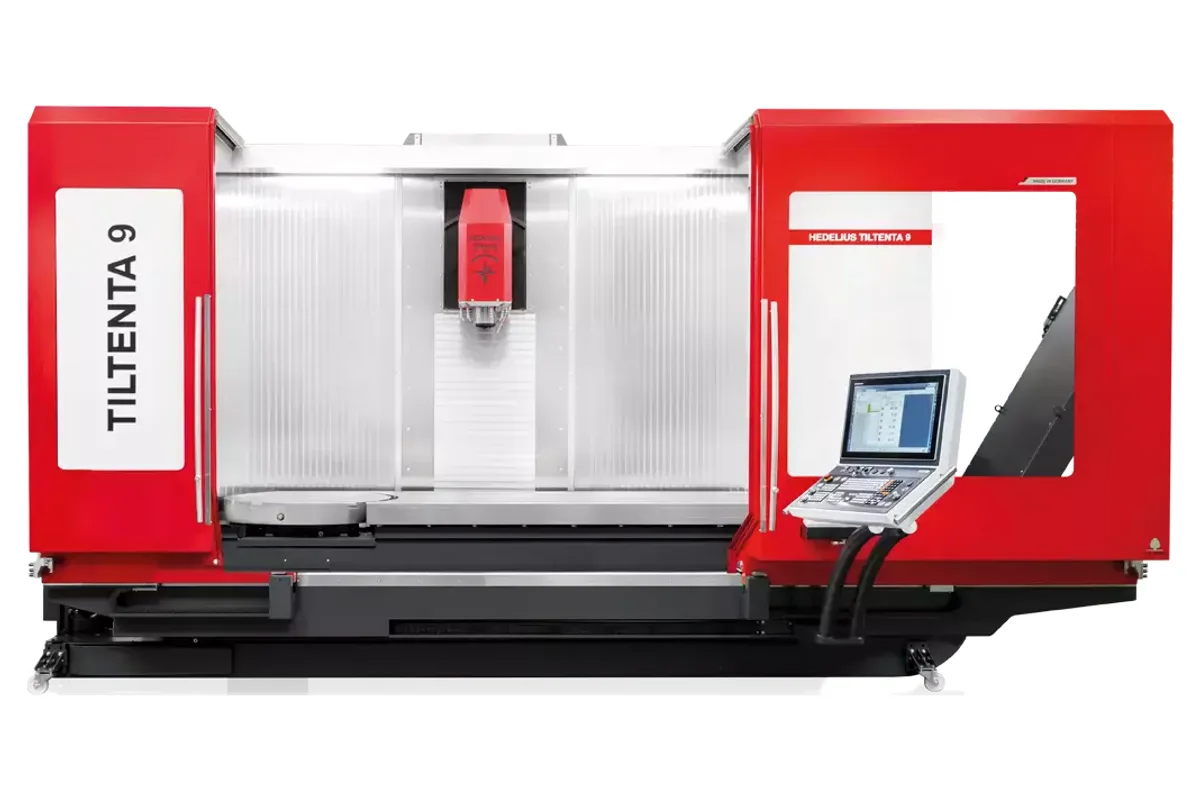

The Hedelius TILTENTA 9-2600 EL is a swivel-spindle 5-axis machining centre laid out for a handling system on its left flank. A lateral loading hatch and an NC rotary table offset to the left let the automation reach the rotary table directly, and an interface to manufacturer-independent automation leaves the choice of system open. Hedelius describes it as ideal for the fully automated production of single parts and series.
Moving the rotary table sideways shortens the plain table a little. The contact surface is 2,840 x 900 mm, with a fixed table load of 3,000 kg (6,614 lb). Travel paths are unchanged from the standard machine at 2,600 x 900 x 900 mm, and Hedelius highlights the 900 mm Y travel as generous for the class. The rotary table has a Ø 900 mm face plate, a collision area diameter of Ø 1,250 mm, and a maximum load given as 1,200 / 1,800 kg.
Those rotary table figures set the size of pallet and part the automation can deliver. They are notably higher than a swivel-table machine of similar footprint would allow, because here the table only rotates and the tilting is done by the spindle, from -98° to +98°.
Unattended work leans on the spindle and magazine. Five spindles are listed, from SK 40 / BT 40 with 22 kW at 14,000 rpm to HSK A63 with 217 Nm and 50 kW at 15,000 rpm or 30 kW at 24,000 rpm. Sixty tools are standard and the capacities continue to 130, 175, 240 and 324. Hedelius links no data sheet for this variant, so the opening size, weight and tool limits should be requested with the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Motor Power | 22 / 37 / 50 / 35 / 30 kW (29.5 / 49.6 / 67.1 / 46.9 / 40.2 hp) (spindle options) |
| Spindle Speed | 14,000 / 15,000 / 18,000 / 24,000 min-1 (spindle options) |
| Spindle Taper | SK 40, BT 40, HSK A63 |
| Tool Capacity | 60 / 130 / 175 / 240 / 324 |
| Table Size | 2,840 x 900 mm (111.8 x 35.4 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| Rotary Table Faceplate | Ø 900 mm (Ø 35.4 in) |
| Interference Circle Diameter | Ø 1,250 mm (Ø 49.2 in) |
| Rotary Table Load | 1,200 / 1,800 kg (2,646 / 3,968 lb) |
| Spindle Option 1 | SK 40 / BT 40, CELOX 14,000 1/min, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp) |
| Spindle Option 2 | SK 40 / BT 40, CELOX 14,000 1/min, 185 Nm (136 lb-ft), 37 kW (49.6 hp) |
| Spindle Option 3 | HSK A63, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp) |
| Spindle Option 4 | HSK A63, CELOX 18,000 1/min, 136 Nm (100 lb-ft), 35 kW (46.9 hp) |
| Spindle Option 5 | HSK A63, CELOX 24,000 1/min, 123 Nm (90.7 lb-ft), 30 kW (40.2 hp) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Lateral loading hatch and left-offset NC rotary table for automation from the left
- Interface to manufacturer-independent automation
- Rotary table with Ø 900 mm face plate and a load of 1,200 / 1,800 kg
- Y travel of 900 mm and X travel of 2,600 mm
- Tool capacities from 60 up to 324
Limitations
- Hedelius gives no dimensions for the loading hatch on the product page
- No data sheet for this variant: weight, feed force and tool limits are unpublished
- Contact surface of the fixed table is 2,840 x 900 mm because the rotary table is offset
- No oscillation mode is listed
Best For
Frequently Asked Questions
01
Through a lateral loading hatch and an NC rotary table offset to the left. Hedelius says this lets the machine be integrated into automation solutions, and the interface is described as manufacturer-independent, so different pallet or robot systems can be attached.
02
Travel paths of 2,600 x 900 x 900 mm (X/Y/Z), a contact surface of 2,840 x 900 mm, a fixed table load of up to 3,000 kg, a rotary table face plate of Ø 900 mm and a collision area diameter of Ø 1,250 mm.
03
The page gives the maximum rotary table load as 1,200 / 1,800 kg without saying which applies to the EL. Plan with 1,200 kg, including pallet and fixture, until Hedelius confirms the higher figure for your configuration.
04
Five: SK 40 / BT 40 at 14,000 rpm with 22 kW or 37 kW, and HSK A63 at 15,000 rpm with 217 Nm and 50 kW, at 18,000 rpm with 35 kW, or at 24,000 rpm with 30 kW. The spindle swivels from -5° to +98° or from -98° to +98°.
