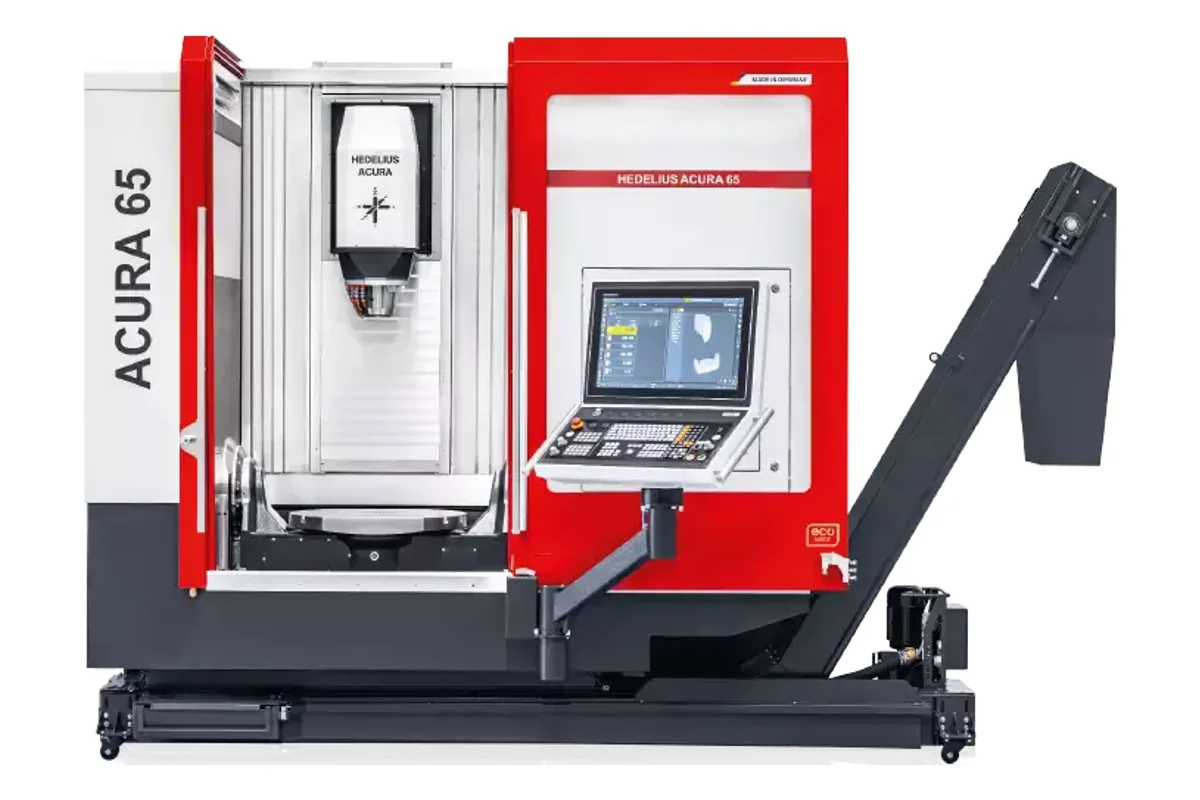

Hedelius ACURA 65

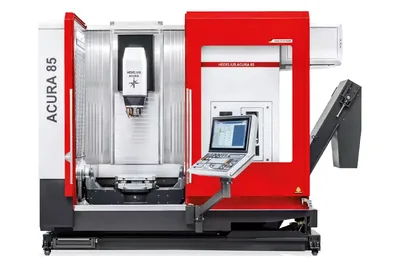

Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius ACURA 65 cost?
Price estimate
We do not have a price for the Hedelius ACURA 65 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius ACURA 65 is the middle size of the ACURA 5-axis range, a rotating/swivelling table machine with 700 mm (27.6 in) of X, 600 mm (23.6 in) of Z and a Y travel of 650 / 465 mm (horizontal / vertical). Its Ø 650 x 540 mm table takes 500 kg (1,102 lb) and the interference circle is Ø 700 mm.
What sets it apart from the ACURA 50 is less the extra travel than the spindle list. Five spindles are in the data sheet, and the fifth is an HSK A63 unit with 217 Nm and 50 kW at 15,000 rpm, for which Hedelius quotes 600 cm3/min of milling and a Ø 50 mm drill in E335/St60-2. The others are SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW or 183 Nm and 29 kW, HSK A63 at 18,000 rpm with 136 Nm and 35 kW, and HSK A63 at 14,000 rpm with 22 kW. A 24,000 rpm, 30 kW spindle is shown on the product page.
The table drive comes in two speeds, 0 – 20 or 0 – 50 min-1. Swivel torque is 2,040 Nm, the swivel clamp holds 4,000 Nm, and a swivel takes 1.2 s. Feed force is 11,000 N at most. Five 14 mm T-slots at 100 mm spacing take conventional fixtures.
Hedelius stresses the low overall depth and height of this model. The contact surface is moved to the front so the operator reaches the table, and the 65-place magazine, or 90 places with the MAGNUM extension, is loaded from the front as well. Tools may be 330 mm long. The machine weighs 7,500 kg (16,534 lb), and 5-axis simultaneous milling is an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 700 mm (27.6 in) |
| Y Axis Travel | 650 / 465 mm (25.6 / 18.3 in) (H/V: horizontal / vertical) |
| Z Axis Travel | 600 mm (23.6 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 5 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Distance | 120 / 120 (60 / 60) mm (4.7 / 4.7 (2.4 / 2.4) in) (H/V: horizontal / vertical) |
| Table Size | Ø 650 x 540 mm (Ø 25.6 x 21.3 in) |
| Interference Circle Diameter | Ø 700 mm (Ø 27.6 in) |
| T-Slots | 14 mm (0.55 in) T-slots, number 5, distance 100 mm (3.9 in) |
| Table Swivel Range | +30° – -115° |
| Table Swivel Time 90 Deg | 1.2 s |
| Table Swivel Accuracy | < ±10" |
| Table Rotational Speed | 0 – 20 / 0 – 50 min-1 |
| Indexing Accuracy | < ±6" |
| Axial Runout Accuracy | 0.015 mm (0.0006 in) |
| Table Swivel Torque | 2,040 Nm (1,505 lb-ft) |
| Table Swivel Clamping Force | 4,000 Nm (2,950 lb-ft) |
| Table Dividing Torque | 1,060 Nm (782 lb-ft) |
| Table Dividing Clamping Force | 2,000 Nm (1,475 lb-ft) |
| Max Table Load | 500 kg (1,102 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 11,000 N (2,473 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 90 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 mm (13.0 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 9.3 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm (ISO 230-2, X, Y, Z) |
| Machine Weight | 7,500 kg (16,534 lb) |
| Transport Height | 2,515 / 2,663 mm (99.0 / 104.8 in) |
| Transport Width | 2,985 / 2,760 mm (117.5 / 108.7 in) |
| Marathon Automation Interface | MARATHON SR422: yes; MARATHON SR518: no; MARATHON PL406: yes; MARATHON RZ430: yes |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- HSK A63 spindle with 217 Nm and 50 kW at 15,000 rpm in the data sheet, rated for 600 cm3/min in E335/St60-2
- Ø 650 x 540 mm table for 500 kg (1,102 lb), held in bearings on both sides
- 65- or 90-position tool magazine that is operated from the front
- Swivel torque of 2,040 Nm and a 4,000 Nm swivel clamp
- Contact surface moved to the front for better access to the table
Limitations
- 5-axis simultaneous milling is listed as optional
- The table rotation is 0 – 20 or 0 – 50 min-1, so it positions and contours but does not turn
- Tool weight is limited to 5 kg and tool diameter to 75 mm with every place occupied
- At 7,500 kg (16,534 lb) and up to 2,985 mm transport width it needs a proper access route
Best For
Frequently Asked Questions
01
The rotating/swivelling table is Ø 650 x 540 mm with five 14 mm T-slots at 100 mm spacing. It carries 500 kg (1,102 lb) and Hedelius gives an interference circle of Ø 700 mm. The swivel range is +30° to -115°.
02
An HSK A63 spindle with 217 Nm and 50 kW at 15,000 rpm. Hedelius rates it at 600 cm3/min milling, a Ø 50 mm drill and an M 27 thread in E335/St60-2. The fastest data sheet spindle is the 18,000 rpm HSK A63 unit with 136 Nm and 35 kW.
03
65 tools as standard, and the MAGNUM tool magazine adds 25 that can be operated from the front. With the standby cabinet magazines the theoretical capacity is 65 / 90 / 135 / 180 / 245 / 329. Maximum tool length is 330 mm and chip-to-chip time is ca. 9.3 s.
04
X 700 mm, Z 600 mm and Y 650 / 465 mm (horizontal / vertical). Feeds are infinitely variable up to 40 m/min on X, Y and Z, with a feed force of up to 11,000 N. Positioning accuracy is A=6 µm to ISO 230-2.
More from Hedelius
Other 5-Axis Machining Centers
DMG Mori DMU 75 monoBLOCK

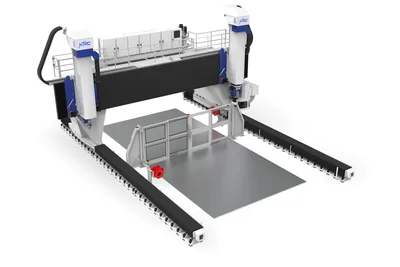

KRC FUSION VI
