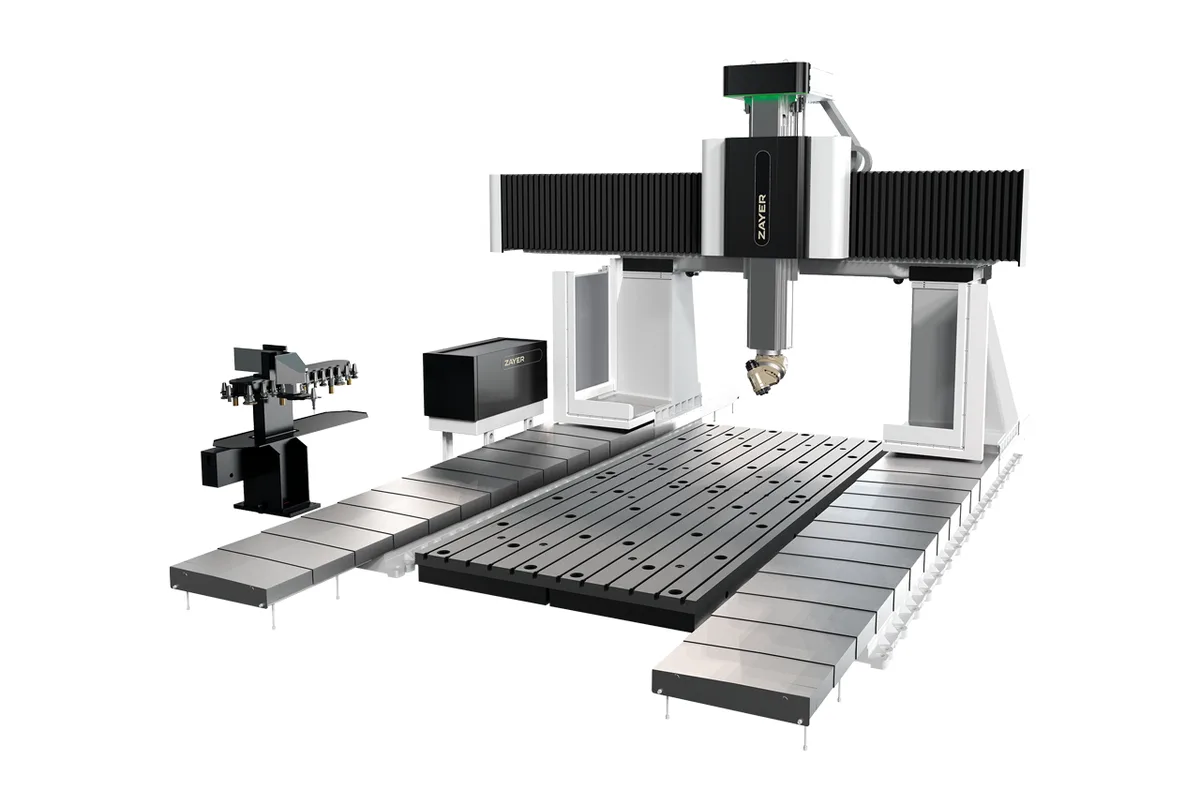

Zayer THERA
Image: zayer.com, Zayer
Key Specifications
Tool Capacity
Accuracy
table length
table width
distance between columns
x axis travel
How much does the Zayer THERA cost?
Price estimate
We do not have a price for the Zayer THERA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Zayer THERA is the large gantry of the range, a moving bridge over a fixed table with a fixed cross beam. Its cross travel starts at 3,750 mm (147.6 in) and can be ordered at 4,250, 4,750, 5,250 or 5,750 mm (167.3, 187.0, 206.7 or 226.4 in).
X travel is listed from 3,000 and 4,000 mm to 20,000 mm (787.4 in) and beyond, on tables from 3,500 mm to 20,500 mm (807.1 in). Z is 1,250 mm (49.2 in), with 1,500, 1,750 or 2,000 mm (59.1, 68.9 or 78.7 in) optional. The columns stand 3,000 mm (118.1 in) apart in the base machine and up to 5,000 mm (196.9 in) with options. Table loading is given per area, 15,000 kg/m², which is how a fixed-table machine for very large parts has to be rated.
Drives are split by job. The long axis is a rack with double motor and pinion with a rapid feed of 30,000 mm/min (1,181 ipm). The cross axis is also a double-motor rack and pinion, and together with the twin ball screw vertical axis it reaches 50,000 mm/min (1,969 ipm) rapid feed, with a 45,000 mm/min (1,772 ipm) working feed. Zayer describes the vertical drive as a double ball screw with double compensation, symmetric for thermal stability, running in box in box guideways.
Power is 43 kW (57.7 hp), or 60 kW (80.5 hp) as an option, and the spindle head speed is 6,000 rpm. Faster work needs one of the optional electrospindle heads, of which three are listed. Change of heads is standard, and ten heads appear in the accessory table. The magazine starts at 30 tools and the option list runs to 120 and beyond. Machine weight is about 30,000 to 150,000 kg (66,138 to 330,688 lb). Zayer points to pendulum work, and to rotating tables and turning options, as ways to configure the machine.
Full Specifications
| Parameter | Value |
|---|---|
| Table Length | 3,500 - 4,500 - ... 20,500 ... mm (137.8 - 177.2 - ... 807.1 ... in) |
| Table Width | 2,000 mm (78.7 in); 3,000 - 4,000 mm (118.1 - 157.5 in) optional |
| Distance Between Columns | 3,000 mm (118.1 in); 3,500 - 4,000 - 4,500 - 5,000 mm (137.8 - 157.5 - 177.2 - 196.9 in) optional |
| X Axis Travel | 3,000 - 4,000 - ... 20,000 ... mm (118.1 - 157.5 - ... 787.4 ... in) |
| Y Axis Travel | 3,750 mm (147.6 in); 4,250 - 4,750 - 5,250 - 5,750 mm (167.3 - 187.0 - 206.7 - 226.4 in) optional |
| Z Axis Travel | 1,250 mm (49.2 in); 1,500 - 1,750 - 2,000 mm (59.1 - 68.9 - 78.7 in) optional |
| Max Distance Table to Spindle Nose | 1,740 mm (68.5 in); 1,990 mm (78.3 in) optional |
| Rapid Traverse Longitudinal Axis | 30,000 mm/min (1,181 ipm) |
| Rapid Traverse Cross and Vertical Axis | 50,000 mm/min (1,969 ipm) |
| Cutting Feed Rate Longitudinal Axis | 25,000 mm/min (984 ipm) |
| Cutting Feed Rate Cross and Vertical Axis | 45,000 mm/min (1,772 ipm) |
| Longitudinal Axis Drive | rack and double motor and pinion |
| Cross Axis Drive | rack and double motor and pinion |
| Vertical Axis Drive | 2 ball screws |
| Power | 43 kW (57.7 hp); 60 kW (80.5 hp) optional |
| Spindle Speed | 6,000 rpm |
| Positioning Accuracy | 0.008/4,000 mm |
| Max Table Load | 15,000 kg/m² |
| Machine Weight | approx. 30,000 - 150,000 kg (66,138 - 330,688 lb) |
| Tool Capacity | 30; 40 - 60 - 80 - 100 - 120 ... optional |
Specifications sourced from zayer.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Cross travel options to 5,750 mm (226.4 in)
- Rapid feed of 50,000 mm/min (1,969 ipm) on the cross and vertical axes
- 43 kW (57.7 hp) standard, 60 kW (80.5 hp) optional
- Change of heads is standard, with ten heads listed
- Vertical travel options to 2,000 mm (78.7 in) on a double ball screw drive
- Tool magazine options to 120 tools and beyond
Limitations
- Longitudinal rapid feed is 30,000 mm/min (1,181 ipm), well below the cross and vertical rate
- The base spindle head speed is 6,000 rpm with no faster option in the specification table
- Fixed cross beam; the moving beam is the THERA W
- Weighs about 30,000 to 150,000 kg (66,138 to 330,688 lb)
Best For
Frequently Asked Questions
01
Standard cross travel is 3,750 mm (147.6 in) with 3,000 mm (118.1 in) between columns. Options take the cross travel to 4,250, 4,750, 5,250 or 5,750 mm (167.3, 187.0, 206.7 or 226.4 in) and the column spacing to 3,500, 4,000, 4,500 or 5,000 mm (137.8, 157.5, 177.2 or 196.9 in).
02
Zayer rates it per area: 15,000 kg/m². The table is fixed, 2,000 mm (78.7 in) wide as standard and 3,000 or 4,000 mm (118.1 or 157.5 in) wide as options, in lengths from 3,500 mm to 20,500 mm (807.1 in) and beyond.
03
Both are fixed-table gantries with X travel to 20,000 mm (787.4 in) and beyond. The THERA is the larger and stronger machine: 43 kW (57.7 hp) against the ALTEA's 30 kW (40.2 hp) high torque rating, Y options to 5,750 mm (226.4 in), Z options to 2,000 mm (78.7 in) and change of heads as standard.
04
Ten. The 45º head is standard. Options are a continuous-rotation 45º head, a 30º head, two 30º heads with 33 kW electrospindles, a 40º head with a 42 kW, 15,000 rpm electrospindle, direct outlet heads with and without reduction, and L shaped and extended L shaped heads.
05
Rack with double motor and pinion on both the longitudinal and the cross axis, and 2 ball screws on the vertical axis. Rapid feed is 30,000 mm/min (1,181 ipm) lengthwise and 50,000 mm/min (1,969 ipm) on the cross and vertical axes. Positioning accuracy is listed at 0.008/4,000 mm.
