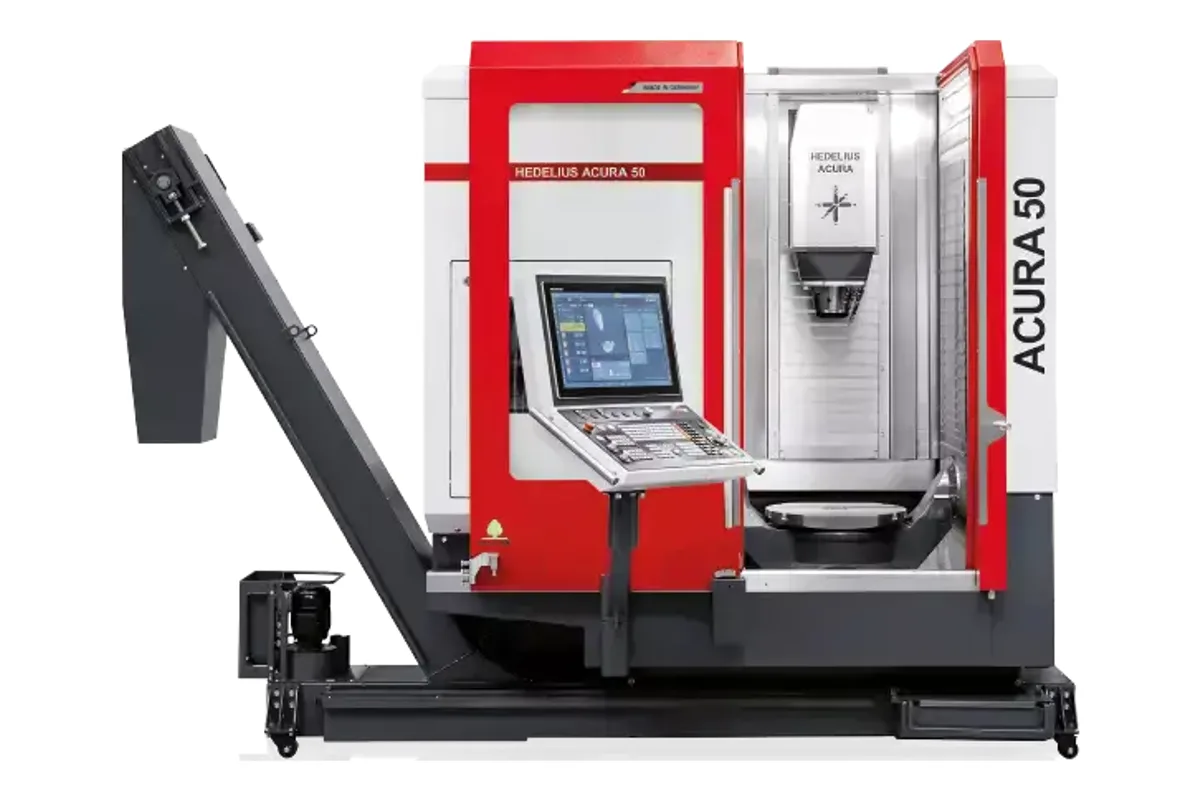

Hedelius ACURA 50 EL
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius ACURA 50 EL cost?
Price estimate
We do not have a price for the Hedelius ACURA 50 EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius ACURA 50 EL is the ACURA 50 with a loading opening in its right-hand side wall and a prepared interface, so that a pallet handling system or a robot of the buyer's choosing can feed it. Hedelius calls this manufacturer-independent automation. The opening is approx. 600 x 840 mm and is closed by a pneumatically activated stainless steel door.
Why load from the side? Because the front stays free. The operator's door keeps its full access to the work area while the automation is attached, so the machine can run single parts by hand during the day and pallets unattended afterwards. A 4-fold rotary transfer for pneumatics is built into the machine table to actuate zero point clamping elements or force clamps, which is what an automated pallet change needs at the table.
The cutting side is the standard machine. Travels are 500 mm in X and 550 mm in Z, and Y is listed as 550 / 370 mm (horizontal / vertical). The rotating/swivelling table is Ø 500 x 430 mm with five 14 mm T-slots, swivels from +30° to -115°, and carries 300 kg (661 lb) inside an interference circle of Ø 550 mm. That 300 kg has to cover the pallet, the clamping device and the part together.
Spindles in the data sheet are SK40 / BT40 at 14,000 rpm with 22 kW or 29 kW, and HSK A63 at 18,000 rpm with 35 kW or 14,000 rpm with 22 kW. Unattended running usually asks for more tools than the 55 standard places, and the theoretical capacity goes up to 319 with the standby magazines. Machine weight is 5,500 kg (12,125 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 550 / 370 mm (21.7 / 14.6 in) (H/V: horizontal / vertical) |
| Z Axis Travel | 550 mm (21.7 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 375 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 500 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 425 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 375 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 24 |
| Spindle Distance | 120 / 50 mm (4.7 / 2.0 in) (H/V: horizontal / vertical) |
| Table Size | Ø 500 x 430 mm (Ø 19.7 x 16.9 in) |
| Interference Circle Diameter | Ø 550 mm (Ø 21.7 in) |
| T-Slots | 14 mm (0.55 in) T-slots, number 5, distance 80 mm (3.1 in) |
| Table Swivel Range | +30° – -115° |
| Table Swivel Time 90 Deg | 1.2 s |
| Table Swivel Accuracy | < ±10" |
| Table Rotational Speed | 0 – 50 min-1 |
| Indexing Accuracy | < ±6" |
| Axial Runout Accuracy | 0.015 mm (0.0006 in) |
| Table Swivel Torque | 1,450 Nm (1,070 lb-ft) |
| Table Swivel Clamping Force | 2,200 Nm (1,623 lb-ft) |
| Table Dividing Torque | 720 Nm (531 lb-ft) |
| Table Dividing Clamping Force | 1,500 Nm (1,106 lb-ft) |
| Max Table Load | 300 kg (661 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 9,000 N (2,023 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 55 / 80 / 125 / 170 / 235 / 319 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 9 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm (ISO 230-2, X, Y, Z) |
| Machine Weight | 5,500 kg (12,125 lb) |
| Transport Height | 2,400 / 2,520 mm (94.5 / 99.2 in) |
| Transport Width | 2,350 / 2,670 mm (92.5 / 105.1 in) |
| Marathon Automation Interface | MARATHON SR422: no; MARATHON SR518: no; MARATHON PL406: yes; MARATHON RZ430: yes |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Side loading opening of approx. 600 x 840 mm with a pneumatically activated stainless steel door
- Prepared automation interface that Hedelius describes as suitable for numerous pallet handling or robot systems
- 4-fold rotary transfer for pneumatics in the table for zero point clamping elements or force clamps
- Front access to the work area is not restricted by the automation
- Theoretical tool capacity of up to 319 places for long unattended runs
Limitations
- The 300 kg (661 lb) table load must cover pallet, clamping device and workpiece together
- Parts and pallets have to pass an opening of approx. 600 x 840 mm and stay inside the Ø 550 mm interference circle
- The automation system itself is not part of the machine and has to be chosen and integrated separately
- Tool length is limited to 300 mm and tool weight to 5 kg
Best For
Frequently Asked Questions
01
A loading opening of approx. 600 x 840 mm in the right-hand side of the machine, closed by a pneumatically activated stainless steel door, plus a prepared automation interface and a 4-fold rotary transfer for pneumatics in the machine table. Travels, table and spindles are those of the ACURA 50.
02
Hedelius describes the machine as suitable for numerous pallet handling systems or robot systems and calls the concept manufacturer-independent. For its own MARATHON magazines, the ACURA 50 data sheet answers yes for the PL406 and RZ430 and no for the SR422 and SR518.
03
Yes. Hedelius states that the side door enables automatic loading of pallets without restricting access to the machine work area. The front of the machine is unchanged, so set-up work and single parts are handled there as on the standard machine.
04
The table load is 300 kg (661 lb) on a Ø 500 x 430 mm table with an interference circle of Ø 550 mm. Pallet, zero point clamping and fixture count against that figure, so the net workpiece weight is lower. The feed force is 9,000 N at most.
