Hedelius TILTENTA 11-3600

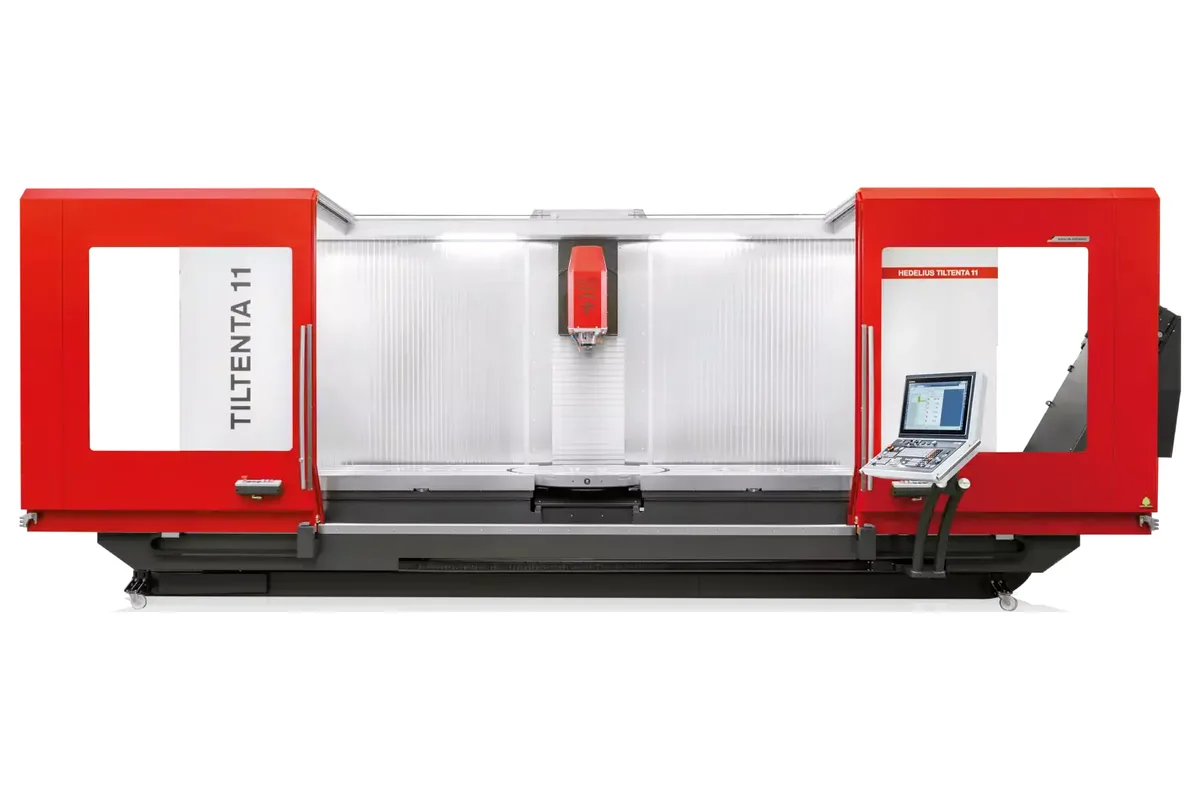

Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 11-3600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 11-3600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Four of the five axes on the Hedelius TILTENTA 11-3600 are in the tool. The column carries X, Y and Z and the spindle head swivels, so only the rotary table moves the workpiece. Hedelius draws the conclusion that the dynamics are excellent regardless of the workpiece weight, and quotes rapid motions of up to 40 m/min. For a machine with a 5,000 kg (11,023 lb) table load that is the main selling point.
The working range is 3,600 mm (141.7 in) in X with the spindle vertical and 3,030 mm with it horizontal, 1,100 mm in Y, and 900 / 1,005 mm in Z. The fixed table measures 4,080 x 1,100 mm. Into it is set an NC rotary table with a Ø 1,140 mm faceplate that takes 1,800 kg, or 2,200 kg optionally, inside a 1,450 mm interference circle. Hedelius lists the heavy-duty rotary table as an option.
The swivel head works between -5° and +98° or between -98° and +98°, with a swivel accuracy value of < ±5 in the data sheet's angular notation, 2,000 Nm of swivel torque and 2,500 Nm clamped. Positioning accuracy on the linear axes is A=6 µm/1,000 mm.
Four spindles are listed: SK40 / BT40 at 14,000 rpm with 22 kW or with 185 Nm and 37 kW, and HSK A63 at 18,000 rpm with 35 kW or at 15,000 rpm with 217 Nm and 50 kW. The tool changer has 65 places. Tools up to 330 / 390 mm long are changed in ca. 13 s chip to chip. No pendulum operation is listed at this length. Transport width is 3,650 mm, or 3,520 mm as an option, and the machine weighs 24,500 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,600 / 3,030 mm (141.7 / 119.3 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 900 / 1,005 mm (35.4 / 39.6 in) (V/H: vertical / horizontal) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Centre of Rotation | 285 mm (11.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,000 Nm (1,475 lb-ft) |
| Spindle Swivel Torque Clamped | 2,500 Nm (1,844 lb-ft) |
| Rotary Table Faceplate | Ø 1,140 mm (Ø 44.9 in) |
| Interference Circle Diameter | 1,450 mm (57.1 in) |
| Rotary Table Rotational Speed | 8 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 4,200 Nm (3,098 lb-ft) |
| Rotary Table Holding Torque | 12,000 Nm (8,851 lb-ft) |
| Rotary Table Load | 1,800 / 2,200 kg (3,968 / 4,850 lb) (optional) |
| Spindle Distance | 20 - 920 mm (0.8 - 36.2 in) |
| Table Size | 4,080 x 1,100 mm (160.6 x 43.3 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Max Table Load | 5,000 kg (11,023 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 27,000 N (6,070 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 13 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 24,500 kg (54,012 lb) |
| Transport Height | 3,100 mm (122.0 in) |
| Transport Width | 3,650 / 3,520 mm (143.7 / 138.6 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Four axes in the tool: rapid motions of up to 40 m/min regardless of workpiece weight
- 4,080 x 1,100 mm fixed table for 5,000 kg (11,023 lb)
- Ø 1,140 mm rotary table faceplate for 1,800 kg, optionally 2,200 kg
- 1,100 mm of Y travel with 3,600 mm of vertical X
- 65-place tool changer and spindles up to 50 kW
Limitations
- No pendulum operation in the data sheet for this length
- Horizontal X travel is 3,030 mm
- The heavy-duty rotary table is an option
- 24,500 kg (54,012 lb), with 3,100 mm transport height
Best For
Frequently Asked Questions
01
Because four axes are in the tool. The travelling column carries the linear axes and the spindle swivels, so a load of up to 5,000 kg on the fixed table is never accelerated. Hedelius quotes rapid motions of up to 40 metres per minute.
02
X 3,600 mm vertical and 3,030 mm horizontal, Y 1,100 mm, Z 900 mm vertical and 1,005 mm horizontal. The clamping area is 4,080 x 1,100 mm with nine 18 mm T-slots at 125 mm spacing.
03
1,800 kg, or 2,200 kg as an option. The faceplate is Ø 1,140 mm and the interference circle 1,450 mm. Torque is 4,200 Nm and holding torque 12,000 Nm at a rotational speed of 8 min-1.
04
The data sheet states a positioning accuracy of A=6 µm/1,000 mm to ISO 230-2 for X, Y and Z, and an axial runout of the rotary table below 0.015 mm. Swivel and indexing accuracy are listed with a value of ±5 in the maker's angular notation.
