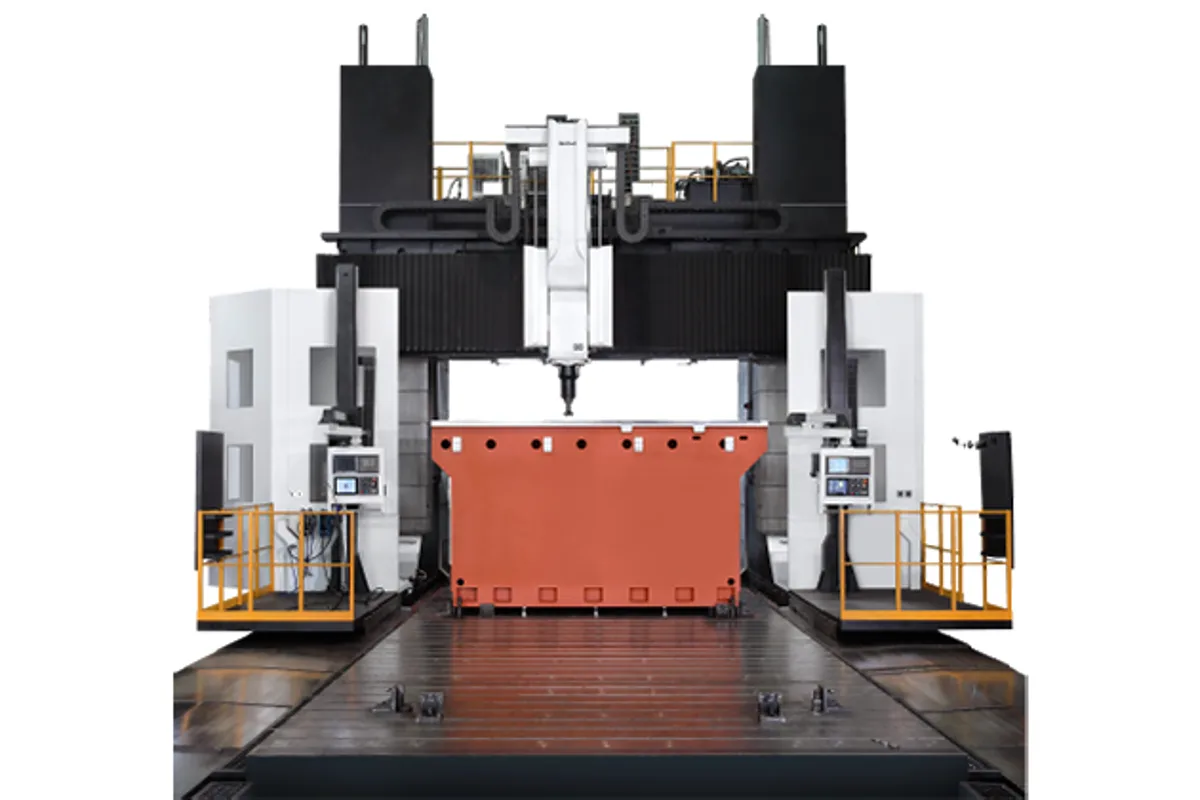

Hartford MCW-18550
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford MCW-18550 cost?
Price estimate
We do not have a price for the Hartford MCW-18550 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Eighteen metres of X travel, a 4,000 mm wide table: the Hartford MCW-18550 is built for very long, comparatively narrow work. In figures, X travel is 18,000 mm (708.7 in), Y travel 5,500 mm (216.5 in) and the fixed table 18,000 x 4,000 mm (708.7 x 157.5 in).
Parts of that length exist in a few industries. Wind turbine components, ship engine bedplates, long crane girders, rail vehicle side frames and the beds of other large machine tools are typical. None of them can sensibly be moved under a spindle, which is why a moving-column layout is used: the part is levelled once on the table and the machine travels along it.
Over such a distance Hartford relies on support for the screws and on a doubled X drive. Its list for the series includes X/Y-axis ballscrew support, an X axis with twin servo motors and twin reducers, and backlash reduced to ensure accuracy of 0.01 mm.
The table carries 3,000 kg/m². The cross-beam rises 1,800 mm on the W axis, or 2,100 mm, and the ram has 1,000 mm of Z travel with 1,200 and 1,400 mm options. Spindle choices are a #50 gear head at 6,000 or 8,000 rpm and a 10,000 rpm hybrid.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 18,000 x 4,000 mm (708.7 x 157.5 in) |
| Max Table Load | 3,000 kg/m² |
| X Axis Travel | 18,000 mm (708.7 in) |
| Y Axis Travel | 5,500 mm (216.5 in) |
| Z Axis Travel | 1,000 opt. 1,200 / 1,400 mm |
| W Axis Travel | 1,800 opt. 2,100 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Spindle Speed Hybrid | 10,000 rpm |
| Tool Capacity | A: 40 (62) pcs |
| Tool Shank | BT-50 (CAT50 / DIN / BBT50) |
| Spindle Motor Power | 18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 18,000 mm (708.7 in) of X travel
- Part stays stationary on an 18,000 x 4,000 mm fixed table
- X/Y-axis ballscrew support and twin-motor X drive
- W-axis cross-beam travel of 1,800 mm, optionally 2,100 mm
Limitations
- Table is 4,000 mm wide; the MCW-18650 has 5,000 mm (196.9 in)
- Only two longer steps exist, to 20,000 mm (787.4 in) on the MCW-20550
- Load rating is 3,000 kg/m²
Best For
Frequently Asked Questions
01
X travel and table length are both 18,000 mm (708.7 in). The table is 4,000 mm (157.5 in) wide and Y travel is 5,500 mm (216.5 in).
02
It is a moving-column machine: the columns and cross-beam travel along X and the workpiece does not move. That suits parts too long or heavy to be carried on a moving table, and it is why the load is given as 3,000 kg/m².
03
The series description lists X/Y-axis ballscrew support, an X axis with twin servo motors and twin reducers, and backlash reduced to ensure accuracy of 0.01 mm. The spec table itself gives no positioning accuracy for X.
More from Hartford
Other Vertical Machining Centers (VMC)
Hurco VMX6030i

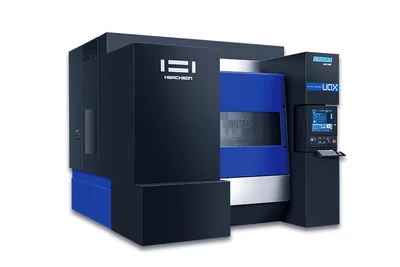

Hwacheon SMART UaX

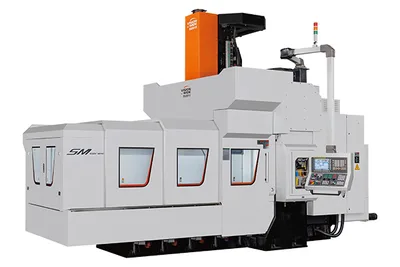

Vision Wide SM-5122Y
You Ji VLM1100

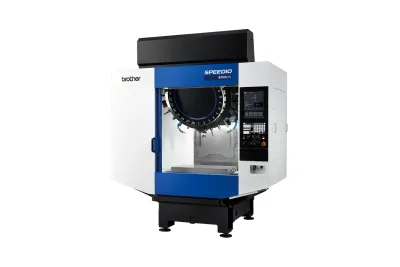

Brother Speedio S700Xd1
