Hartford Vertical Machining Centers (VMC)

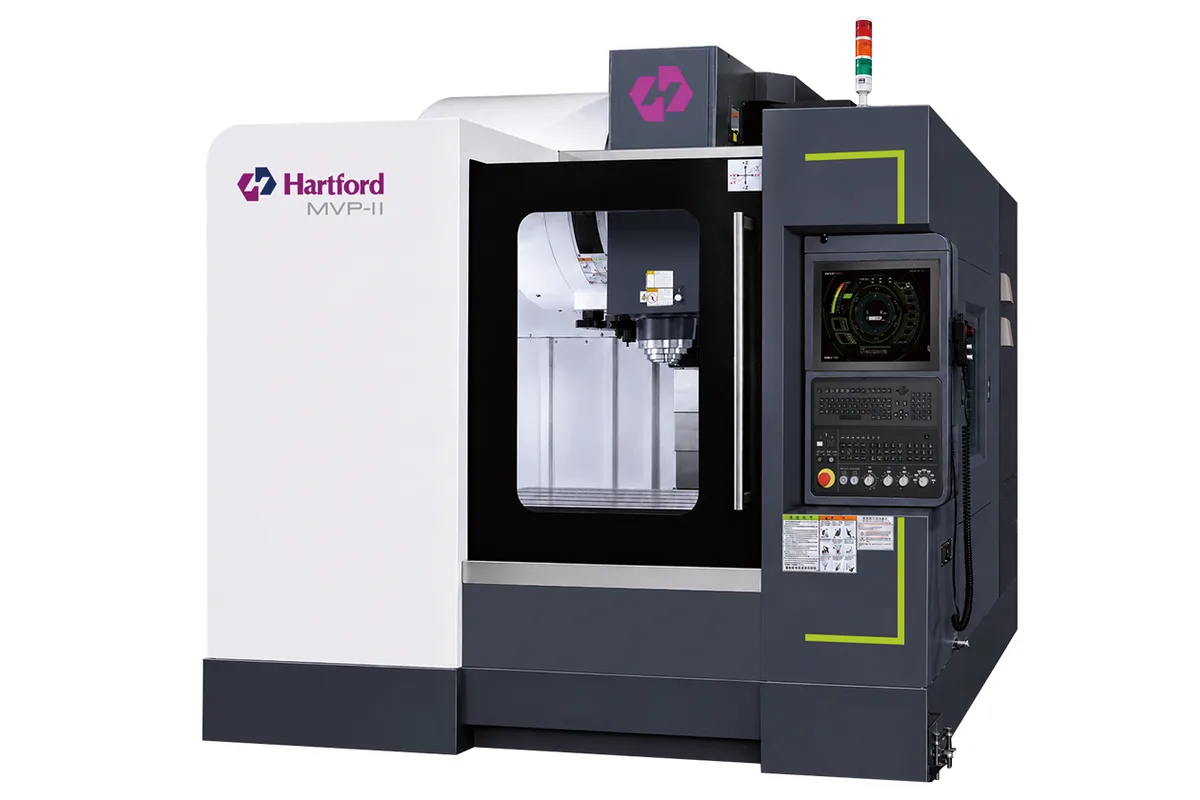

Hartford MVP-11

Q: How much does the Hartford MVP-11 cost?

The price estimate for the Hartford MVP-11 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-mvp-11#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#40 / #50

Tool Capacity

A: 24 (30/40) for #40 / A: 24 (32) for #50 pcs

Table Size

1,270 x 600 mm (50.0 x 23.6 in)

max table load

1,000 kg (2,205 lb)

t slots

18 x 100 (5) mm

x axis travel

1,100 mm (43.3 in)

How much does the Hartford MVP-11 cost?

Price estimate

Uncertain

We do not have a price for the Hartford MVP-11 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hartford MVP-11 is the smallest MVP vertical machining center that can be built with either a #40 or a #50 spindle. Travels are 1,100 mm (43.3 in) in X, 600 mm (23.6 in) in Y and 630 mm (24.8 in) in Z, and the table is 1,270 x 600 mm (50.0 x 23.6 in) with a 1,000 kg (2,205 lb) average load.

The choice of taper changes the character of the machine. In #40 form the spindle list matches the smaller MVPs: 8,000 / 10,000 / 12,000 rpm by pulley and 10,000 / 12,000 / 15,000 / 20,000 rpm as a DDS unit, with BT40 or HSK A63 tooling and a 24-tool magazine expandable to 30 or 40. In #50 form the only spindle listed is a DDS at 10,000 / 12,000 rpm, the shanks are BT50, BBT, CAT or DIN, and the magazine is 24 tools, or 32.

Motor ratings differ too. The #40 row runs from 5.5 / 7.5 kW to 15 / 18.5 kW (Cont. / 30 min). For #50 the page prints 11 / 15 with 15 / 18.5 as the option, and omits the unit.

A direct-drive #50 spindle at 12,000 rpm on a machine this size is aimed at large-diameter cutters run fast in aluminium and at rigid toolholding in steel finishing, not at low-speed roughing; no gear head is listed for the MVP-11. Buyers who need that should look at the MVP-13, which adds a 6,000 rpm gear spindle in #50.

Full Specifications

Parameter	Value
Table Size	1,270 x 600 mm (50.0 x 23.6 in)
Max Table Load	1,000 kg (2,205 lb)
T-Slots	18 x 100 (5) mm
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	630 mm (24.8 in)
Spindle Taper	#40 / #50
Spindle Speed Pulley 40 Taper	8,000 / 10,000 / 12,000 rpm
Spindle Speed Dds 40 Taper	10,000 / 12,000 / 15,000 / 20,000 rpm
Spindle Speed Dds 50 Taper	10,000 / 12,000 rpm
Tool Capacity	A: 24 (30/40) for #40 / A: 24 (32) for #50 pcs
Tool Shank	BT40 (BBT / CAT / DIN / HSK A63) & BT50 (BBT / CAT / DIN)
Spindle Power 40 Taper	5.5 / 7.5 OPT. 7.5 / 11, 11 / 15, 15 / 18.5 kW (Cont. / 30 min)
Spindle Power 50 Taper	11 / 15 OPT. 15 / 18.5 (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Available with a #40 or a #50 spindle on the same 1,100 x 600 x 630 mm platform
#40 DDS spindle up to 20,000 rpm; #50 DDS spindle at 10,000 / 12,000 rpm
Table of 1,270 x 600 mm (50.0 x 23.6 in) rated for 1,000 kg (2,205 lb)
Up to 40 tools with #40 tooling, per the A: 24 (30/40) entry
Y travel of 600 mm (23.6 in) covers the full table depth

Limitations

No gear-head spindle is listed, so the #50 version lacks a low-speed, high-torque option
The #50 magazine is limited to 24 tools, or 32
The #50 motor row is printed without a unit on the maker's page
Z travel of 630 mm (24.8 in) is unchanged from the smaller MVP-10

Best For

Shops that want 50-taper rigidity in a machine just over a metre long Mould work that mixes large face mills with small finishing tools High-speed #40 machining at up to 20,000 rpm Parts up to 1,000 kg (2,205 lb) including fixtures

Frequently Asked Questions

01 Can the Hartford MVP-11 be ordered with a 50-taper spindle?

Yes. The spindle rows list both #40 and #50. For #50 the table gives a DDS spindle at 10,000 / 12,000 rpm with BT50 shanks (BBT, CAT and DIN as alternatives) and a tool magazine of 24, or 32.

02 What spindle speeds does the MVP-11 offer in 40-taper form?

8,000 / 10,000 / 12,000 rpm with the pulley spindle and 10,000 / 12,000 / 15,000 / 20,000 rpm with the DDS spindle. The #40 motor row lists 5.5 / 7.5 kW with 7.5 / 11 kW, 11 / 15 kW and 15 / 18.5 kW as options (Cont. / 30 min).

03 How large is the MVP-11 table?

1,270 x 600 mm (50.0 x 23.6 in), with five T-slots listed as 18 x 100 (5) mm and an average load of 1,000 kg (2,205 lb). Axis travels are 1,100 mm (43.3 in), 600 mm (23.6 in) and 630 mm (24.8 in).

04 What separates the MVP-11 from the MVP-10?

The MVP-10 is #40 only, has 530 mm (20.9 in) of Y travel and a 700 kg (1,543 lb) table load. The MVP-11 adds the #50 spindle choice, 600 mm (23.6 in) of Y, a 1,000 kg (2,205 lb) table and a 40-tool magazine option for #40.
