Hartford HSA-2212

Q: How much does the Hartford HSA-2212 cost?

The price estimate for the Hartford HSA-2212 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-hsa-2212#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

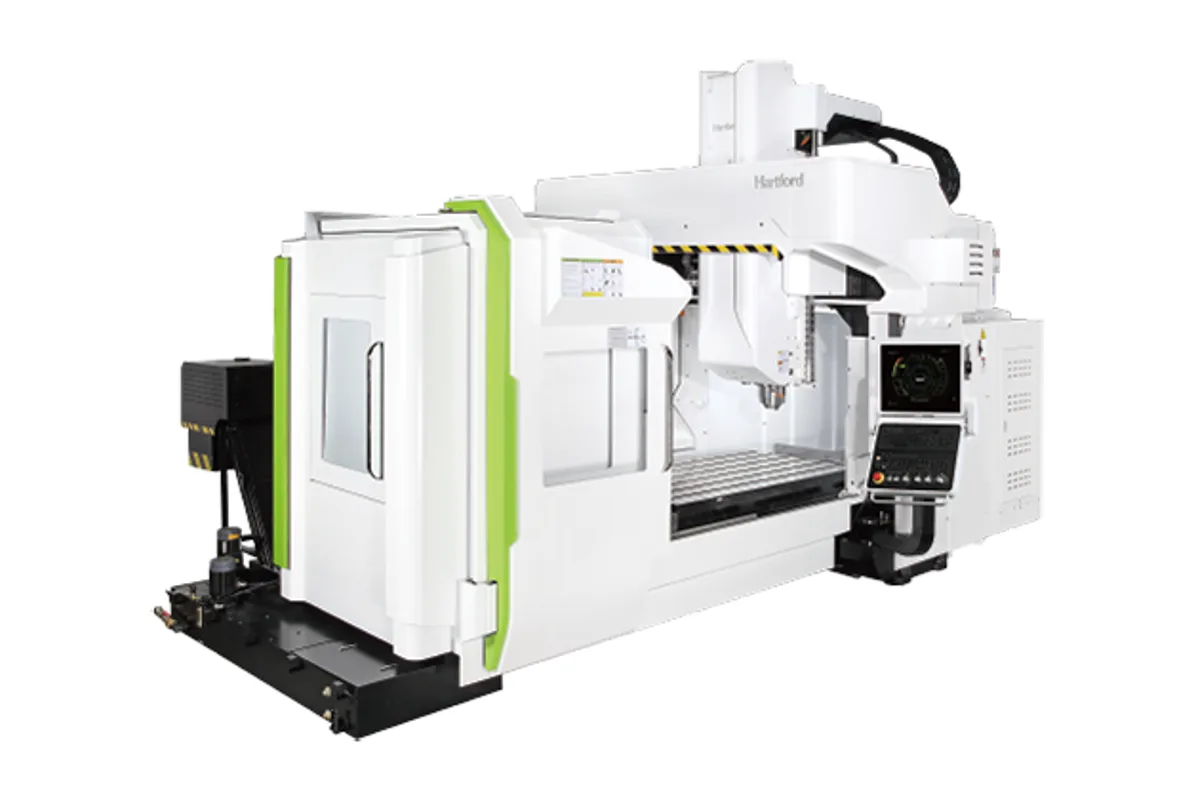

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#40, #50

Tool Capacity

#40 A: 24 opt. 32, #50 A: 24 opt. 32 / 40 pcs

Table Size

2,000 x 1,100 mm (78.7 x 43.3 in)

Spindle Power

#40: 7.5 / 11, #50: 15 / 18.5 opt. 22 / 26 kW (Cont. / 30 min)

max table load

3,500 kg (7,716 lb)

x axis travel

2,250 mm (88.6 in)

How much does the Hartford HSA-2212 cost?

Price estimate

Uncertain

We do not have a price for the Hartford HSA-2212 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hartford HSA-2212 is the narrowest double-column machining center Hartford lists. Y travel is 1,200 mm (47.2 in), X travel 2,250 mm (88.6 in) and Z travel 780 mm (30.7 in), over a 2,000 x 1,100 mm (78.7 x 43.3 in) table.

Why a bridge machine with barely more Y than a large vertical? Because of what the bridge does for accuracy. On a C-frame vertical the head hangs from a column behind the table, and the overhang grows with Y travel. A double-column frame carries the head on a beam supported at both ends, so there is no overhang to open under cutting load or to move as the column warms. For mould plates and precision bases in the 1,100 mm class, that is the reason to choose this layout.

The table load, 3,500 kg (7,716 lb), is light by double-column standards. The spindle options are simpler than on the HSA-216 too: a #40 DDS spindle at 10,000 rpm, with 15,000 rpm optional, or a #50 gear head at 6,000 rpm, with 8,000 rpm optional. Motors are 7.5 / 11 kW for #40 and 15 / 18.5 kW for #50, the latter with a 22 / 26 kW option.

Magazine capacity is 24 tools. The option is 32 for #40, and 32 or 40 for #50. Column and cross-beam are a one-piece casting with a chamfered internal box structure.

Full Specifications

Parameter	Value
Table Size	2,000 x 1,100 mm (78.7 x 43.3 in)
Max Table Load	3,500 kg (7,716 lb)
X Axis Travel	2,250 mm (88.6 in)
Y Axis Travel	1,200 mm (47.2 in)
Z Axis Travel	780 mm (30.7 in)
Spindle Taper	#40, #50
Spindle Speed Dds	#40 10,000 opt. 15,000 rpm
Spindle Speed Gear	#50 6,000 opt. 8,000 rpm
Tool Capacity	#40 A: 24 opt. 32, #50 A: 24 opt. 32 / 40 pcs
Tool Shank	BT-40 (CAT40 / DIN / BBT40 / HSK-A63) / BT-50 (CAT50 / DIN / BBT50)
Spindle Motor Power	#40: 7.5 / 11, #50: 15 / 18.5 opt. 22 / 26 kW (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Double-column frame in a compact 2,250 x 1,200 mm X/Y envelope
One-piece column and cross-beam with chamfered box structure for torsion resistance
#40 DDS spindle at 10,000 rpm (15,000 rpm optional) or #50 gear head
3-axes direct drive servo motors
Self-made spindle with deflection within 5μm, per Hartford

Limitations

Table load of only 3,500 kg (7,716 lb)
Y travel of 1,200 mm (47.2 in)
Standard magazine holds 24 tools
No 20,000 rpm spindle, which the HSA-216 lists

Best For

Precision mould plates and bases Aluminium and steel plates up to 2,000 x 1,100 mm Work that needs bridge-type geometry more than size Light to medium parts within 3,500 kg (7,716 lb)

Frequently Asked Questions

01 How big is the Hartford HSA-2212?

Travels are 2,250 mm (88.6 in) in X, 1,200 mm (47.2 in) in Y and 780 mm (30.7 in) in Z. The table is 2,000 x 1,100 mm (78.7 x 43.3 in) and carries 3,500 kg (7,716 lb).

02 What spindles are listed for the HSA-2212?

A #40 DDS spindle at 10,000 rpm with 15,000 rpm optional, and a #50 gear-head spindle at 6,000 rpm with 8,000 rpm optional. The motor is 7.5 / 11 kW for #40 and 15 / 18.5 kW, optionally 22 / 26 kW, for #50.

03 How many tools does the HSA-2212 hold?

For #40 the row reads A: 24 opt. 32. For #50 it reads A: 24 opt. 32 / 40. Both are arm-type changers with 24 tools as the base size.

04 What is the longer version of the HSA-2212?

The HSA-3212, which keeps the 1,200 mm (47.2 in) Y travel and extends X to 3,250 mm (128.0 in) on a 3,000 x 1,100 mm (118.1 x 43.3 in) table rated for 4,500 kg (9,921 lb).
