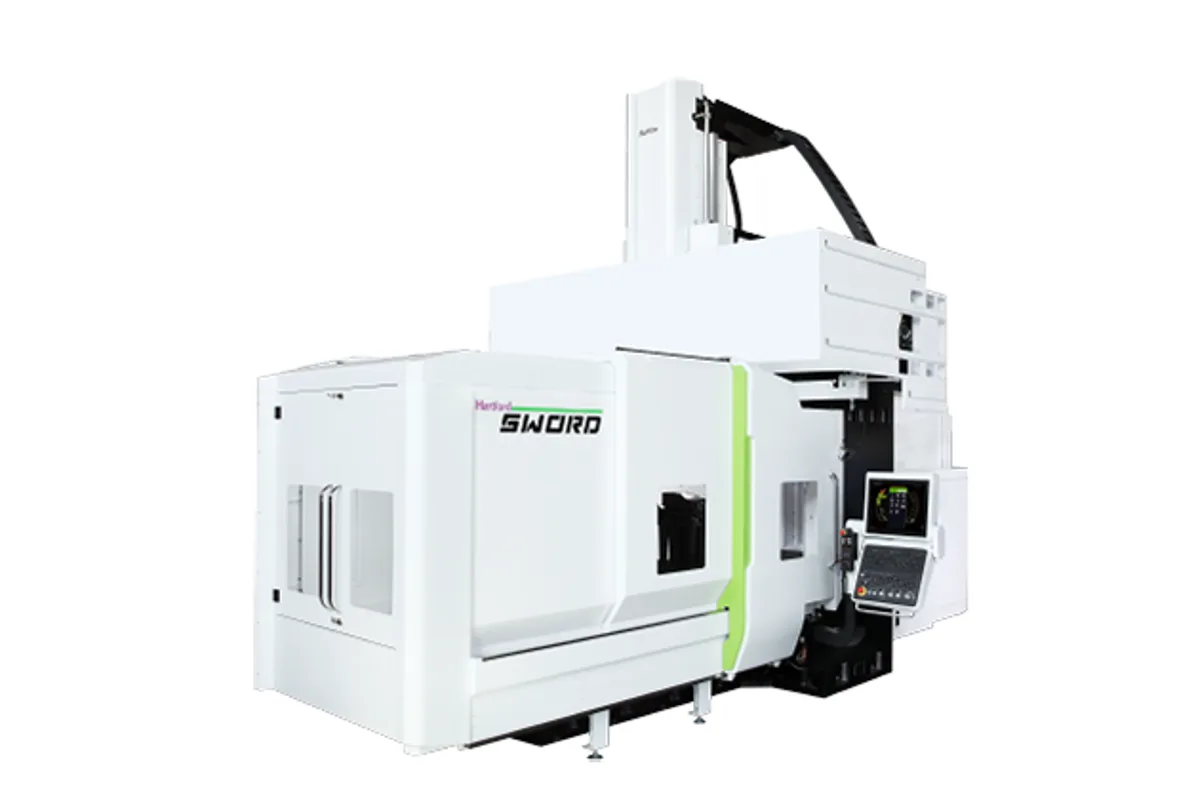

Hartford SW-316
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
t slots
How much does the Hartford SW-316 cost?
Price estimate
We do not have a price for the Hartford SW-316 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Seventeen T-slots across a table three metres long: the Hartford SW-316 is a box-guideway double-column machining center for long, fairly narrow work. Its table is 3,000 x 1,450 mm (118.1 x 57.1 in), X travel is 3,100 mm (122.0 in) and Y travel 1,600 mm (63.0 in).
The T-slot row reads 22 x 180 (17) mm. Slots at that spacing make it easy to clamp a row of smaller parts or several vises, so the SW-316 serves batch work on plates and bars as well as single long parts. The table takes 8,000 kg (17,637 lb).
Like the SW-216 it is a pure gear-spindle machine. The #50 gear head runs 6,000 / 8,000 rpm on 15/18.5 kW, with 18.5/22 kW and 22/26 kW optional. Hartford states spindle run-out within 5μm. An arm-type magazine holds 32 tools, or 40, and an S type holds 20.
Z travel is 780 mm, with 1,070 mm given in brackets as the longer stroke. The gibs on X and Y are doubled and lubricated directly through the taper gib, which Hartford says prevents oil from leaking at the contact surface and protects the Turcite-B way lining. An angle head can be fitted for work on the sides of a part.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 3,000 x 1,450 mm (118.1 x 57.1 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| T-Slots | 22 x 180 (17) mm |
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 780 (1,070) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | #50 6,000 / 8,000 rpm |
| Tool Capacity | #50 A: 32 (40) S: 20 pcs |
| Tool Shank | BT-50 (BBT /CAT /DIN) |
| Spindle Motor Power | #50:15/18.5 opt. 18.5/22,22/26 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,100 mm (122.0 in) X travel with closely spaced T-slots, listed as 22 x 180 (17) mm
- 8,000 kg (17,637 lb) table load
- Double gibs on X and Y with direct taper gib lubrication
- #50 gear spindle with stated run-out within 5μm
- S-type 20-tool changer or arm-type 32 (40) tool changer
Limitations
- Table width of 1,450 mm limits the part to roughly half the table length
- Arm-type magazine listed with 32 or 40 tools only at this size
- Spindle speed ends at 8,000 rpm
- Longer Z travel of 1,070 mm is not the base configuration
Best For
Frequently Asked Questions
01
3,100 mm (122.0 in) in X and 1,600 mm (63.0 in) in Y. Z travel is 780 mm, with 1,070 mm as the longer version. The table is 3,000 x 1,450 mm (118.1 x 57.1 in).
02
8,000 kg (17,637 lb) as an average load. T-slots are listed as 22 x 180 (17) mm, which gives many clamping positions across the table.
03
The row reads #50 A: 32 (40) S: 20 pcs: an arm-type changer with 32 tools, or 40, and an S-type changer with 20. Shanks are BT-50, with BBT, CAT and DIN as alternatives.
04
The SW-320 is wider, with 2,000 mm (78.7 in) of Y travel, a 3,000 x 1,830 mm (118.1 x 72.0 in) table for 10,000 kg (22,046 lb) and a larger base motor of 18.5/22 kW. X travel is the same 3,100 mm (122.0 in).
