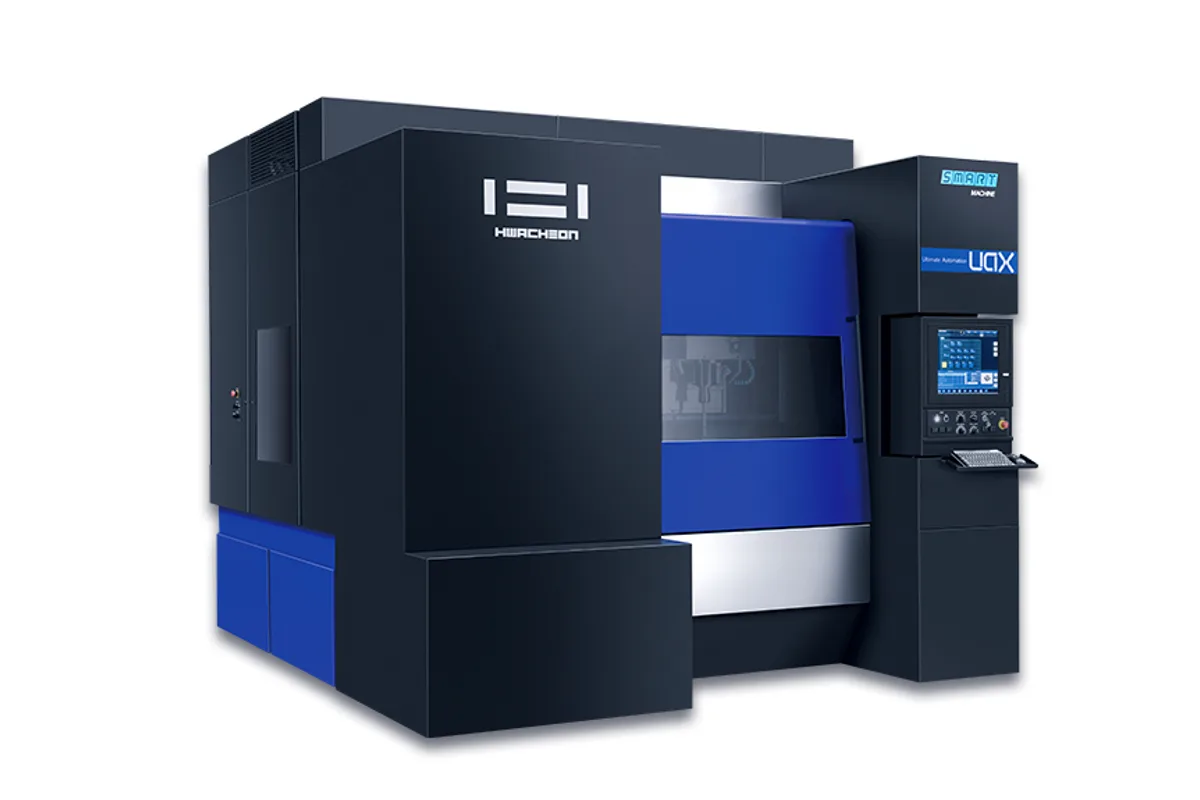

Hwacheon SMART UaX
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon SMART UaX cost?
Price estimate
We do not have a price for the Hwacheon SMART UaX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon SMART UaX is a 40-taper vertical whose spec list carries a dust collector instead of a coolant tank: 1,300 mm (51.2 in) of X, 750 mm (29.5 in) of Y and only 420 mm (16.5 in) of Z over a 1,200 x 700 mm (47.2 x 27.6 in) table, under Hwacheon's H-SMART control. The table lists a 3.7 kW (5.0 hp) dust collector motor, an indoor collector 3,000 mm (118.1 in) tall or an outdoor one at 4,015 mm (158.1 in), and no coolant capacity. That points to dry cutting of material that leaves fine dust rather than chips; confirm the intended material with Hwacheon before buying.
The tool magazine is unusual. It holds 50 tools in an armless, fixed-address changer, but each tool may be no larger than Ø33 mm (Ø1.3 in), 280 mm (11.0 in) long and 3 kg (6.6 lb). This is a machine for small end mills and ball cutters, not for face mills or boring heads.
Two built-in spindles are offered, 12,000 rpm (12K) and 20,000 rpm (20K), both rated 18.5 / 11 kW (24.8 / 14.8 hp) on a Ø65 mm (Ø2.6 in) bearing bore. The 12K is grease lubricated and the 20K oil-jet lubricated; both are jacket cooled from an oil cooler. The taper is BBT-40 with HSK-A63 as an option.
The table is rated for 400 kg (882 lb), half the 800 kg (1,764 lb) of the SMART Ua STEEL, and has a grid surface; the High Column version has seven 18 x 100 mm T-slots instead. The spindle nose sits 100 ~ 520 mm (3.9 ~ 20.5 in) above the table, the columns are 1,430 mm (56.3 in) apart and the spindle centre is 185 mm (7.3 in) from the column. All axes rapid at 20 m/min (787 ipm) on 4 / 4 / 7 kW (5.4 / 5.4 / 9.4 hp) motors.
The machine weighs 10,000 kg (22,046 lb), or 11,500 kg (25,353 lb) as the High Column version, stands 2,862 mm (112.7 in) or 3,012 mm (118.6 in) tall and covers 4,900 x 3,310 mm (192.9 x 130.3 in). Supply is 55 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 750 mm (29.5 in) |
| Z Axis Travel | 420 mm (16.5 in) |
| Distance Spindle Nose to Table | 100 ~ 520 mm (3.9 ~ 20.5 in) |
| Distance Column to Spindle Center | 185 mm (7.3 in) |
| Distance Between Columns | 1,430 mm (56.3 in) |
| Table Size | 1,200 x 700 mm (47.2 x 27.6 in) |
| Max Table Load | 400 kg (882 lb) |
| T-Slots | Grid type; High Column: 18 x 100 mm, 7 slots (width x pitch) |
| Max Spindle Speed | 12,000 rpm (12K) / 20,000 rpm (20K) |
| Spindle Motor Power | 18.5 / 11 kW (24.8 / 14.8 hp) |
| Spindle Taper | ISO#40, 7/24 Taper (BBT-40) (ISO#40, 1/10 (HSK-A63) opt.) |
| Spindle Bearing Bore | Ø65 mm (Ø2.6 in) |
| Spindle Drive | Built-in motor |
| Spindle Lubrication | 12K: Grease; 20K: Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 20 / 20 / 20 m/min (787 / 787 / 787 ipm) |
| Axis Motors Xyz | 4 / 4 / 7 kW (5.4 / 5.4 / 9.4 hp) |
| Dust Collector Motor | 3.7 kW (5.0 hp) |
| Tool Shank | MAS-403 BT-40 (HSK-A63 opt.) |
| Pull Stud | MAS P40T-1 (45°) |
| Tool Capacity | 50 |
| Max Tool Diameter (full magazine) | Ø33 mm (Ø1.3 in) |
| Max Tool Length | 280 mm (11.0 in) |
| Max Tool Weight | 3 kg (6.6 lb) |
| Tool Selection | Fixed address (Armless) |
| Power Requirement | 55 kVA |
| Dust Collector Height | 3,000 mm (118.1 in) indoor type / 4,015 mm (158.1 in) outdoor type |
| Machine Height | 2,862 mm (112.7 in); High Column 3,012 mm (118.6 in) |
| Machine Dimensions | 4,900 x 3,310 mm (192.9 x 130.3 in) (length x width) |
| Machine Weight | 10,000 kg (22,046 lb); High Column 11,500 kg (25,353 lb) |
| CNC Control | H-SMART |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 1,300 x 750 mm (51.2 x 29.5 in) of X and Y over a 1,200 x 700 mm (47.2 x 27.6 in) table
- Built-in dust collection with a 3.7 kW (5.0 hp) motor, in indoor or outdoor form
- 50-tool armless fixed-address magazine for long programs with many small cutters
- Spindle choice of 12,000 or 20,000 rpm at 18.5 / 11 kW (24.8 / 14.8 hp), with HSK-A63 optional
Limitations
- Tools are limited to Ø33 mm (Ø1.3 in), 280 mm (11.0 in) and 3 kg (6.6 lb)
- Z travel is 420 mm (16.5 in) and the nose-to-table range 100 ~ 520 mm (3.9 ~ 20.5 in), so tall parts are out
- Table load is 400 kg (882 lb), half that of the SMART Ua STEEL
- The table lists no coolant tank, so wet machining is not part of the listed specification
Best For
Frequently Asked Questions
01
A taller build of the same machine. Height rises from 2,862 mm (112.7 in) to 3,012 mm (118.6 in) and weight from 10,000 kg (22,046 lb) to 11,500 kg (25,353 lb). Its table has seven 18 x 100 mm T-slots where the standard table is grid type.
02
Tools up to Ø33 mm (Ø1.3 in), 280 mm (11.0 in) long and 3 kg (6.6 lb), in a 50-tool armless fixed-address magazine. Shanks are MAS-403 BT-40, with HSK-A63 as an option. Larger cutters such as face mills are outside the listed limits.
03
Both are rated 18.5 / 11 kW (24.8 / 14.8 hp). The 12K reaches 12,000 rpm with grease-lubricated bearings; the 20K reaches 20,000 rpm with oil-jet lubrication. With tools capped at Ø33 mm (Ø1.3 in), the 20K gives small cutters more of the surface speed they need.
04
Against the SMART Ua STEEL, the SMART UaX has a larger 1,200 x 700 mm (47.2 x 27.6 in) table but a lower 400 kg (882 lb) rating, 50 tools against 120, spindles to 20,000 rpm against 24,000 rpm, and a dust collector. It weighs 10,000 kg (22,046 lb), half the 20,000 kg (44,092 lb) of the SMART Ua STEEL.
Videos

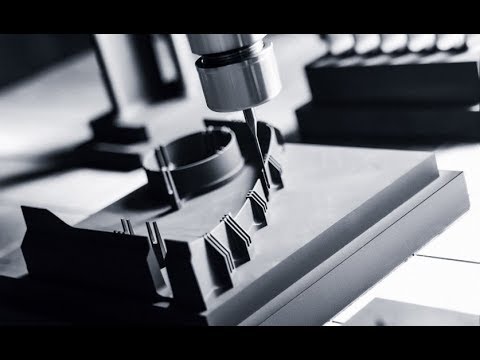

화천기계 - Hwacheon Machine Tools
