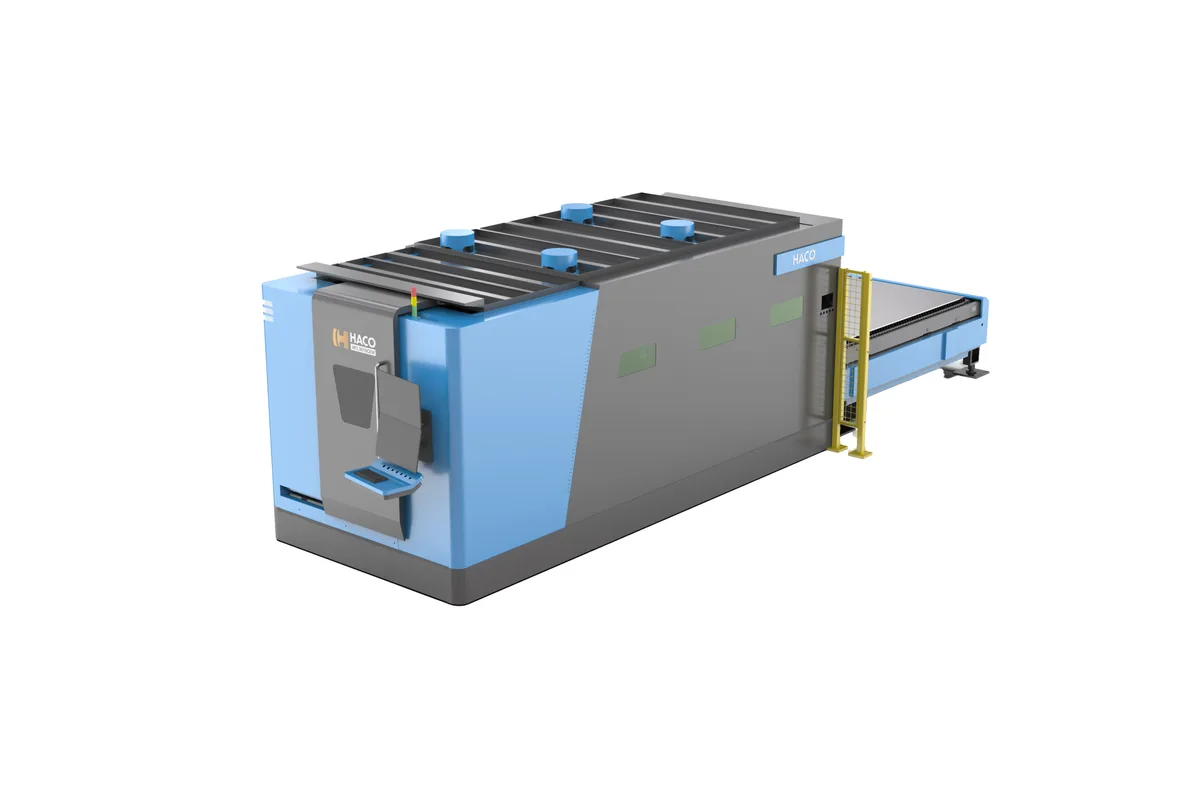

Haco HFL 3015 CE
Image: haco.com, Haco
Key Specifications
Accuracy
Repeatability
laser power
x axis travel
y axis travel
z axis travel
How much does the Haco HFL 3015 CE cost?
Price estimate
We do not have a price for the Haco HFL 3015 CE that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For standard-format sheet with table exchange, the Haco HFL 3015 CE is the base model of the CE line. It is fully enclosed, has dual interchangeable tables, and comes with a 3 kW, 6 kW or 12 kW source. X travel is 3,050 mm (120.1 in) and Y travel 1,550 mm (61.0 in).
The step up from the single-table C models is large. The CE accelerates at 2.8 G and reaches 170 m/min. Z travel is 290 mm (11.4 in), three times that of the HFL 3015 C at 95 mm (3.7 in), and the table carries 1.40 tons. The 12 kW source is offered only from this design upward. Which power makes sense depends on thickness: a machine that spends its life in thin sheet gains from acceleration at any power, while plate work is where the larger source pays.
Standard equipment includes a welded and annealed tubular base, an extruded aluminium Y beam, a camera with display for monitoring the cut, a proportional valve system that regulates oxygen, nitrogen and air pressure, and sectioned extraction with CNC-controlled doors. The source sits in an air-conditioned cabin. A light curtain and pneumatic door guard the table area.
Larger sheets are covered by the HFL 4020 CE, which has 4,050 mm (159.4 in) of X travel, and by two longer machines. All share this machine's speed, acceleration and accuracy figures of ±0.05 mm/m positioning and ±0.03 mm/m repeatability.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3 kW, 6 kW or 12 kW |
| X Axis Travel | 3,050 mm (120.1 in) |
| Y Axis Travel | 1,550 mm (61.0 in) |
| Z Axis Travel | 290 mm (11.4 in) |
| Max Simultaneous Speed | 170 m/min |
| Max Acceleration | 2.8 G |
| Positioning Accuracy | ±0.05 mm/m |
| Repeatability | ±0.03 mm/m |
| Max Table Load | 1.40 tons |
Specifications sourced from haco.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Dual interchangeable tables keep the laser cutting during loading
- Travels of 3,050 mm (120.1 in) by 1,550 mm (61.0 in) give margin around a full sheet
- 170 m/min maximum simultaneous speed and 2.8 G of acceleration
- Available with 3 kW, 6 kW or 12 kW
- Proportional valve regulation of oxygen, nitrogen and air pressure is standard
Limitations
- Table load of 1.40 tons limits thick plate at full sheet size
- Nesting software (CypNest or HacoSoft Laser) is an option
- ATEX fume extraction and larger dust storage are extras
- Needs room for the exchange table, unlike the front-loading C models
Best For
Frequently Asked Questions
01
X travel is 3,050 mm (120.1 in), Y travel 1,550 mm (61.0 in) and Z travel 290 mm (11.4 in). The maximum table weight is 1.40 tons.
02
Haco states that the HFL 3015 CE and CEW are available with 3kW, 6kW, and 12kW power sources. The control changes with the power: FSCUT2000 with CypCut E, FSCUT4000 with CypCut E at 6 kW, and FSCUT6000 with CypCut PRO at 12 kW.
03
A welded, annealed tubular table base, an extruded aluminium Y-axis beam, multi-compartment extraction with CNC-controlled doors, an integrated camera and display, a safety device with light curtain and pneumatic door, and a proportional valve system for the cutting gases.
04
Yes. The HFL 4020 CE has 4,050 mm (159.4 in) by 2,050 mm (80.7 in) of travel, and the HFL 6020 CE and HFL 6025 CE both have 6,050 mm (238.2 in) of X travel. Speed and acceleration are the same as on the HFL 3015 CE.
