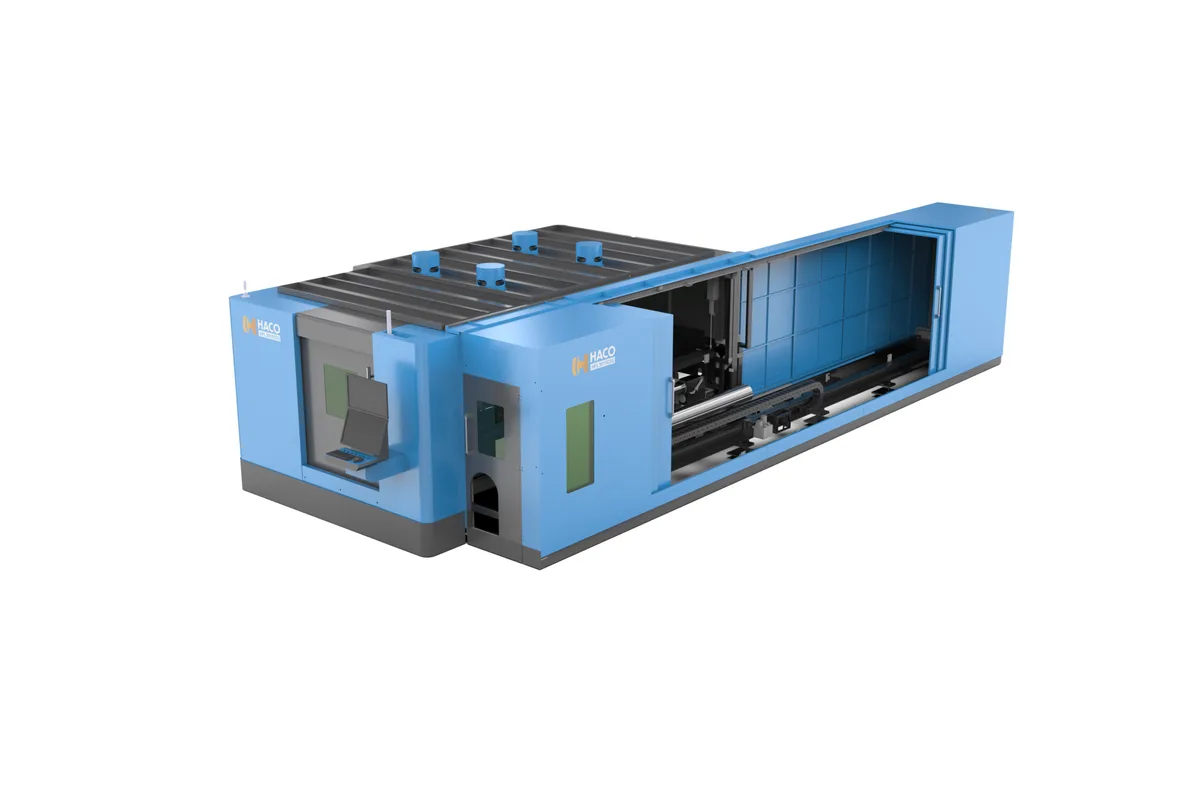

Haco HFL 4020 CEG
Image: haco.com, Haco
Key Specifications
Accuracy
Repeatability
laser power
x axis travel
y axis travel
z axis travel
How much does the Haco HFL 4020 CEG cost?
Price estimate
We do not have a price for the Haco HFL 4020 CEG that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Haco HFL 4020 CEG is the mid-size combi laser of the range, with a large-format flatbed and a two-chuck tube station at its side. Sheet travels are 4,030 mm (158.7 in) in X and 2,020 mm (79.5 in) in Y. The table is rated for 2.50 tons.
On the tube side nothing grows with the bed. The limits are the same as on the HFL 3015 CEG: 200 kg (441 lb) of tube weight and 200 mm (7.9 in) of diameter or side. So the choice between the two is a sheet decision. This machine is for the shop that already needs the larger sheet format and wants tube capability with it.
Performance figures are 150 m/min, 2.0 G on sheet and 1.5 G on tube. The flatbed-only HFL 4020 CE is quicker at 170 m/min and 2.8 G, and its travels are slightly longer in X and wider in Y, so the tube station takes a little from both speed and envelope. Positioning accuracy is ±0.05 mm/m and repeatability ±0.03 mm/m.
Sources of 3 kW, 6 kW or 12 kW are offered. Tubes go in from the side or the top through the sliding door. Parts can be drawn and nested at the console, the head sets its focal point by material thickness, and a stopped cut resumes where it left off. Z travel is 290 mm (11.4 in).
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3 kW, 6 kW or 12 kW |
| X Axis Travel | 4,030 mm (158.7 in) |
| Y Axis Travel | 2,020 mm (79.5 in) |
| Z Axis Travel | 290 mm (11.4 in) |
| Max Simultaneous Speed | 150 m/min |
| Max Acceleration Sheet | 2.0 G |
| Max Acceleration Tube | 1.5 G |
| Positioning Accuracy | ±0.05 mm/m |
| Repeatability | ±0.03 mm/m |
| Max Table Load | 2.50 tons |
| Max Tube Weight | 200 kg (441 lb) |
| Max Tube Size | 200 mm (7.9 in), diameter or side |
Specifications sourced from haco.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Large-format flatbed plus a two-chuck tube station
- Table load of 2.50 tons, the same as the HFL 4020 CE
- Tubes up to 200 kg (441 lb) and 200 mm (7.9 in)
- Side or top tube loading through a sliding door
- Available with a 3 kW, 6 kW or 12 kW source
Limitations
- Tube capacity is no larger than on the HFL 3015 CEG
- 150 m/min and 2.0 G on sheet, below the HFL 4020 CE
- Travels of 4,030 mm (158.7 in) by 2,020 mm (79.5 in) are slightly smaller than the flatbed-only model
- One process at a time: sheet or tube, not both
Best For
Frequently Asked Questions
01
The CEG adds two chucks for tube cutting. In exchange it is listed at 150 m/min and 2.0 G on sheet, where the HFL 4020 CE is listed at 170 m/min and 2.8 G. Table load is 2.50 tons on both.
02
No. Maximum tube weight is 200 kg (441 lb) and maximum tube size 200 mm (7.9 in), the same as on the HFL 3015 CEG and the HFL 6020 CEG.
03
X travel is 4,030 mm (158.7 in), Y travel 2,020 mm (79.5 in) and Z travel 290 mm (11.4 in). The table is rated for 2.50 tons.
04
FSCUT2000 with CypCut E, FSCUT4000 with CypCut E at 6 kW, or FSCUT6000 with CypCut PRO at 12 kW. Drawing and nesting are possible directly at the machine console.
