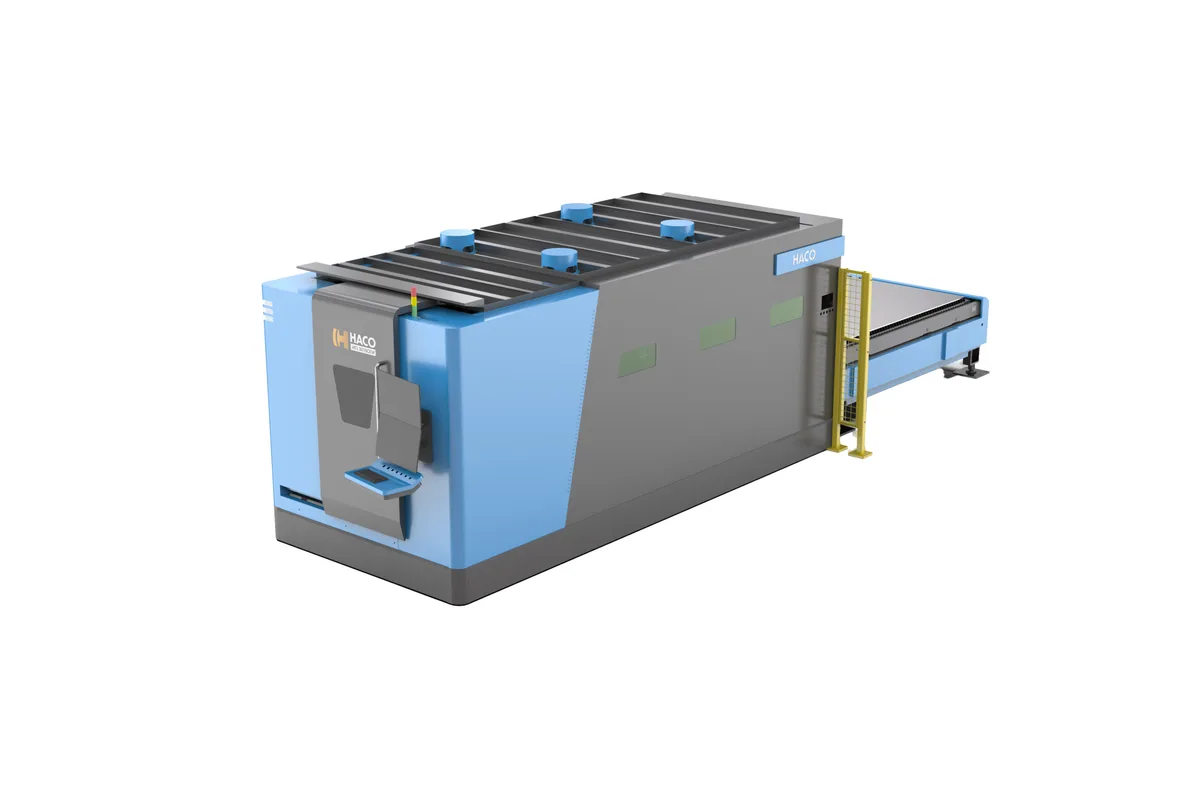

Haco HFL 3015 CEW
Image: haco.com, Haco
Key Specifications
Accuracy
Repeatability
laser power
x axis travel
y axis travel
z axis travel
How much does the Haco HFL 3015 CEW cost?
Price estimate
We do not have a price for the Haco HFL 3015 CEW that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Haco HFL 3015 CEW is an enclosed fiber laser with two interchangeable tables. Its axes travel 3,010 mm (118.5 in) in X and 1,505 mm (59.3 in) in Y, and it is sold with a 3 kW, 6 kW or 12 kW source.
Haco presents the CEW together with the HFL 3015 CE, and the two share every performance figure: 170 m/min maximum simultaneous speed, 2.8 G of acceleration, 290 mm (11.4 in) of Z travel and a table load of 1.40 tons. The printed difference is in the travels. The HFL 3015 CE has 3,050 mm (120.1 in) by 1,550 mm (61.0 in), so the CEW leaves less margin around a full sheet. Haco does not explain the W in the text, and a buyer comparing the two should ask what else changes.
The cutting area is fully enclosed, with a light curtain and pneumatic door around the table. A camera and display show the cut from outside. Extraction works through a multi-compartment structure whose CNC-controlled doors open only under the area being cut. The base is a welded, annealed tubular frame and the Y-axis beam is extruded aluminium, which is what makes 2.8 G practical.
Control follows the source power, from FSCUT2000 with CypCut E up to FSCUT6000 with CypCut PRO on the 12 kW machine. Nesting software, either CypNest or HacoSoft Laser, is on the option list and not in the base machine. So are the BTL 642 cutting head with FSCUT 8000 CNC, a QR code reader for calling up programs, and ATEX fume extraction.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3 kW, 6 kW or 12 kW |
| X Axis Travel | 3,010 mm (118.5 in) |
| Y Axis Travel | 1,505 mm (59.3 in) |
| Z Axis Travel | 290 mm (11.4 in) |
| Max Simultaneous Speed | 170 m/min |
| Max Acceleration | 2.8 G |
| Positioning Accuracy | ±0.05 mm/m |
| Repeatability | ±0.03 mm/m |
| Max Table Load | 1.40 tons |
Specifications sourced from haco.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Dual interchangeable tables in a fully enclosed cutting area
- 2.8 G of acceleration and 170 m/min maximum simultaneous speed
- Source options of 3 kW, 6 kW or 12 kW
- Integrated camera and display for watching the cut
- 290 mm (11.4 in) of Z travel
Limitations
- Travels of 3,010 mm (118.5 in) by 1,505 mm (59.3 in) leave little margin on a full sheet
- CypNest or HacoSoft Laser nesting software is optional equipment
- Table load of 1.40 tons limits thick plate at full sheet size
- The brochure does not say how the CEW differs from the CE beyond the table figures
Best For
Frequently Asked Questions
01
In the brochure table the HFL 3015 CEW has 3,010 mm (118.5 in) of X travel and 1,505 mm (59.3 in) of Y. The HFL 3015 CE has 3,050 mm (120.1 in) and 1,550 mm (61.0 in). Speed, acceleration, Z travel, accuracy and table load are identical. The text does not describe any other difference.
02
Maximum simultaneous speed is 170 m/min and maximum acceleration is 2.8 G. Positioning accuracy is ±0.05 mm/m and repeatability ±0.03 mm/m.
03
Haco lists 3 kW, 6 kW or 12 kW sources. The control is FSCUT2000 with CypCut E, FSCUT4000 with CypCut E at 6 kW, or FSCUT6000 with CypCut PRO at 12 kW. A BTL 642 cutting head with FSCUT 8000 CNC is optional.
04
Drawing and nesting are possible at the machine console. Offline nesting with CypNest or HacoSoft Laser is listed under optional equipment, as are a QR code reader for opening cutting programs and an ATEX fume extraction system.
