Yawei HLE-2040
Key Specifications
Accuracy
Repeatability
cutting area
x axis travel
y axis travel
z axis travel
How much does the Yawei HLE-2040 cost?
Price estimate
We do not have a price for the Yawei HLE-2040 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A four-metre table at moderate power: the Yawei HLE-2040 cuts 4,065 x 2,035 mm (160.0 x 80.1 in) and is offered with 3, 6 or 12 kW. It belongs to Yawei's HLE high-performance series, the line the maker describes as high performance at low running cost.
The figures that change from the HLE-1530 are the ones tied to the table. Worktable load is 1,800 kg (3,968 lb), the X stroke is 4,085 mm (160.8 in) and the Y stroke 2,055 mm (80.9 in). Speed stays at 170 m/min and Z at 300 mm (11.8 in).
Yawei's own range gives two alternatives at this size. The HLX-2040 covers the same cutting range at 200 m/min with 6, 12 or 20 kW. The HLB-2040 runs 140 m/min with a 1,500 kg (3,307 lb) table. The HLE sits between them, and it keeps the 3 kW entry option that the HLX-2040 does not list.
Structure is a gantry dual-drive on a high-rigidity bed, annealed for stress relief, which matters for holding ±0.03 mm (±0.0012 in) over a longer axis. The layout dimension is 11,500 x 5,600 x 2,300 mm (452.8 x 220.5 x 90.6 in). The interface includes a cutting parameter library, and the maker points to bright surface cutting for low taper. Listed applications are the electrical, home appliance and lift industries.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 4,065 x 2,035 mm (160.0 x 80.1 in) |
| X Axis Travel | 4,085 mm (160.8 in) |
| Y Axis Travel | 2,055 mm (80.9 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Max Trajectory Speed Xy | 170 m/min |
| Positioning Accuracy | ±0.03 mm (±0.0012 in) |
| Repeatability | ±0.02 mm (±0.0008 in) |
| Max Table Load | 1,800 kg (3,968 lb) |
| Machine Layout Dimensions | 11,500 x 5,600 x 2,300 mm (452.8 x 220.5 x 90.6 in) |
| Laser Power | 3, 6 or 12 kW |
Specifications sourced from en.yawei.cc — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,065 x 2,035 mm (160.0 x 80.1 in) cutting range with a 1,800 kg (3,968 lb) worktable
- Power options of 3, 6 or 12 kW, including a 3 kW entry level
- 170 m/min, faster than the 140 m/min of the HLB-2040
- High-rigidity bed with stress-relief annealing
- Repositioning accuracy of ±0.02 mm (±0.0008 in)
Limitations
- Stops at 12 kW; the HLX-2040 is offered up to 20 kW
- Z stroke of 300 mm (11.8 in)
- Layout dimension of 11,500 x 5,600 x 2,300 mm
- No machine weight in the table for this model
Best For
Frequently Asked Questions
01
The cutting range is 4,065 x 2,035 mm (160.0 x 80.1 in). The worktable carries a maximum of 1,800 kg (3,968 lb), and the strokes are 4,085 mm (160.8 in), 2,055 mm (80.9 in) and 300 mm (11.8 in) in X, Y and Z.
02
The laser generator power is listed as 3, 6 or 12 kW. Higher powers in the HLE series begin with the HLE-2580, which starts at 12 kW.
03
Both cut 4,065 x 2,035 mm (160.0 x 80.1 in) with 3, 6 or 12 kW. The HLE-2040 lists 170 m/min, a 300 mm Z stroke and 1,800 kg (3,968 lb) of table load. The HLB-2040 lists 140 m/min, 240 mm (9.4 in) and 1,500 kg (3,307 lb).
04
The machine layout dimension is 11,500 x 5,600 x 2,300 mm (452.8 x 220.5 x 90.6 in), given as length, width and height of the installed machine.
More from Yawei
Other CNC Laser Cutting Machines
Accurl SmartLINE X 3001.15
Prima Power LASERDYNE 811
Mitsubishi Electric GX-F Advanced II

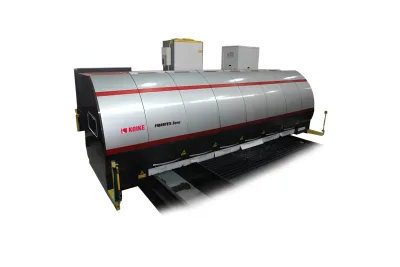

Koike Aronson Fibertex Zero DBC
