Prima Power LASERDYNE 811

Q: How much does the Prima Power LASERDYNE 811 cost?

The price estimate for the Prima Power LASERDYNE 811 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/prima-power-laserdyne-811#price; the request is passed to Prima Power or an authorised dealer.

Specs verified 2026-10-05 · primapower.com Updated 2026-10-05

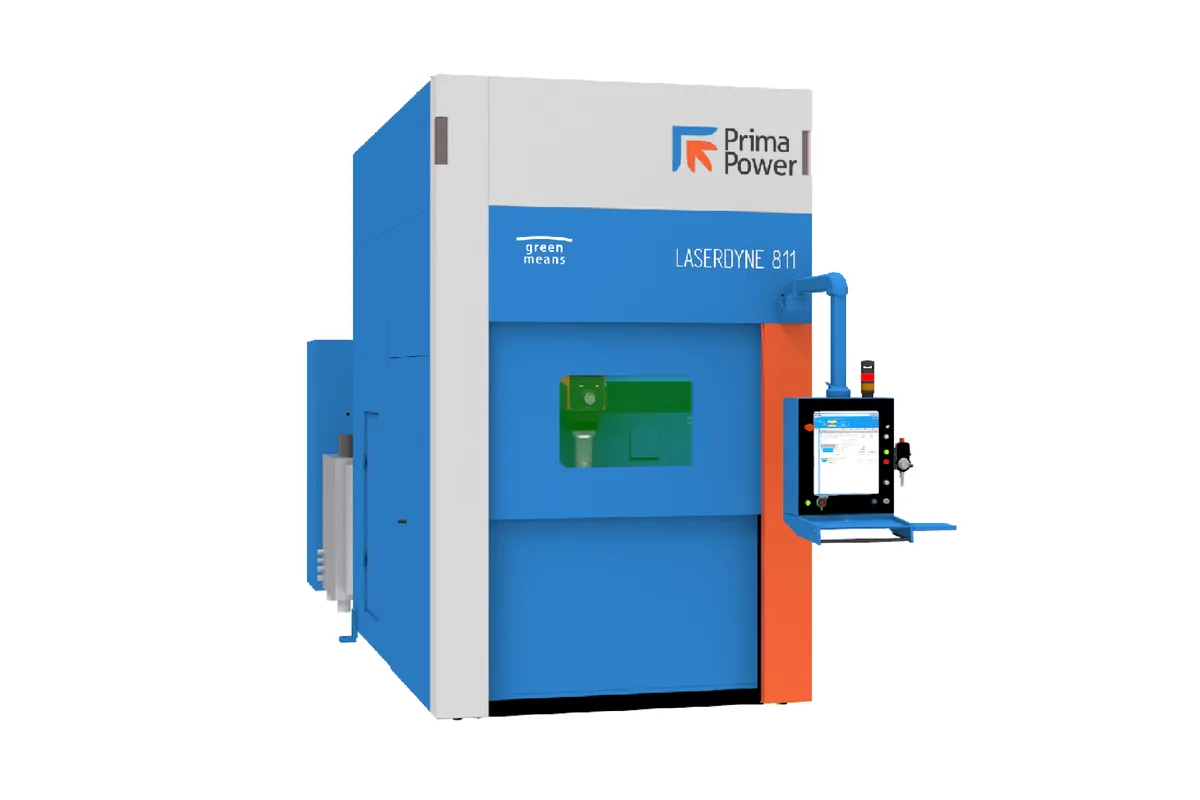

Prima Power LASERDYNE 811 multi-axis laser processing system

Image: primapower.com, Prima Power

Key Specifications

x axis travel

1,100 mm (43.5 in)

y axis travel

800 mm (31.5 in)

z axis travel

600 mm (24 in)

beamdirector c axis

900 degrees continuous motion

beamdirector d axis

300 degrees continuous motion (±150° from vertical)

axis speed xyz

> 50 m/min

How much does the Prima Power LASERDYNE 811 cost?

Price estimate

Uncertain

We do not have a price for the Prima Power LASERDYNE 811 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Prima Power LASERDYNE 811 is a compact multi-axis laser system for welding, drilling and cutting small to medium 3D parts. Travels are X 1,100 mm (43.5 in), Y 800 mm (31.5 in) and Z 600 mm (24 in), and Prima Power calls it the newest addition to the LASERDYNE line.

It is a faster machine than the 795 models, and the table shows by how much. Linear axes exceed 50 m/min, listed as > 50 m/min, with 1.2 g of acceleration on each axis; the LASERDYNE 795 XS is listed at 20 m/min. The BeamDirector turns at 0-135 rpm and accelerates at 87 rads/sec2, with 900 degrees of continuous motion in C and 300 degrees in D (±150° from vertical).

Precision figures are printed asymmetrically, which is worth reading closely. Linear accuracy is +/- 0.012 mm (0.0005 in), while repeatability is 0.025 mm (0.001 in). BeamDirector accuracy is +/- 15 arcsec and its repeatability 15 arcsec. Rotary and tilt axes are options whose speed depends on the model ordered.

The enclosure is laid out for production use. It has a large automated front door and two side doors, and an automated front turntable can be added to speed up small parts. The S94P controller streams system and process parameters over MTConnect and offers SPC data acquisition for quality records. Laser sources are the same as on the larger machines: fiber CW up to 6000 W, or QCW from 6000 W to 23000 W.

Full Specifications

Parameter	Value
X Axis Travel	1,100 mm (43.5 in)
Y Axis Travel	800 mm (31.5 in)
Z Axis Travel	600 mm (24 in)
Beamdirector C Axis	900 degrees continuous motion
Beamdirector D Axis	300 degrees continuous motion (±150° from vertical)
Axis Speed Xyz	> 50 m/min
Beamdirector Speed	0-135 rpm
Acceleration Xyz	1.2 g on each axis
Beamdirector Acceleration	87 rads/sec2
Accuracy Xyz	+/- 0.012 mm (0.0005 in)
Accuracy Beamdirector	+/- 15 arcsec
Repeatability Xyz	0.025 mm (0.001 in)
Repeatability Beamdirector	15 arcsec
Laser Source	Fiber CW: up to 6000 W; Fiber QCW: 6000 W – 23000 W

Specifications sourced from primapower.com — verified 2026-10-05

Strengths & Limitations

Strengths

Linear axis speed above 50 m/min with 1.2 g acceleration on each axis
Linear accuracy of +/- 0.012 mm (0.0005 in)
BeamDirector at 0-135 rpm with 900 degrees of C motion
MTConnect data streaming and SPC data acquisition
Automated front door, two side doors and an optional automated front turntable

Limitations

Travels of 1,100 x 800 x 600 mm limit part size
Repeatability of 0.025 mm (0.001 in) is a larger figure than the stated accuracy
The automated front turntable is an option
Rotary and tilt axis speed depends on the model ordered

Best For

Small to medium 3D parts in medical, aerospace and turbine work Shops needing process data records through SPC and MTConnect Drilling and welding at higher axis speeds than the 795 models Small parts cycled on the optional front turntable

Frequently Asked Questions

01 What are the travels of the LASERDYNE 811?

X axis 1,100 mm (43.5 in), Y axis 800 mm (31.5 in) and Z axis 600 mm (24 in). The BeamDirector adds 900 degrees of continuous motion in C and 300 degrees in D, which is ±150° from vertical.

02 How fast is the LASERDYNE 811?

X, Y and Z are listed at > 50 m/min with 1.2 g acceleration on each axis. The BeamDirector runs at 0-135 rpm with an acceleration of 87 rads/sec2. Rotary and tilt axis speed is variable and depends on the model ordered.

03 How accurate is the LASERDYNE 811?

X, Y and Z axis accuracy is +/- 0.012 mm (0.0005 in) and repeatability is 0.025 mm (0.001 in). The BeamDirector is accurate to +/- 15 arcsec with 15 arcsec repeatability.

04 What data does the LASERDYNE 811 provide to factory systems?

It uses MTConnect to stream system and process parameters in real time to the facility or operations management system. It also offers SPC Data Acquisition to support the quality control requirements of the process.

05 How does the LASERDYNE 811 compare with the LASERDYNE 795 XS?
