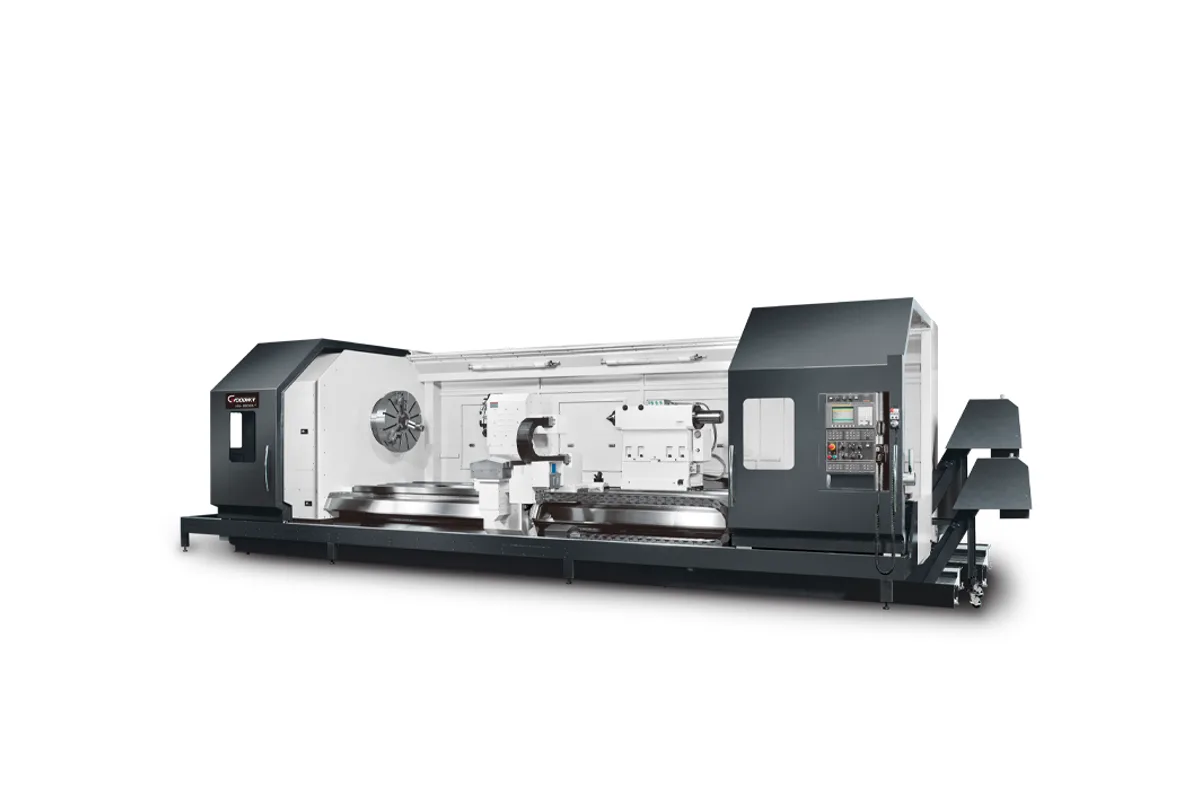

Goodway HA series flat-bed turning centers (HA-1600)

Image: goodwaycnc.com, Goodway

Key Specifications

Max Spindle

800 rpm / 600 rpm / 500 rpm / 300 rpm / 250 rpm (Varies by model)

Spindle Power

37 kW (49.6 hp) (cont.)

Max Turn Length

2,000 mm (78.7 in) ~ 10,000 mm (393.7 in)

max swing diameter

Ø1,600 mm (63.0 in)

max turning diameter

Ø1,300 mm (51.2 in)

spindle power 15 min

45 kW (60.3 hp) (15 min.)

How much does the Goodway HA-1600 cost?

Price estimate

Uncertain

We do not have a price for the Goodway HA-1600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Middle of three swings in Goodway's flat-bed range, the HA-1600 turns Ø1,300 mm (51.2 in) over a Ø1,600 mm (63.0 in) swing. Bed lengths are the same nine steps offered across the series, L2 to L10, for turning lengths of 2,000 mm (78.7 in) up to 10,000 mm (393.7 in).

What a buyer gets by moving up from the HA-1400 is cross travel as well as swing. X-axis travel is 695 mm (27.4 in), and the larger clearance over the bed admits bigger flanges and journals on an otherwise long, slender part. The headstock, motor and tailstock are unchanged.

That headstock is a 3-speed geared unit behind a 37 kW (49.6 hp) continuous, 45 kW (60.3 hp) 15 min. motor. Goodway states its maximum torque as 13,300 Nm and describes the casting as a one-piece headstock of 4,000 kg. The bed is a wide-span, four-way cast iron base.

Long parts need support, and the HA is equipped for it. The programmable tailstock carries a Ø200 mm (7.9 in) rotary quill, with Ø250 mm (9.8 in) optional, and an MT#6 dead center. Several steady rests can be mounted. For internal work Goodway offers a large anti-vibration boring bar, and for general turning a 12-station servo turret or a four-way toolpost. Milling and drilling are possible with the optional live tooling turret, which runs at 3,000 rpm and takes its drive from a spindle motor according to the table.

Full Specifications

Parameter	Value
Max Swing Diameter	Ø1,600 mm (63.0 in)
Max Turning Diameter	Ø1,300 mm (51.2 in)
Max Turning Length	2,000 mm (78.7 in) ~ 10,000 mm (393.7 in)
Spindle Motor Power	37 kW (49.6 hp) (cont.)
Spindle Power 15 Min	45 kW (60.3 hp) (15 min.)
Max Spindle Speed	800 rpm / 600 rpm / 500 rpm / 300 rpm / 250 rpm (Varies by model)
X Axis Travel	695 mm (27.4 in)
Z Axis Travel	2,150 mm (84.6 in) ~ 10,150 mm (399.6 in)
Turret Stations	12 (8 / 4 opt.)
Live Tooling Stations	12 (8 opt.) (opt.)
Live Tooling Drive Motor	Spindle motor (opt.)
Live Tooling Speed	3,000 rpm (opt.)
Tailstock Quill Center Taper	MT#6 (dead center)
Tailstock Quill Diameter	Ø200 mm (7.9 in) Rotary type (Ø250 mm (9.8 in) opt.)

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø1,300 mm (51.2 in) turning diameter with 695 mm (27.4 in) of X travel
Nine bed lengths, from 2,000 mm (78.7 in) to 10,000 mm (393.7 in) of turning length
One-piece headstock casting of 4,000 kg with a 3-speed gearbox
Tailstock quill of Ø200 mm (7.9 in), or Ø250 mm (9.8 in) as an option
Anti-vibration boring bar and four-way toolpost available on request

Limitations

Spindle speed is 800 rpm at most and varies by configuration
Motor power is the same 37 kW (49.6 hp) continuous as on the smaller HA-1400
The live tooling turret is optional
The tailstock center is an MT#6 dead center

Best For

Long shafts with flanges up to Ø1,300 mm (51.2 in) Deep boring of long hollow parts with the anti-vibration bar Shipbuilding and energy components that need steady rest support

Frequently Asked Questions

01 What is the swing of the HA-1600?

Maximum swing diameter is Ø1,600 mm (63.0 in) and maximum turning diameter Ø1,300 mm (51.2 in). X-axis travel is 695 mm (27.4 in). The HA-1400 swings Ø1,400 mm (55.1 in) and the HA-2000 swings Ø2,000 mm (78.7 in).

02 How is long work supported on the HA-1600?

By a programmable tailstock with a Ø200 mm (7.9 in) rotary quill and MT#6 dead center, and by steady rests. Goodway states that multiple steady rests are available and that they allow a maximum workpiece outer diameter of Ø1,000 mm.

03 What is the Z-axis travel of the HA-1600?

From 2,150 mm (84.6 in) to 10,150 mm (399.6 in), according to the bed chosen. The matching maximum turning lengths run from 2,000 mm (78.7 in) to 10,000 mm (393.7 in).

04 Does the HA-1600 have a C-axis?

In the M variation, together with the live tooling turret. Goodway describes a Cf-axis with a disk brake system, driven by a servo motor with 1,500 Nm of continuous torque, and a dynamic accuracy within ± 0.02°.
