Goodway HA-1400
Image: goodwaycnc.com, Goodway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max swing diameter
max turning diameter
spindle power 15 min
How much does the Goodway HA-1400 cost?
Price estimate
We do not have a price for the Goodway HA-1400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

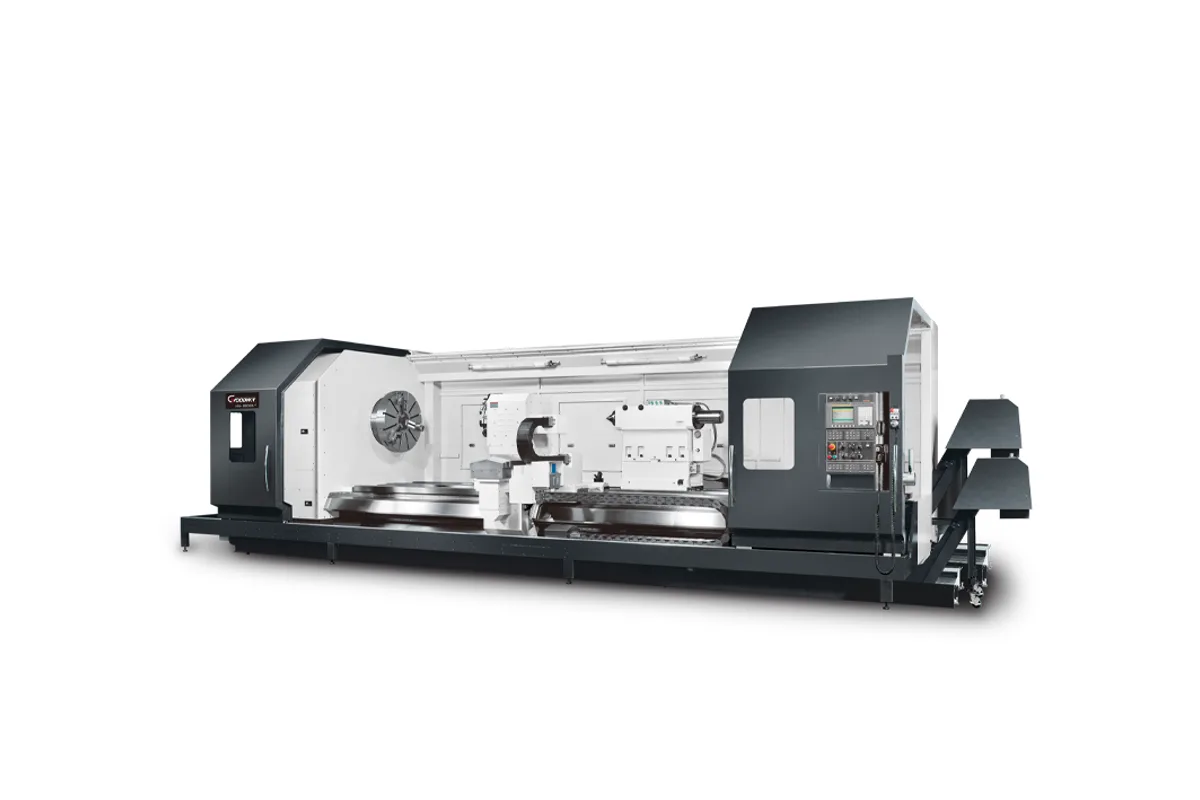

The Goodway HA-1400 is a flat-bed CNC lathe for very long work: Ø1,400 mm (55.1 in) of swing, Ø1,100 mm (43.3 in) of turning diameter and turning lengths from 2,000 mm (78.7 in) to 10,000 mm (393.7 in). It is the smallest swing in the HA series, and Goodway designates the beds L2 through L10.
Unlike Goodway's slant-bed machines, the HA sits on a one-piece cast iron base with four box ways, and the X-axis saddle and tailstock run on separate guideways. The benefit on a long bed is practical. The tailstock and steady rests can be positioned without the carriage ways being involved, and wear from one does not affect the other.
A 3-speed geared headstock, a single casting that Goodway says weighs 4,000 kg, takes its drive from a motor rated 37 kW (49.6 hp) continuous and 45 kW (60.3 hp) for 15 min. Maximum torque is given as 13,300 Nm. Top speed depends on the configuration: the table prints 800, 600, 500, 300 and 250 rpm with the note that it varies by model, so the speed for a particular chuck and bore has to be confirmed.
X travel on this model is 595 mm (23.4 in). Tooling is a 12-station servo turret, with 8-station and four-way toolpost alternatives. A live tooling turret at 3,000 rpm and a C-axis make up the M variation. The tailstock has a Ø200 mm (7.9 in) rotary quill with an MT#6 dead center.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø1,400 mm (55.1 in) |
| Max Turning Diameter | Ø1,100 mm (43.3 in) |
| Max Turning Length | 2,000 mm (78.7 in) ~ 10,000 mm (393.7 in) |
| Spindle Motor Power | 37 kW (49.6 hp) (cont.) |
| Spindle Power 15 Min | 45 kW (60.3 hp) (15 min.) |
| Max Spindle Speed | 800 rpm / 600 rpm / 500 rpm / 300 rpm / 250 rpm (Varies by model) |
| X Axis Travel | 595 mm (23.4 in) |
| Z Axis Travel | 2,150 mm (84.6 in) ~ 10,150 mm (399.6 in) |
| Turret Stations | 12 (8 / 4 opt.) |
| Live Tooling Stations | 12 (8 opt.) (opt.) |
| Live Tooling Drive Motor | Spindle motor (opt.) |
| Live Tooling Speed | 3,000 rpm (opt.) |
| Tailstock Quill Center Taper | MT#6 (dead center) |
| Tailstock Quill Diameter | Ø200 mm (7.9 in) Rotary type (Ø250 mm (9.8 in) opt.) |
Specifications sourced from goodwaycnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Turning length from 2,000 mm (78.7 in) to 10,000 mm (393.7 in)
- Four box way flat bed with separate guideways for saddle and tailstock
- 3-speed geared spindle with 13,300 Nm of maximum torque, per Goodway
- 37 kW (49.6 hp) continuous, 45 kW (60.3 hp) 15 min. motor
- Steady rests for workpieces up to Ø1,000 mm are available
Limitations
- Maximum spindle speed varies by configuration, from 250 rpm to 800 rpm, and is not stated per model
- X travel is 595 mm (23.4 in), the shortest in the HA series
- Live tooling and C-axis are options
- The table does not give chuck size or spindle bore per model
Best For
Frequently Asked Questions
01
Goodway lists maximum turning lengths from 2,000 mm (78.7 in) to 10,000 mm (393.7 in), with Z-axis travel from 2,150 mm (84.6 in) to 10,150 mm (399.6 in). The beds are designated L2 to L10.
02
03
A 3-speed geared spindle driven by a motor rated 37 kW (49.6 hp) continuous and 45 kW (60.3 hp) for 15 min. Goodway states a maximum torque output of 13,300 Nm. The maximum speed printed in the table varies by model between 250 rpm and 800 rpm.
04
The table lists a 12-station turret with 8-station and 4-station alternatives. Goodway also mentions a four-way toolpost and a large anti-vibration boring bar on request. A 12-station live tooling turret, with an 8-station alternative, is optional at 3,000 rpm.
