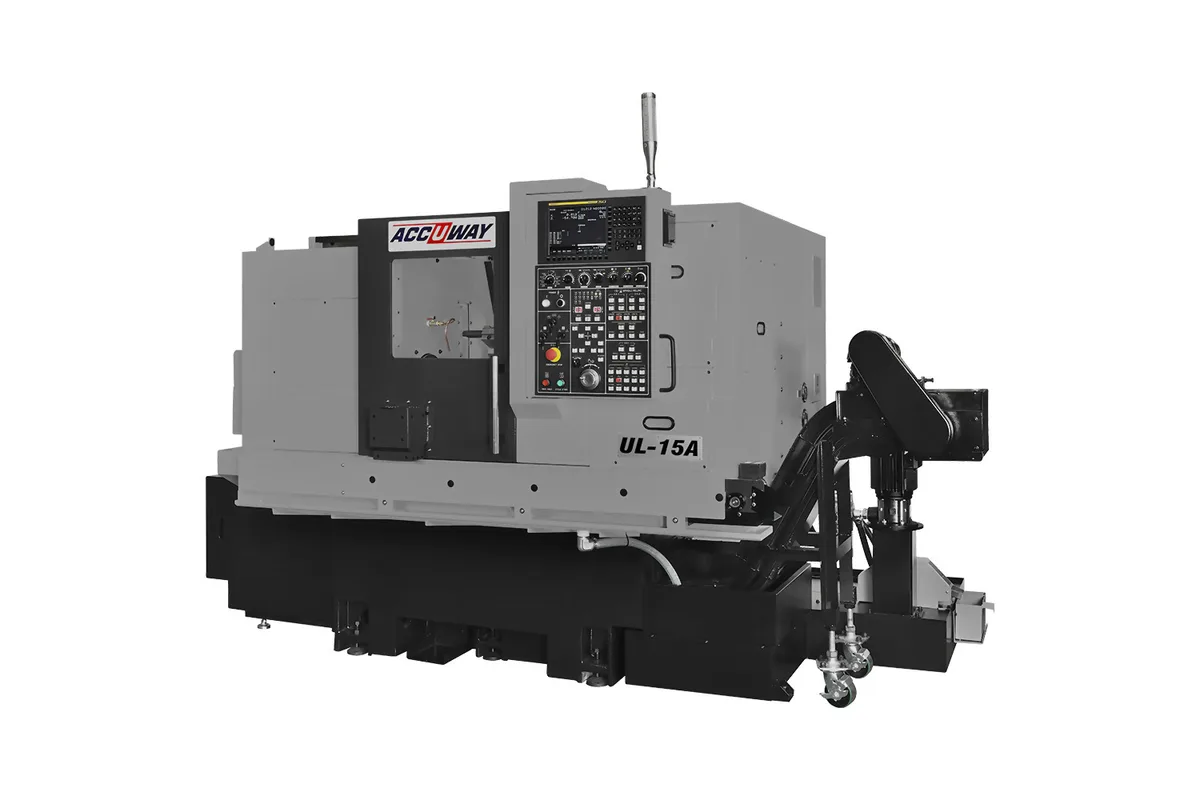

Accuway UL-15A
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UL-15A cost?
Price estimate
We do not have a price for the Accuway UL-15A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UL-15A is a two-turret version of the UL-15, set up for bar work in a collet. Accuway heads the page Two Turret Flat Bed CNC Turning Center and files it under two turret, single spindle lathes.
Its tooling row reads BOT+ Gang type with 8+5 stations. So the first tool carrier is an 8-station turret, hydraulically driven, and the second is a gang slide with five positions. Each has its own pair of axes. The X1/X2 travel row gives 175/260 mm (6.9/10.2 in) and the Z1/Z2 row 350/260 mm (13.8/10.2 in), with rapids of 20/12 m/min (787/472 in/min) on both.
The spindle is fixed at one specification: A2-5 nose, CK42 Collet Chuck, 44 mm (1.7 in) bar capacity, 6,000 rpm and 11/15 kW (14.8/20.1 hp). A collet instead of a jaw chuck, together with two tool carriers, describes a machine for producing bar parts quickly, with the turret turning the outside while the gang tools drill or bore, or with one roughing ahead of the other.
Maximum turning diameter is 260 mm (10.2 in) and turning length 250 mm (9.8 in). The control is a FANUC 0i-TF. No rotary tool figures, no Y axis and no tailstock rows are given, and the page has no accessory lists. The machine is 3.1 x 1.75 x 1.85 m (122.0 x 68.9 x 72.8 in) and weighs 3,000 kg (6,614 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-TF |
| Swing Over Bed | 455 mm (17.9 in) |
| Swing Over Saddle | 260 mm (10.2 in) |
| Max Turning Diameter | 260 mm (10.2 in) |
| Max Turning Length | 250 mm (9.8 in) |
| Spindle Nose | A2-5 |
| Chuck | CK42 Collet Chuck |
| Bar Capacity | 44 mm (1.7 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X1 X2 Axis Travel | 175/260 mm (6.9/10.2 in) |
| Z1 Z2 Axis Travel | 350/260 mm (13.8/10.2 in) |
| Rapid Traverse X1 X2 | 20/12 m/min (787/472 in/min) |
| Rapid Traverse Z1 Z2 | 20/12 m/min (787/472 in/min) |
| Turret Tooling | BOT+ Gang type |
| Turret Drive | Hydraulic |
| Turret Stations | 8+5 |
| Square Tool Shank T1 | T1: 25 mm (1.0 in) |
| Round Tool Shank T1 T2 | T1/T2: 32/25 mm (1.3/1.0 in) |
| Machine Dimensions | L x W x H: 3.1 x 1.75 x 1.85 m (122.0 x 68.9 x 72.8 in) |
| Machine Weight | 3,000 kg (6,614 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two tool carriers, 8+5 stations, on separate axes
- CK42 Collet Chuck with 44 mm (1.7 in) bar capacity
- 6,000 rpm spindle with 11/15 kW (14.8/20.1 hp)
- FANUC 0i-TF control for both tool carriers
- 3,000 kg (6,614 lb) in a 3.1 m long machine
Limitations
- No rotary tool or Y-axis figures in the table
- Second axes rapid at 12 m/min (472 in/min)
- No tailstock rows and no accessory lists on the page
- Single spindle specification, bar capacity 44 mm (1.7 in)
Best For
Frequently Asked Questions
01
The tooling system row reads BOT+ Gang type and the number of tools 8+5 stations; the turret driven type is hydraulic. The round tool shank row gives T1/T2: 32/25 mm (1.3/1.0 in) and the square shank row T1: 25 mm (1.0 in).
02
The X1/X2 axis travel row reads 175/260 mm (6.9/10.2 in) and the Z1/Z2 row 350/260 mm (13.8/10.2 in). Rapid traverse for both pairs is given as 20/12 m/min (787/472 in/min).
03
The UL-15 has one turret, a tailstock, three spindle columns and a FANUC 0i-T control, and weighs 2,850 kg (6,283 lb). The UL-15A has a turret plus a gang slide, a collet chuck, one spindle specification, a FANUC 0i-TF control and weighs 3,000 kg (6,614 lb).
04
Maximum turning diameter 260 mm (10.2 in) and maximum turning length 250 mm (9.8 in), with a 455 mm (17.9 in) swing over bed. Bar capacity through the collet chuck is 44 mm (1.7 in).
