Ganesh GEN TURN 78-MSY

Q: How much does the Ganesh GEN TURN 78-MSY cost?

The price estimate for the Ganesh GEN TURN 78-MSY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-turn-78-msy#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

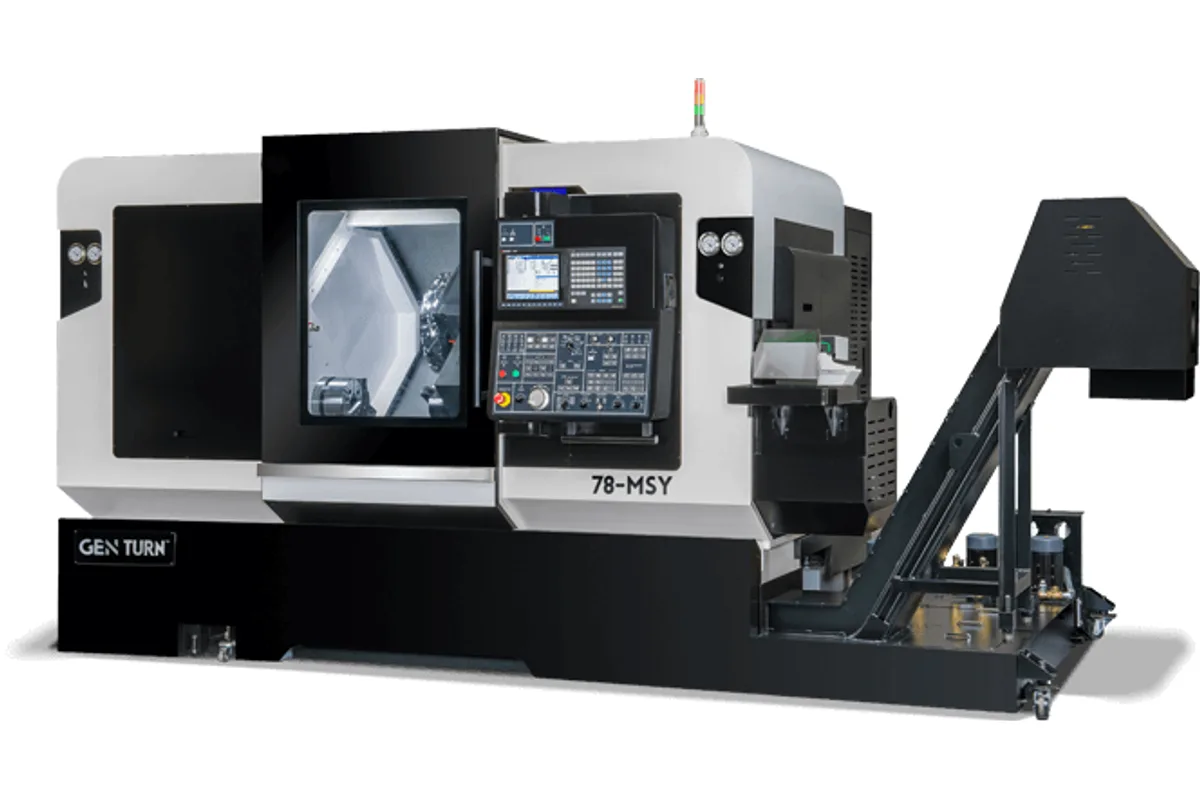

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

4,000 rpm (60 - 4,000 rpm, integral refrigerated spindle)

Rapid Traverse

630 / 236 / 1,574 ipm (16 / 6 / 40 m/min) X / Y / Z

Spindle Power

30 HP (30 min duty rating) / 20 HP (constant duty rating); 15 / 22 kW

Max Turn Length

24.8 in (630 mm)

max turning diameter

12.2 in (310 mm) maximum / 8.2 in (210 mm) standard

center distance

41.7 in (1,061 mm) between spindle centers

How much does the Ganesh GEN TURN 78-MSY cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN TURN 78-MSY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The GEN TURN 78-MSY is the big-bar turning center of the range: 3.070 in (78 mm) through the main spindle drawtube, a 10 in chuck included, and a 16-station live turret with a Y axis. Expand Machinery calls it a 6-axis mill/turn lathe. It is built for work the smaller turret machines cannot hold, with a maximum turning diameter of 12.2 in (310 mm) and a turning length of 24.8 in (630 mm).

The main spindle is an integral, refrigerated unit running 60 - 4,000 rpm, rated 30 HP on the 30 min duty rating and 20 HP constant. The sub-spindle is smaller on purpose: a 2.559 in (65 mm) drawtube, an 8 in chuck and 15 HP on the 30 min rating, with a 10 in chuck optional. B-axis travel is 29.31 in (744 mm) at a rapid of 1,573 ipm (40 m/min).

Milling capability is a step above the smaller turret machines. The BMT-65 turret drives tools at 6,000 rpm with 7.5 HP (5.5 kW) and 14.75 ft-lb (20 Nm) of torque, where the GEN TURN C52 MYS has 1.34 HP (1.0 kW). Any of the 16 stations can hold an ID, OD or live tool, and the maker notes that each station can mount multiple tools. Adjacent tools change in 0.2 sec. The Y axis offers ±1.968 in (±50 mm), and the C axis resolves 360,000 radial positions for contouring.

Square tools are 1 in (25 mm), round tools 32 mm, collets ER-32. X travel is 9.05 in (230 mm). The machine weighs 17,650 lb (8,000 kg), measures 145 x 82 x 82 in before a 44 in chip conveyor and needs 56 kVA, 130 amps at 220 VAC. With one turret, only one spindle is being cut at a time. The GEN TURN 78-TTMY adds a second turret for simultaneous work.

Full Specifications

Parameter	Value
Max Turning Diameter	12.2 in (310 mm) maximum / 8.2 in (210 mm) standard
Max Turning Length	24.8 in (630 mm)
Center Distance	41.7 in (1,061 mm) between spindle centers
Bar Capacity	3.070 in (78 mm) drawtube ID
Spindle Bore	88 mm (3.465 in)
Spindle Nose	A2-6
Chuck Size	10 in (with 78 mm bore), included
Spindle Center Height	40 in (1,000 mm)
Max Spindle Speed	4,000 rpm (60 - 4,000 rpm, integral refrigerated spindle)
Spindle Motor Power	30 HP (30 min duty rating) / 20 HP (constant duty rating); 15 / 22 kW
Sub Spindle Nose	A2-6
Sub Spindle Bar Capacity	2.559 in (65 mm) drawtube ID
Sub Spindle Chuck Size	8 in (with 65 mm bore), included; 10 in optional
Sub Spindle Speed	4,000 rpm (60 - 4,000 rpm, integral spindle)
Sub Spindle Power	15 HP (30 min duty rating) / 10 HP (constant duty rating)
Turret Stations	16 (any combination of 16 ID, OD or live tool stations)
Turret Index Time	0.2 sec adjacent tool / 1.2 sec 180° index, high-speed servo indexing
Live Tool Power	7.5 HP (5.5 kW)
Live Tool Speed	6,000 rpm
Live Tool Torque	14.75 ft-lb (20 Nm)
Tool Size	1 in (25 mm) square tools, 32 mm round tools, ER-32 collets
Turret Tooling	BMT-65 base mount tooling
B Axis Travel	29.31 in (744 mm)
B Axis Rapid Traverse	1,573 ipm (40 m/min)
C Axis	360,000 radial positions with full contouring capability, 600 rpm
X Axis Travel	9.05 in (230 mm)
Y Axis Travel	±1.968 in (±50 mm)
Rapid Traverse Rate	630 / 236 / 1,574 ipm (16 / 6 / 40 m/min) X / Y / Z
Hydraulic System	8 gallons (30 liters) with 5 HP (3.5 kW) pump motor
Coolant Tank Capacity	74 gallons (280 liters)
Machine Weight	17,650 lb (8,000 kg)
Power Requirement	56 kVA, 220 VAC ±5%, 3-phase, 60 Hz, 130 amps
Air Requirement	85 psi at 8 cfm
Machine Dimensions	145 x 82 x 82 in (L x D x H), + 44 in for chip conveyor

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

3.070 in (78 mm) bar capacity with a 10 in chuck included on the main spindle
30 HP (30 min duty rating) integral refrigerated main spindle, 60 - 4,000 rpm
Live tools with 7.5 HP (5.5 kW) and 14.75 ft-lb (20 Nm) at up to 6,000 rpm on BMT-65 tooling
Y axis of ±1.968 in (±50 mm) and full C-axis contouring on both spindles
0.2 sec adjacent-tool indexing by servo

Limitations

One turret serves both spindles, so the two spindles cannot be cut simultaneously
Sub-spindle bar capacity is 2.559 in (65 mm), below the 3.070 in (78 mm) of the main spindle
Top speed of 4,000 rpm limits surface speed on small diameters
Heavy services: 56 kVA and 130 amps at 220 VAC, and 17,650 lb (8,000 kg) on the floor

Best For

Bar work up to 3.070 in (78 mm) Chucked parts up to 12.2 in (310 mm) in diameter Shafts up to 24.8 in (630 mm) long with milled features Turned parts needing real milling torque from the turret

Frequently Asked Questions

01 What is the bar capacity of the GEN TURN 78-MSY?

The main spindle drawtube ID is 3.070 in (78 mm) inside an 88 mm (3.465 in) spindle bore, and a 10 in chuck with a 78 mm bore is included. The sub-spindle drawtube is 2.559 in (65 mm), with an 8 in chuck included and a 10 in chuck optional.

02 How strong is the live tooling?

The live tool drive is 7.5 HP (5.5 kW) at up to 6,000 rpm with 14.75 ft-lb (20 Nm) of torque, on BMT-65 base mount tooling. Tools are 1 in (25 mm) square or 32 mm round, with ER-32 collets. Any combination of ID, OD or live tools fits the 16 stations.

03 What are the travels and rapids?

X travel is 9.05 in (230 mm) and Y is ±1.968 in (±50 mm). B-axis travel is 29.31 in (744 mm). Rapids are 630 / 236 / 1,574 ipm (16 / 6 / 40 m/min) in X / Y / Z. Maximum turning length is 24.8 in (630 mm), with 41.7 in (1,061 mm) between spindle centers.

04 How does it compare with the GEN TURN 78-TTMY?

Both take 78 mm bar at 4,000 rpm. The GEN TURN 78-MSY has one 16-station turret and a longer turning length of 24.8 in (630 mm). The GEN TURN 78-TTMY has twin turrets with 32 stations for simultaneous cutting on both spindles, a turning length of 15.75 in (400 mm), and weighs 22,751 lb (10,320 kg).

05 What does the 78-MSY need for installation?

56 kVA at 220 VAC ±5%, 3-phase, 60 Hz, 130 amps, and air at 85 psi and 8 cfm. The machine is 145 x 82 x 82 in (L x D x H) plus 44 in for the chip conveyor and weighs 17,650 lb (8,000 kg). The coolant tank holds 74 gallons (280 liters).
