DN Solutions PUMA TT 1300 SYYB

Est. $290,000 - $360,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

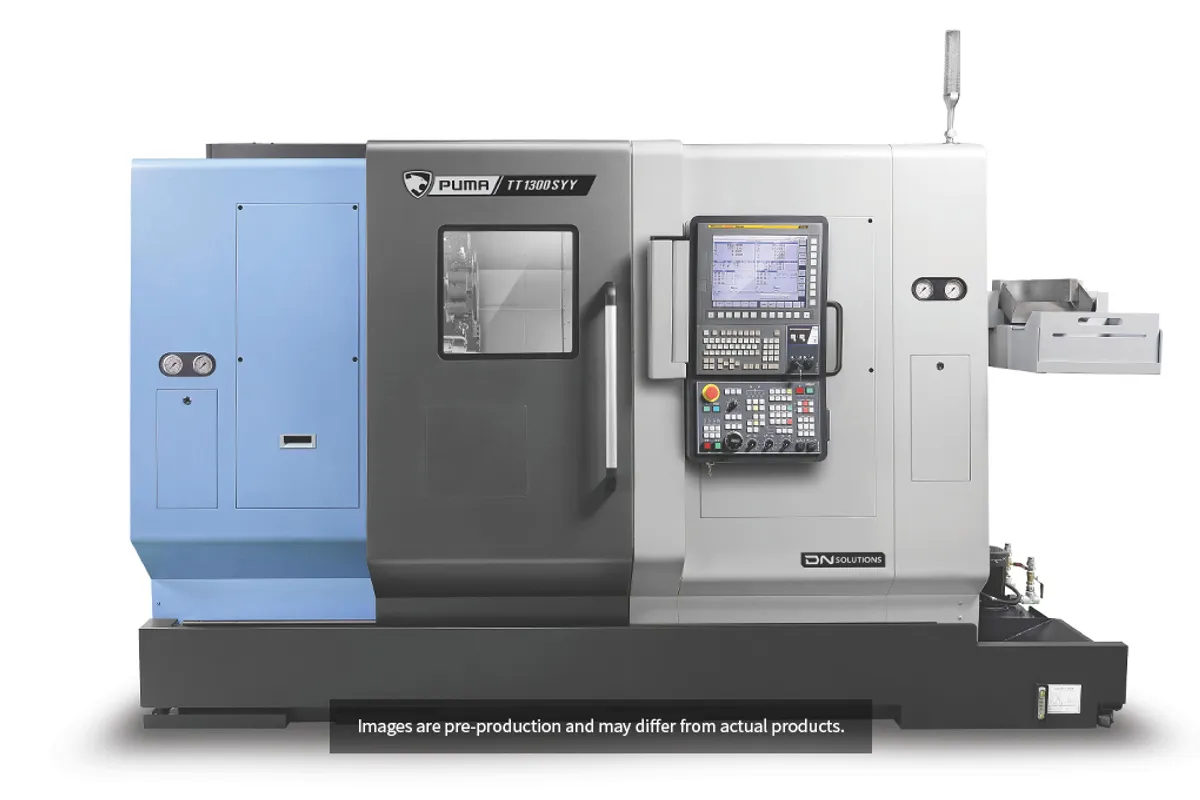

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

135 mm

Y Travel

80 mm

Z Travel

530 mm (21 in)

Max Spindle

6,000 rpm

Spindle Power

15 kW (20 hp)

Max Turn Length

120 mm

How much does the DN Solutions PUMA TT 1300 SYYB cost?

Estimated price range

Est.$290,000 - $360,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA TT 1300 SYYB is the 6 in chuck version of the PUMA TT 1300 SYY. It keeps that machine's envelope, 175 mm (7 in) in diameter by 120 mm long, and its 6,000 rpm limit, and raises the main spindle to 15 kW (20 hp) and 116 N·m (86 ft-lb). The PUMA TT 1300 SYY has a 5 in chuck, 11 kW (15 hp) and 93 N·m (69 ft-lb).

So the letter B buys grip and torque, not capacity. A 6 in chuck on a 175 mm (7 in) envelope gives more jaw to hold a short blank against a roughing cut, and the higher torque lets that cut be taken at a lower speed on tougher material. The sub-spindle is unchanged at 11 kW (15 hp) and 6,000 rpm, which leaves the machine front-heavy by design. Rough and mill the first side hard, hand the part over, and keep the second side light.

Milling is where the model name matters. DN's series text gives the SYY machines a Y axis on both the upper and the lower turret, and this model's table lists 80 mm of Y travel with rotary tools to 6,000 rpm and 12 turret stations. Be aware that the PUMA TT 1300 SYB is printed with the same value in every one of those rows. Nothing in the figures marks out the extra Y axis, and DN's sentence names the SYY without mentioning the B versions. A buyer paying for Y on both turrets should see it itemised.

The axes move 135 mm in X and 530 mm (21 in) in Z. Rapid traverse is 40 m/min (1,575 ipm) in Z, the figure DN quotes for the series, and 30 m/min (1,181 ipm) in X. Guideways are roller LM type.

Installed, the machine is 3,510 mm (138 in) long, 2,300 mm (91 in) wide and 2,070 mm (81 in) high, and it weighs 8,100 kg (17,857 lb) against 8,000 kg (17,637 lb) for the PUMA TT 1300 SYY. DN also lists parts catcher and unloader systems that work independently at the left and right spindles, the usual companion to a bar-fed machine left to run on its own.

Full Specifications

Parameter	Value
Chuck Size	6 in
Max Turning Diameter	175 mm (7 in)
Max Turning Length	120 mm
Rapid Traverse X	30 m/min (1,181 ipm)
Rapid Traverse Z	40 m/min (1,575 ipm)
X-Axis Travel	135 mm
Y-Axis Travel	80 mm
Z-Axis Travel	530 mm (21 in)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	15 kW (20 hp)
Spindle Torque	116 N·m (86 ft-lb)
Sub Spindle Speed	6,000 rpm
Sub Spindle Power	11 kW (15 hp)
Turret Stations	12
Live Tool Speed	6,000 rpm
Floor Space Required	3,510 × 2,300 × 2,070 mm (138 × 91 × 81 in)
Machine Weight	8,100 kg (17,857 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

116 N·m (86 ft-lb) and 15 kW (20 hp) at the main spindle, up from 93 N·m (69 ft-lb) and 11 kW (15 hp) on the PUMA TT 1300 SYY
6 in chuck for a firmer hold on short blanks, where the PUMA TT 1300 SYY uses a 5 in chuck
80 mm of Y travel with 6,000 rpm rotary tools, in a series where DN gives the SYY machines a Y axis on both turrets
Main and sub-spindle both run to 6,000 rpm
Roller LM guideways and a 40 m/min (1,575 ipm) rapid in Z

Limitations

Envelope is no larger than that of the PUMA TT 1300 SYY with its 5 in chuck: 175 mm (7 in) turning diameter and 120 mm turning length
Sub-spindle remains at 11 kW (15 hp), so the second side cannot match first-side cuts
DN's table shows the same figures as the PUMA TT 1300 SYB in every row, leaving the second Y axis undocumented in the specifications
X rapid is 30 m/min (1,181 ipm), below the 40 m/min (1,575 ipm) of Z
No rotary tool power or torque is listed

Best For

Tougher materials roughed at the 116 N·m (86 ft-lb) main spindle Small parts milled on both sides, within 80 mm of Y travel Front-loaded processes with a light second operation Bar-fed production inside 175 mm (7 in) by 120 mm

Frequently Asked Questions

01 Is the PUMA TT 1300 SYYB bigger than the PUMA TT 1300 SYY?

Not in capacity. Both list a 175 mm (7 in) maximum turning diameter, a 120 mm turning length, 135 mm of X travel and 530 mm (21 in) of Z travel. The SYYB has a 6 in chuck and weighs 8,100 kg (17,857 lb). The PUMA TT 1300 SYY has a 5 in chuck and weighs 8,000 kg (17,637 lb).

02 How much torque does the PUMA TT 1300 SYYB have?

The main spindle is listed at 116 N·m (86 ft-lb) and 15 kW (20 hp), with a top speed of 6,000 rpm. For the sub-spindle the table gives 11 kW (15 hp) and 6,000 rpm and no torque. If the second operation includes a demanding cut, ask DN for the sub-spindle torque before fixing the process.

03 How is the PUMA TT 1300 SYYB different from the PUMA TT 1300 SYB?

On paper there is no difference. The PUMA TT 1300 SYB is listed with a 6 in chuck, 15 kW (20 hp), 116 N·m (86 ft-lb), 80 mm of Y travel and 8,100 kg (17,857 lb), the same as this model. The name suggests the SYYB follows the SYY machines, which DN describes as having a Y axis on the upper and lower turrets, but the table does not confirm it.

04 What speeds do the rotary tools and axes reach on the PUMA TT 1300 SYYB?

Rotary tools are listed at 6,000 rpm. Rapid traverse is 30 m/min (1,181 ipm) in X and 40 m/min (1,575 ipm) in Z. Travels are 135 mm in X, 80 mm in Y and 530 mm (21 in) in Z. DN's table has no Y rapid figure and no cutting feed figure for this model.

05 Does the PUMA TT 1300 SYYB come with part unloading?

DN's series description lists independent parts catcher and unloader systems for the left and right spindles and refers to a fully automated manufacturing system. It is written for the whole series and the table has no row for it, so check that the catcher and unloader are on the quotation for this model and ask what part length they accept.
