Ganesh GEN TURN CW52MY GII

Q: How much does the Ganesh GEN TURN CW52MY GII cost?

The price estimate for the Ganesh GEN TURN CW52MY GII is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-turn-cw52my-gii#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

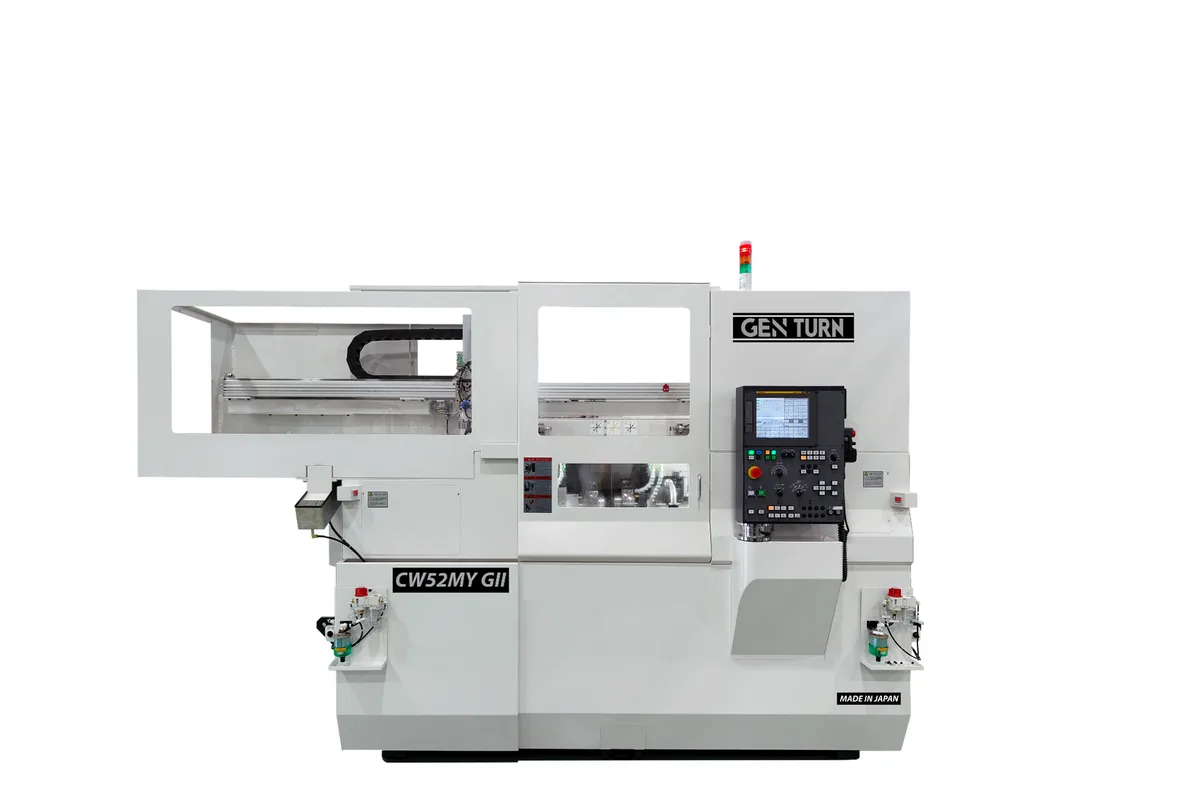

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

5,000 rpm, built-in integral spindle motor

Rapid Traverse

787 ipm (20 m/min) X and Z

Spindle Power

12 HP (9.0 kW), 30-minute duty rated

bar capacity

2.04 in (52 mm), main and sub spindle

spindle bore

2.36 in (60 mm) through hole, main and sub spindle

max chucking diameter

6 in, main and sub spindle

How much does the Ganesh GEN TURN CW52MY GII cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN TURN CW52MY GII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The GEN TURN CW52MY GII is a twin-spindle, twin-turret turning center with a three-axis gantry loader built into the machine. The loader handles workpieces up to 3 kg including the gripper and reaches both the left and the right spindle, so chucked blanks can be loaded, transferred and unloaded without a bar feeder or an external robot.

Expand Machinery describes the loader in some detail: a high-speed gantry with rack-and-pinion drive, motor-driven gripper rotation for angle adjustment, and an overhead design that keeps floor space down. It can run the same operation on both spindles, doubling output of a one-operation part, or first and second operations in sequence. The maker also notes that it integrates with workpiece stockers, measuring devices and cleaning units.

Underneath, the machine follows the GEN TURN CW52MY: built-in 5,000 rpm spindles of 12 HP (9.0 kW) on A2-6 noses, dual 12-station live tool turrets with a full Y axis on both, and travels of 6.693 in (170 mm) in X, 12.598 in (320 mm) in Z and 2.362 in (60 mm) in Y. Two figures differ in the tables. Maximum chucking diameter is given as 6 in for both spindles, and the Y-axis rapid is 118 ipm (3 m/min) where the GEN TURN CW52MY lists 315 ipm (8 m/min).

Bar work is still possible, with 2.04 in (52 mm) capacity and a 2.36 in (60 mm) through hole in both spindles. The control is a Fanuc OiTF Plus with a custom screen, Marposs motorized tool setters are fitted, and the chip conveyor discharges at barrel height. Weight is 11,220 lb (5,100 kg). The 3 kg limit is the figure to check first: it includes the gripper, so the usable part weight is lower.

Full Specifications

Parameter	Value
Bar Capacity	2.04 in (52 mm), main and sub spindle
Spindle Bore	2.36 in (60 mm) through hole, main and sub spindle
Max Chucking Diameter	6 in, main and sub spindle
Max Swing	14.76 in (375 mm)
Max Spindle Speed	5,000 rpm, built-in integral spindle motor
Spindle Motor Power	12 HP (9.0 kW), 30-minute duty rated
Spindle Nose	A2-6
Sub Spindle Speed	5,000 rpm
Sub Spindle Power	12 HP (9.0 kW), 30-minute duty rated
Sub Spindle Nose	A2-6
X Axis Travel	6.693 in (170 mm), both turrets
Z Axis Travel	12.598 in (320 mm), both turrets
Y Axis Travel	2.362 in (60 mm), ±30 mm (1.181 in), both turrets
Rapid Traverse Rate	787 ipm (20 m/min) X and Z
Rapid Traverse Y	118 ipm (3 m/min)
Turret Stations	12 driven tool stations, WTO Quick-Flex toolholders
Live Tool Speed	6,000 rpm, higher with speeder tools
Live Tool Power	1.34 HP (1 kW)
Turret Indexing	Servo motor, 1 second indexing time
Coolant Pressure	135 psi, both turrets
Gantry Loader Capacity	3 kg maximum weight, including gripper
Gantry Loader Axes	3 axis
Gantry Loader Coverage	Covers both left and right side
Machine Weight	11,220 lb (5,100 kg)
Coolant Tank Capacity	80 gallons (300 liters)
Power Requirement	220 V ±5%, 40 kVA, 3-phase
Air Requirement	0.4 - 0.5 MPa, 150 L/min
CNC Control	Fanuc OiTF Plus

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

Built-in three-axis gantry loader serving both spindles, with a 3 kg handling capacity
Dual 12-station live tool turrets with a full Y axis on both
Loader can run the same operation on both spindles or first and second operations
Marposs motorized tool setters and a Fanuc OiTF Plus control with a custom screen
Overhead gantry design keeps the required floor space down

Limitations

Loader capacity is 3 kg including the gripper
Maximum chucking diameter is 6 in on both spindles
Y-axis rapid is 118 ipm (3 m/min)
Driven tool power is 1.34 HP (1 kW)

Best For

Unattended chucking work on small blanks within the 3 kg loader limit Parts needing first and second operations with automatic transfer One-operation parts run on both spindles at once Cells linked to stockers, gauging or washing equipment

Frequently Asked Questions

01 What can the gantry loader of the CW52MY GII handle?

Maximum weight is 3 kg including the gripper. The gantry has 3 axes and covers both the left and the right side of the machine, so it can load and unload either spindle. Gripper rotation is motor driven, and the loader uses a rack-and-pinion drive.

02 How is the GII different from the GEN TURN CW52MY?

The built-in gantry loader is the main difference. The turning specification is largely shared: 5,000 rpm spindles of 12 HP (9.0 kW), 2.04 in (52 mm) bar capacity and the same X, Z and Y travels. The GII weighs 11,220 lb (5,100 kg) against 10,584 lb (4,800 kg) for the GEN TURN CW52MY, and its table gives a Y-axis rapid of 118 ipm (3 m/min).

03 Can it still run bar stock?

The spindle table allows it: maximum barstock is 2.04 in (52 mm) on both the main and the sub-spindle, with a 2.36 in (60 mm) through hole. The machine is sold around the gantry loader, though, so confirm the bar feeder interface before ordering it for bar work.

04 Which control and setup aids does it have?

A Fanuc OiTF Plus CNC with what Expand Machinery calls a custom screen for efficient operation. Marposs high-precision motorized tool setters are listed, and the turrets use WTO Quick-Flex toolholders on 12 driven stations at up to 6,000 rpm.
