Ganesh GEN TURN CW52MY

Q: How much does the Ganesh GEN TURN CW52MY cost?

The price estimate for the Ganesh GEN TURN CW52MY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-turn-cw52my#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

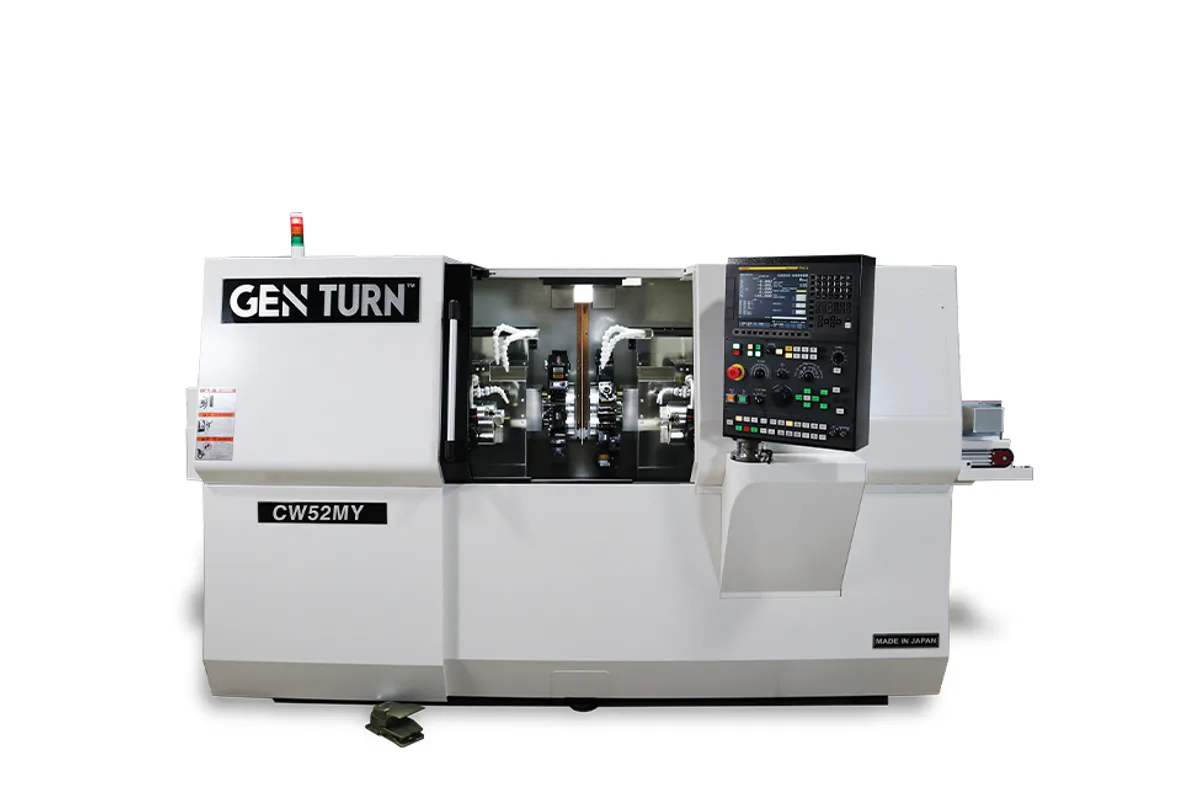

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

5,000 rpm, built-in integral spindle motor

Rapid Traverse

787 ipm (20 m/min) X, Z and B

Spindle Power

12 HP (9.0 kW), 30-minute duty rated

bar capacity

2.04 in (52 mm), main and sub spindle

spindle bore

2.36 in (60 mm) through hole, main and sub spindle

max chucking diameter

8 in (203 mm)

How much does the Ganesh GEN TURN CW52MY cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN TURN CW52MY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The GEN TURN CW52MY is the twin-turret version of Expand Machinery's 52 mm turning center: two built-in 5,000 rpm spindles facing each other, a 12-station BMT 44 turret for each, and a Y axis on both turrets. The maker counts 8 axes. Because each spindle has its own turret, front and back operations run at the same time instead of taking turns.

Unlike the GEN TURN C52 MYS, the two spindles are equals. Each is rated 12 HP (9.0 kW) on the 30-minute rating, has an A2-6 nose, a 2.36 in (60 mm) through hole and 2.04 in (52 mm) of bar capacity, so bar can be fed from either end or a full-diameter part passed to the sub-spindle. Maximum swing is 14.76 in (375 mm). Chucking diameter is 8 in (203 mm) on the main spindle and 6 in on the sub-spindle, and 6 in Kitagawa chucks are supplied for both.

Both turrets travel 6.693 in (170 mm) in X, 12.598 in (320 mm) in Z and 2.362 in (60 mm) in Y, ±30 mm off center. Y rapids at 315 ipm (8 m/min); X, Z and B at 787 ipm (20 m/min). Driven tools reach 6,000 rpm on a 1.34 HP (1.0 kW) motor, a light milling drive, and the turrets are indexed by servo motor in 1 second.

Setup aids are part of the package: a Marposs tool probe for each turret, a parts catcher with conveyor, and dual high-pressure coolant pumps at 135 psi. The coolant tank holds 80 gallons (300 liters). At 10,584 lb (4,800 kg) and 40 kVA it remains a mid-size machine. The GEN TURN CW52MY GII is the same layout with a 3 kg gantry loader built in.

Full Specifications

Parameter	Value
Bar Capacity	2.04 in (52 mm), main and sub spindle
Spindle Bore	2.36 in (60 mm) through hole, main and sub spindle
Max Chucking Diameter	8 in (203 mm)
Max Swing	14.76 in (375 mm)
Max Spindle Speed	5,000 rpm, built-in integral spindle motor
Spindle Motor Power	12 HP (9.0 kW), 30-minute duty rated
Spindle Nose	A2-6
Sub Spindle Speed	5,000 rpm, built-in integral spindle motor
Sub Spindle Power	12 HP (9.0 kW), 30-minute duty rated
Sub Spindle Nose	A2-6
Sub Spindle Chucking Diameter	6 in
X Axis Travel	6.693 in (170 mm), both turrets
Z Axis Travel	12.598 in (320 mm), both turrets
Y Axis Travel	2.362 in (60 mm), ±30 mm (1.181 in), both turrets
Rapid Traverse Rate	787 ipm (20 m/min) X, Z and B
Rapid Traverse Y	315 ipm (8 m/min)
Turret Stations	12 driven tool stations
Live Tool Speed	6,000 rpm, higher with speeder tools
Live Tool Power	1.34 HP (1.0 kW)
Turret Indexing	Servo motor, 1 second indexing time
Coolant Pressure	135 psi, both turrets
Machine Weight	10,584 lb (4,800 kg)
Coolant Tank Capacity	80 gallons (300 liters)
Power Requirement	220 V ±5%, 40 kVA, 3-phase
Air Requirement	0.4 - 0.5 MPa, 150 L/min

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

Two 12-station BMT 44 turrets, each with a full Y axis, cut on both spindles at once
Matched spindles: 12 HP (9.0 kW), 5,000 rpm and 2.04 in (52 mm) bar capacity on both
Marposs tool probe for each turret
Dual 135 psi high-pressure coolant pumps and an 80 gallon (300 liter) tank
6 in Kitagawa chucks supplied for main and sub-spindle

Limitations

Driven tool power is 1.34 HP (1.0 kW)
Y travel is 2.362 in (60 mm), ±30 mm off center
Z travel of 12.598 in (320 mm) per turret limits part length
Sub-spindle chucking diameter is 6 in, against 8 in (203 mm) on the main spindle

Best For

High-volume bar parts up to 2.04 in (52 mm) with balanced front and back operations Parts with off-center milling on both ends Cycle-time reduction by cutting on two spindles at once Bar-fed work where a full-diameter part passes to the sub-spindle

Frequently Asked Questions

01 What does the twin-turret layout of the GEN TURN CW52MY allow?

Each spindle has its own 12-station turret with X, Z and Y travel, so the main spindle can machine the front of one part while the sub-spindle finishes the back of the previous one. Travels for both turrets are 6.693 in (170 mm) in X, 12.598 in (320 mm) in Z and 2.362 in (60 mm) in Y.

02 Are the two spindles the same?

Nearly. Both are built-in motor spindles at 5,000 rpm and 12 HP (9.0 kW) on the 30-minute rating, with A2-6 noses, 2.04 in (52 mm) bar capacity and a 2.36 in (60 mm) through hole. Maximum chucking diameter is 8 in (203 mm) on the main spindle and 6 in on the sub-spindle.

03 How capable is the live tooling?

All 12 stations of each turret are driven. Driven tool speed is 6,000 rpm, higher with speeder tools, and driven tool power is 1.34 HP (1.0 kW). That suits drilling, tapping and light milling on bar-sized parts.

04 What comes with the machine?

The feature list names a Marposs tool probe for each turret, 6 in Kitagawa chucks for both spindles, a parts catcher with conveyor and dual 135 psi high-pressure coolant pumps.

05 What are the weight and services?

The machine weighs 10,584 lb (4,800 kg). It needs 220 V ±5% at 40 kVA, 3-phase, and air at 0.4 - 0.5 MPa with 150 L/min. Coolant capacity is 80 gallons (300 liters).
