Fryer MC-40L

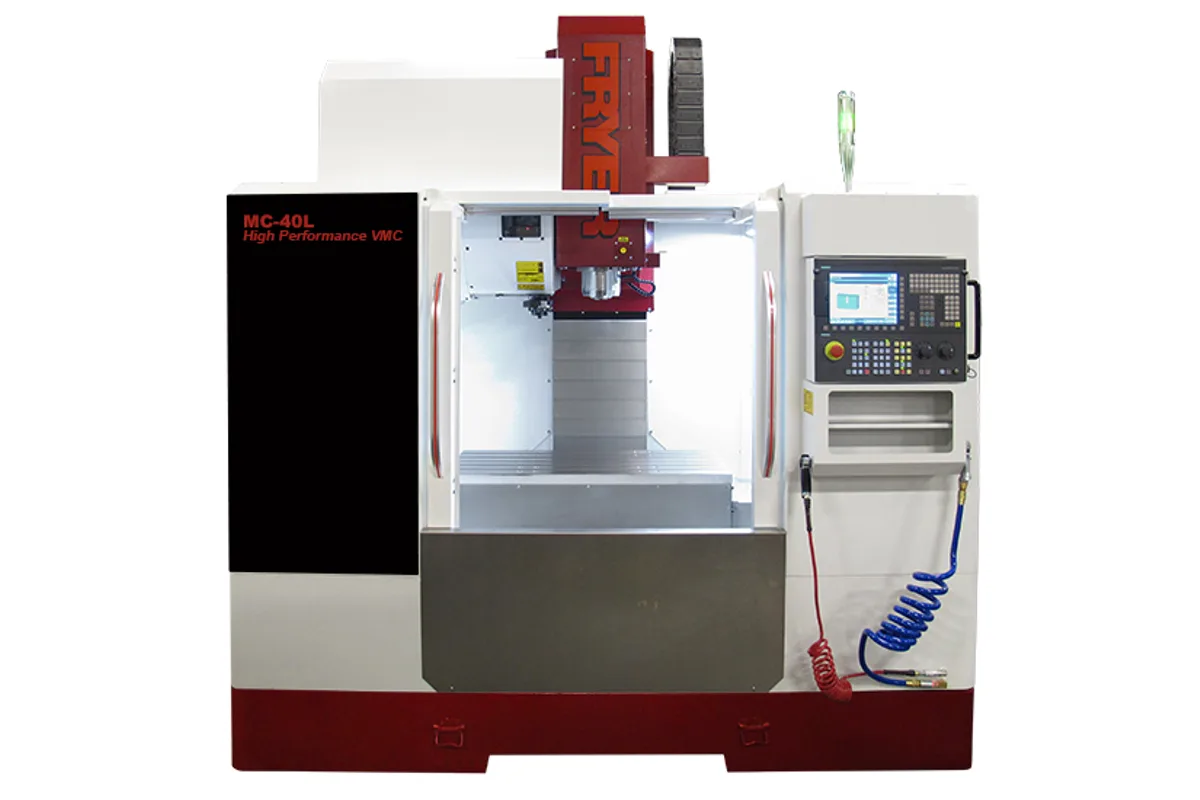

Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Fryer MC-40L cost?
Price estimate
We do not have a price for the Fryer MC-40L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer MC-40L is a 40 x 22 x 22 in (1,016 x 559 x 559 mm) linear way vertical machining center, the size most job shops treat as their general-purpose machine. In the MC-L series it is the largest model that keeps the 1,450 ipm (36.8 m/min) rapids; the MC-45L above it is listed at 1,200 ipm (30.5 m/min).
Its table is 22 x 43 in (559 x 1,092 mm) and is rated 3,000 lb (1,361 kg). Two vises with room between them, or a vise and a 4th axis, fit comfortably, and the 40 in (1,016 mm) door opening exposes the whole X stroke. Between the MC-30L and this model the frame is closely related: the same 100 in (2,540 mm) operating width and 109 in (2,769 mm) height, with a deeper base at 97 in (2,464 mm) and a weight of 9,500 lb (4,309 kg).
A 20 hp (14.9 kW) peak inline motor drives the Big Plus CAT 40 spindle from 60 to 10,000 rpm, with 100 ft-lb (136 Nm) at 350 rpm. Big Plus dual contact matters at this speed because the holder seats on the face as well as the taper. The 30 station arm type changer needs 1.5 seconds per change.
Fryer shows this model on its site in a version with handwheels, in keeping with the manual, semi-automatic and full CNC modes of its control. For a production machine that is unusual, and it is aimed at shops where the same spindle does one-off jobs in the morning and a batch in the afternoon.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 40 in (1,016 mm) |
| Y Axis Travel | 22 in (559 mm) |
| Z Axis Travel | 22 in (559 mm) |
| Ballscrew Diameter | 1.57 in (40 mm) |
| Max Table Load | 3,000 lb (1,361 kg) |
| Table Size | 22 x 43 in (559 x 1,092 mm) |
| T-Slots | 5 / 0.708 in (18 mm) |
| Table Top to Floor | 37 in (940 mm) |
| Spindle Motor Power | 20 hp (14.9 kW) peak |
| Max Spindle Speed | 60 - 10,000 rpm (12K, 15K, 21K, 30K optional) |
| Spindle Torque | 100 ft-lb (136 Nm) at 350 rpm |
| Spindle Taper | Big Plus CAT 40 (BT option) |
| Distance Spindle Nose to Table | 26 - 4 in (660 - 102 mm) |
| Spindle Center to Column | 23 in (584 mm) |
| Tool Capacity | 30 station high speed arm type (40 option) |
| Tool Change Time | 1.5 seconds |
| Max Tool Diameter (full magazine) | 3.2 in (81 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5.5 in (140 mm) |
| Max Tool Weight | 15.4 lb (7.0 kg) |
| Max Tool Length | 11.8 in (300 mm) |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Resolution | 0.0001 in (0.0025 mm) |
| Rapid Traverse Xyz | 1,450 ipm (36.8 m/min) X, Y, Z |
| Cutting Feed Rate | 0.001 - 1,200 ipm (up to 30.5 m/min) |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 4,000 lb (1,814 kgf) X, Y, Z |
| Air Requirement | 90 psi (6.2 bar), 5 cfm (142 L/min) |
| Coolant Capacity | 90 gal (341 L) |
| Coolant Flow | 9 gpm (34 L/min) |
| Door Opening Width | 40 in (1,016 mm) |
| Power Requirement | 40 A, 380-500 VAC, 3 phase (208-250 VAC optional) |
| Shipping Dimensions | 100 x 97 x 88 in (2,540 x 2,464 x 2,235 mm) |
| Machine Dimensions | 100 x 97 x 109 in (2,540 x 2,464 x 2,769 mm) |
| Machine Weight | 9,500 lb (4,309 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 40 x 22 x 22 in (1,016 x 559 x 559 mm) travels with 1,450 ipm (36.8 m/min) rapids
- 22 x 43 in (559 x 1,092 mm) table rated 3,000 lb (1,361 kg)
- 30 tools, 1.5 seconds tool change
- Big Plus CAT 40 spindle to 10,000 rpm, with options up to 30,000 rpm in a 30-size taper
- 40 in (1,016 mm) door opening
Limitations
- Motor is 20 hp (14.9 kW) peak; the MC-45L has 30 hp (22.4 kW)
- Y and Z travel are both 22 in (559 mm), less than the 25 in (635 mm) of the MC-45L
- Operating depth of 97 in (2,464 mm) is greater than the MC-30L's 86 in (2,184 mm)
- Standard supply is 380-500 VAC three-phase
Best For
Frequently Asked Questions
01
Travels are 40 x 22 x 22 in (1,016 x 559 x 559 mm), the table is 22 x 43 in (559 x 1,092 mm) for 3,000 lb (1,361 kg), and the spindle is Big Plus CAT 40 at 60 - 10,000 rpm with 20 hp (14.9 kW) peak. Rapids are 1,450 ipm (36.8 m/min) and the changer holds 30 tools.
02
Yes. Fryer describes the MC-L series as linear way high speed machining centers with roller type linear ways and FEA designed castings. Ballscrews are 1.57 in (40 mm) and peak axis thrust is 4,000 lb on X, Y and Z.
03
The MC-40B has 40 x 20 x 28 in (1,016 x 508 x 711 mm) of travel, an 8,500 rpm spindle with 30 hp (22.4 kW) peak, 24 tools and a weight of 12,100 lb (5,489 kg). The MC-40L is lighter at 9,500 lb (4,309 kg), faster in rapids and spindle speed, and has less Z travel.
04
40 A at 380-500 VAC, 3 phase, as standard, with 208-250 VAC optional. Air is 5 cfm (142 L/min) at 90 psi (6.2 bar). The coolant tank holds 90 gal (341 L) with a flow of 9 gpm (34 L/min).
