Haas Automation Vertical Machining Centers (VMC)

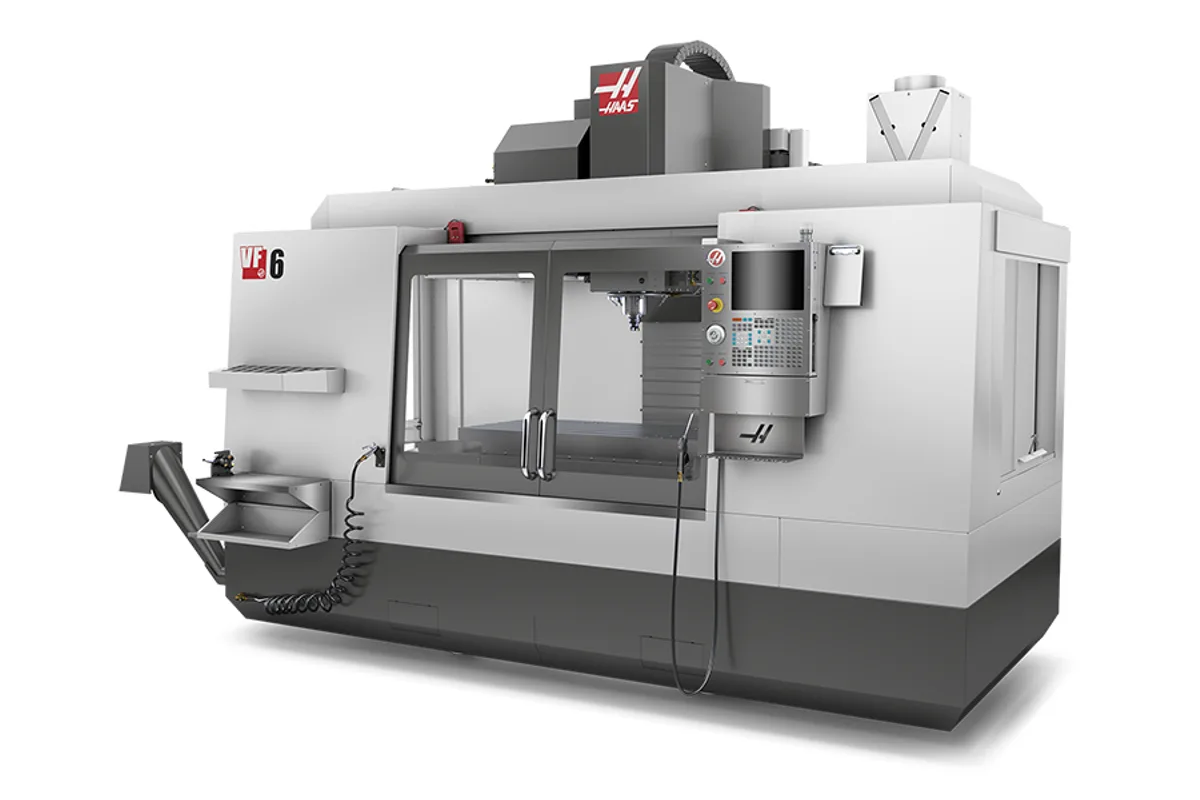

Haas VF-6

$165,000 - $210,000 Updated 2026-03-16

Key Specifications

X Travel

1,626 mm (64 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

8,100 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC (50+1 optional)

Overview

The Haas VF-6 is the large-frame flagship of the standard VF series, offering 1,626 x 813 x 762 mm (64 x 32 x 30 in) of travel on a 40-taper platform. This is the machine for shops that regularly machine long parts or large fixtures and need every inch of that 64-inch X-travel. The VF-6 fills a niche between mid-size 40-taper VMCs and larger, more expensive 50-taper machines, making it a popular choice for aerospace aluminum shops, mold shops, and contract manufacturers working on oversize parts.

The table measures 1,626 x 711 mm (64 x 28 in) with five T-slots on 125 mm centers and a 1,814 kg (4,000 lb) load capacity — enough for heavy steel fixtures, large rotary tables, and multi-part tombstone setups. At 10,116 kg (22,300 lb), the VF-6 has nearly three times the mass of a standard VF-2, which translates directly into vibration damping and thermal stability during long production runs.

The 22.4 kW (30 hp) inline direct-drive spindle tops out at 8,100 RPM with 122 Nm (90 ft-lbf) of torque at 2,000 RPM. The optional two-speed gearbox pushes torque to 339 Nm (250 ft-lbf) at 450 RPM for heavy face milling on steel and cast iron workpieces. CT40, BT40, and HSK-A63 taper options let shops match existing tooling standards. Rapids run at 15.2 m/min (600 ipm) on all axes — slower than smaller VF models due to the longer travel and heavier moving components, but standard for large-frame VMCs in this class.

The standard 30+1 side-mount tool changer delivers 2.8-second tool-to-tool and 3.6-second chip-to-chip times. Tools up to 152 mm (6 in) diameter with adjacent empty pockets and 406 mm (16 in) in length are supported, giving flexibility for the large face mills and extended-reach boring bars that large-frame work demands. The NGC control with its 15-inch touchscreen, 1 GB program memory, USB, and Ethernet is consistent across all VF models.

Base price starts around $165,000. For shops stepping from the VF-4 (50-inch X) to the VF-6 (64-inch X), the jump adds 14 inches of travel and significantly more table area. The VF-6 competes directly with the Okuma GENOS M730V and Mazak VCN-700C at a price point roughly 20-30% lower. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,626 mm (64 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	8,100 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Torque Gearbox	339 Nm (250 ft-lbf) @ 450 RPM (optional)
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC (50+1 optional)
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Length	16.00 in
Max Tool Weight	12.0 lb
Table Size	1,626 x 711 mm (64 x 28 in)
Max Table Load	1,814 kg (4,000 lb)
T Slots	5 slots, 125 mm (4.92 in) center distance
Rapid Traverse Rate	15.2 m/min (600 ipm)
Max Cutting Feedrate	12.7 m/min (500 ipm)
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	5600 lbf
Positioning Accuracy	±0.0051 mm (±0.0002 in)
Repeatability	±0.0025 mm (±0.0001 in)
Machine Weight	22300 lb
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Requirement	113 L/min @ 6.9 bar (4 scfm @ 100 psi)
Electrical	220 VAC 3-phase, 70 A (optional 440 VAC, 35 A)
Travels	S.A.E
X Axis	64.00 in
Y Axis	32.00 in
Z Axis	30.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	8100 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Max Torque W Opt Gearbox	250 ft-lbf @ 450 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	64.0 in
Width	28.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	5
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	600 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Diameter Extra Large	6.0 in
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	195.0 in x 102.0 in x 128.5 in
Export Crate	195.0 in x 105.5 in x 130.5 in
Domestic Pallet W Ec Option	195 in x 102 in x 138 in
Export Crate W Ec Option	195 in x 106 in x 139 in
Weight W Ec Option	22600 lb
Domestic Pallet W 501 Smtc	195 in x 102 in x 133 in
Export Crate W 501 Smtc	195 in x 106 in x 136 in
Weight W 501 Smtc	22300 lb
Domestic Pallet W Ec Option 501 Smtc	195 in x 102 in x 141 in
Export Crate W Ec Option 501 Smtc	195 in x 106 in x 143 in
Weight W Ec Option 501 Smtc	22600 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-6/40
Ha5c	VF-6/40
Ha5c T	VF-6/40
Ha5c2	VF-6/40
Ha5c2 T	VF-6/40
Ha5c3	VF-6/40
Ha5c3 T	VF-6/40
Ha5c4	VF-6/40
Ha5c4 T	VF-6/40
Ha5cs	VF-6/40
Hqda5	VF-6/40
Hrc160	VF-6/40
Hrc210	VF-6/40
Hrt160	VF-6/40
Hrt160 2	VF-6/40
Hrt160sp	VF-6/40
Hrt160ss	VF-6/40
Hrt200hs	VF-6/40
Hrt210	VF-6/40
Hrt210 2	VF-6/40
Hrt210ht	VF-6/40
Hrt210m	VF-6/40
Hrt210sp	VF-6/40
Hrt210ss	VF-6/40
Hrt210vm	VF-6/40
Hrt310	VF-6/40
Hrt310sp	VF-6/40
Hrt310ss	VF-6/40
Hrt450	VF-6/40
Hrta5	VF-6/40
Hrta6	VF-6/40
Lt260	VF-6/40
Lt350	VF-6/40
T5c	VF-6/40
T5c2	VF-6/40
T5c3	VF-6/40
T5c4	VF-6/40
Th240	VF-6/40
Th450	VF-6/40
Tr160	VF-6/40
Tr160 2	VF-6/40
Tr200y	VF-6/40
Tr210	VF-6/40
Tr310	VF-6/40
Tr500ss	VF-6/40
Trt100	VF-6/40
Trt160	VF-6/40
Trt210	VF-6/40
Trt310	VF-6/40
Trt70	VF-6/40

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,626 mm (64 in) X-travel is the largest work envelope in the standard VF 40-taper series, handling long parts and multi-vise setups impossible on the VF-4
10,116 kg (22,300 lb) machine mass provides excellent vibration damping and thermal stability during extended production runs
1,814 kg (4,000 lb) table load capacity accommodates heavy steel fixtures, large rotary tables, and full tombstone setups
30+1 SMTC with 406 mm max tool length supports the extended-reach tools and large face mills that large-frame work demands
Base price around $165K undercuts comparable Okuma and Mazak large-frame VMCs by 20-30%
CT40, BT40, and HSK-A63 taper options preserve existing tooling investments across the shop

Limitations

15.2 m/min (600 ipm) rapids are the slowest in the standard VF lineup, adding non-cutting time on large programs with frequent repositioning
8,100 RPM standard spindle limits high-speed aluminum work; the VF-6SS with 12,000 RPM adds significant cost
22,300 lb shipping weight requires heavy rigging equipment and may require floor reinforcement at the installation site
Large footprint demands substantial dedicated floor space — plan for roughly 24 x 14 feet including operator and service clearance
40-taper clamping force can limit tool rigidity with the largest-diameter cutters compared to 50-taper alternatives

Best For

Aerospace shops machining large aluminum structural components and panels up to 64 inches in length Mold and die shops working on large mold bases and cavity blocks that exceed the VF-4 envelope Job shops running parts between 50 and 64 inches that have outgrown the VF-4 X-travel Multi-vise and multi-part production setups taking advantage of the 64-inch table length for batch processing Shops with established 40-taper tooling that need a large-frame machine without switching to 50-taper Energy, heavy equipment, and defense manufacturers machining large frames, housings, and structural components

Frequently Asked Questions

01 What does a new Haas VF-6 cost?

Base price starts around $165,000. Common additions like through-spindle coolant, probing, chip conveyor, and a 50+1 SMTC upgrade bring the configured price to $185,000-$210,000. Used VF-6 machines from 2015-2022 typically sell for $60,000-$100,000 depending on hours and condition.

02 Should I buy the VF-6 or VF-4?

The VF-4 provides 50 inches of X-travel on a 52-inch table. The VF-6 steps up to 64 inches of X-travel on a 64-inch table. If your typical parts and fixtures fit within 50 inches, the VF-4 saves roughly $100,000 and requires less floor space. The VF-6 makes sense when you routinely need that additional 14 inches of X-travel or when the wider 32-inch Y-travel matters for your fixture designs.

03 What is the difference between the VF-6 and VF-6SS?

The VF-6SS bumps the spindle to 12,000 RPM, adds faster rapids, and swaps to a high-speed spindle configuration. If your shop cuts primarily aluminum or requires high-speed surface finish work, the SS pays for itself in cycle time savings. For steel-dominant or mixed-material work, the standard VF-6 delivers better low-end torque at a lower price.

04 Can the VF-6 handle a 4th axis?

Yes. The 64-inch table has ample room for a rotary table plus workholding. Many VF-6 machines come factory pre-wired for 4th axis. The table load capacity of 4,000 lb supports most production-size rotary tables and fixtures. For 5-axis simultaneous machining, the UMC-1000 or UMC-1250 are better-suited platforms.

05 Is the optional gearbox worth ordering on the VF-6?

For shops doing heavy face milling or slotting in steel and cast iron, the gearbox triples torque from 90 to 250 ft-lb at low RPM, enabling more aggressive cuts without stalling the spindle. For shops machining primarily aluminum, plastics, or light steel, the standard 30 hp direct-drive spindle is sufficient and the gearbox premium is not justified.
