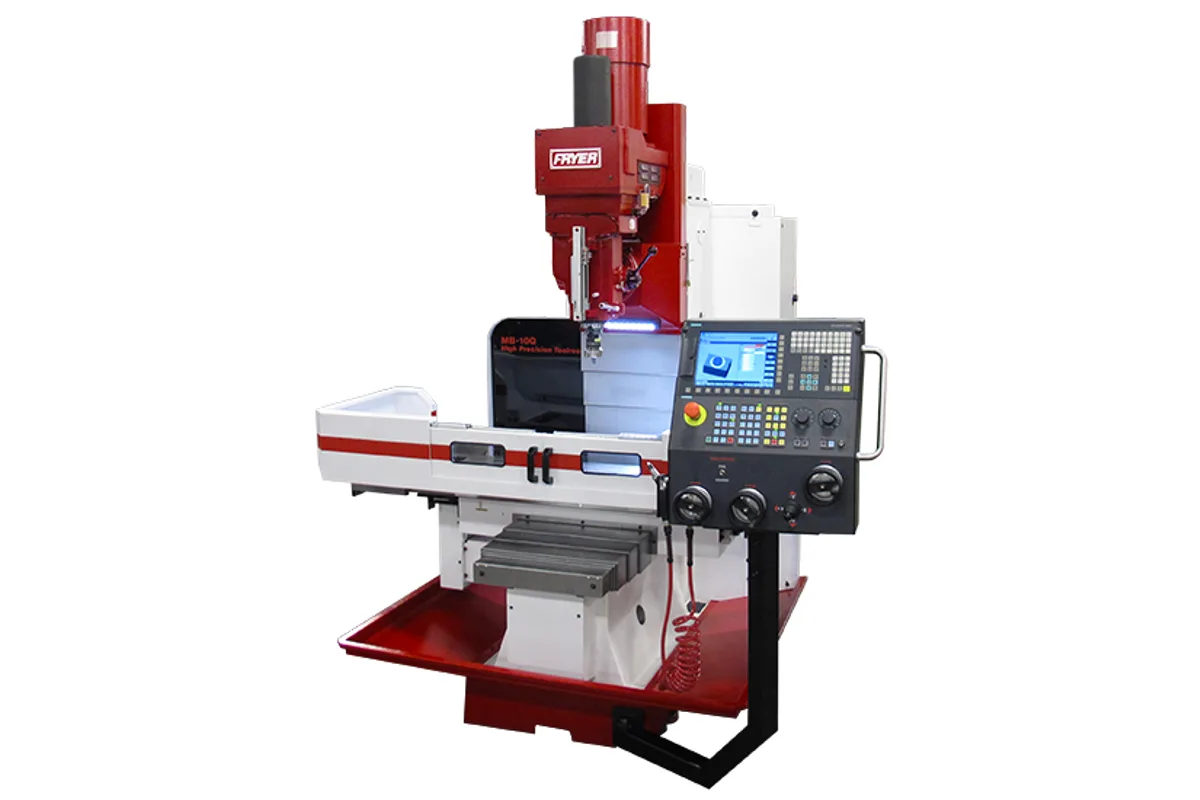

Fryer MB-10Q
Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
Accuracy
Repeatability
How much does the Fryer MB-10Q cost?
Price estimate
We do not have a price for the Fryer MB-10Q that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer MB-10Q is a toolroom bed mill with a manual quill head: 32 x 17 x 19 in (813 x 432 x 483 mm) of travel, a 14 x 50 in (356 x 1,270 mm) table and a 10 hp (7.5 kW) peak CAT 40 spindle. It is the smallest of the three MB-Q models and the one closest in size to the manual mill it is meant to stand beside or replace.
What makes it a toolroom machine is the way it can be run. Fryer fits manual handles on X and Y and a 6 in (152 mm) manual quill, and describes three ways of working: manual, semi-CNC and full CNC. A machinist can crank a quick facing cut by hand, run a single "Do One" cycle for a pocket or a bolt circle, or load a G-code program from a CAM system. Axis unlock is listed as standard, so X and Y stay locked in manual mode until they are needed.
There is no tool changer in the table. Tools are changed by hand, with a power drawbar and a 9 tool rack on the options sheet, and that sets the kind of work: one-offs, repairs and small batches rather than unattended runs.
The spindle has a 2 speed gear box. Low range covers 10-500 rpm and delivers 238 ft-lb (323 Nm), which is a great deal of torque for a 5,000 lb (2,268 kg) machine and suits large drills, taps and boring heads. High range runs 100-4,500 rpm at 40 ft-lb (54 Nm). The head swivels +/- 90°, and the table carries 2,000 lb (907 kg).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 32 in (813 mm) |
| Y Axis Travel | 17 in (432 mm) |
| Z Axis Travel | 19 in (483 mm) |
| Max Table Load | 2,000 lb (907 kg) |
| Ballscrew Diameter | 1.26 in (32 mm) |
| Table Size | 14 x 50 in (356 x 1,270 mm) |
| T-Slots | 3 / 0.630 in (16 mm) |
| Table Top to Floor | 31 in (787 mm) |
| Spindle Motor Power | 10 hp (7.5 kW) peak |
| Spindle Torque | 40 ft-lb (54 Nm) high gear; 238 ft-lb (323 Nm) low gear |
| Max Spindle Speed | Low 10-500 rpm; High 100-4,500 rpm |
| Spindle Speed Ranges | 2 speed gear box |
| Spindle Taper | CAT 40 (NST 40 or BT 40 optional) |
| Quill Diameter | 4.125 in (105 mm) |
| Quill Travel | 6 in (152 mm) |
| Distance Spindle Nose to Table | 25.5 - 6.5 in (648 - 165 mm) |
| Spindle Center to Column | 17.5 in (445 mm) |
| Head Swivel | +/- 90° |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Rapid Traverse Xyz | 400 ipm (10.2 m/min) |
| Cutting Feed Rate | 0.001 - 300 ipm (up to 7.6 m/min) |
| Axis Thrust | 4,400 lb (1,996 kgf) |
| Air Requirement | 85 psi (5.9 bar), 3 cfm (85 L/min) |
| Coolant Capacity | 12 gal (45 L) |
| Coolant Flow | 3 gpm (11 L/min) |
| Power Requirement | 35 A, 208-250 VAC, 3 phase (380-500 VAC optional) |
| Shipping Dimensions | 50 x 76 x 76 in (1,270 x 1,930 x 1,930 mm) |
| Machine Dimensions | 103 x 80 x 94 in (2,616 x 2,032 x 2,388 mm) |
| Machine Weight | 5,000 lb (2,268 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Runs in manual, semi-CNC or full CNC mode, with manual handles on X and Y and a 6 in (152 mm) manual quill
- 238 ft-lb (323 Nm) of spindle torque in low gear from a 10 hp (7.5 kW) peak motor
- Head swivels +/- 90° for angled drilling and milling
- Table takes 2,000 lb (907 kg) on a machine weighing 5,000 lb (2,268 kg)
- Axis unlock for manual work is a standard feature of the MB-Q series
Limitations
- No automatic tool changer is listed; tools are changed by hand
- Spindle speed tops out at 4,500 rpm in high range
- Rapid traverse is 400 ipm (10.2 m/min) and cutting feed is limited to 300 ipm (7.6 m/min)
- Y travel of 17 in (432 mm) and a spindle 17.5 in (445 mm) from the column limit the depth of a part
- A full machine guard is an option, so the base machine is not enclosed
Best For
Frequently Asked Questions
01
Yes. Fryer equips the MB-Q series with manual handles for the X and Y axes and a 6 in (152 mm) manual quill, and describes manual, semi-CNC and full-CNC modes. In manual mode the axis unlock feature keeps X and Y locked until the operator toggles them free.
02
X, Y and Z travels are 32 x 17 x 19 in (813 x 432 x 483 mm). The table is 14 x 50 in (356 x 1,270 mm) with 3 T-slots 0.630 in (16 mm) wide and a load rating of 2,000 lb (907 kg). Spindle nose to table ranges from 25.5 to 6.5 in (648 - 165 mm).
03
Fryer's specification table for the MB-Q series has no tool changer rows. The options sheet lists a Powerlock power drawbar and a 9 tool rack that mounts over the X way cover and holds 40 taper tool holders, so tool changes are done by the operator.
04
A CAT 40 quill spindle with a 10 hp (7.5 kW) peak motor and a 2 speed gear box. Low range is 10-500 rpm with 238 ft-lb (323 Nm); high range is 100-4,500 rpm with 40 ft-lb (54 Nm). NST 40 and BT 40 tapers are optional, and the quill is 4.125 in (105 mm) in diameter.
