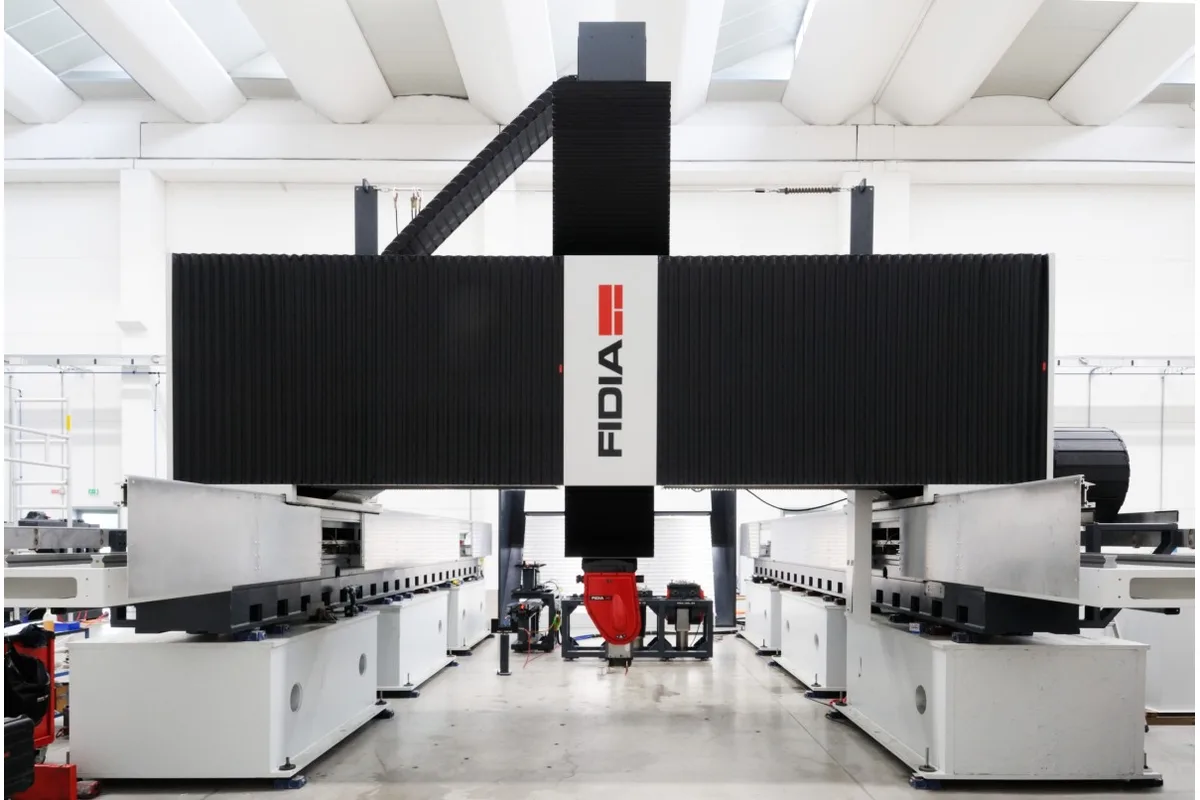

Fidia GTF/Q4
Image: fidia.it, Fidia
Key Specifications
x axis travel
y axis travel
z axis travel
max working feed
table load capacity
m5a m5s head
How much does the Fidia GTF/Q4 cost?
Price estimate
We do not have a price for the Fidia GTF/Q4 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fidia GTF/Q4 is a modular upper-gantry 5-axis milling machine sold by configuration, not as one fixed size. X travel starts at 2,700 mm (106 in) and runs through 3,600 mm (142 in), 4,500 mm (177 in), 6,200 mm (244 in) and 8,200 mm (323 in), then continues in steps of +2,000 mm (+79 in). Y is 2,200 / 2,700 / 3,500 mm (86.5 / 106 / 138 in) and Z is 1,000 / 1,200 / 1,500 / 1,800 mm (39 / 47 / 59 / 71 in).
The Q4 in the name refers to the ram. It runs on 4 linear guides placed on opposite sides and clamped in a split Y carriage, which Fidia says gives rigidity and lower torsional effects on the Z axis. The supporting base structures are reinforced concrete for damping and thermal stability, and the axes are driven through rack and pinion, with a double drive on the gantry X axis.
Head choice sets the character of the machine. The M5A and M5S heads carry 55 kW and 88 Nm at 24,000 1/min on HSK-A63, or 65 kW and 124 Nm at 15,000 1/min on HSK-A100. The M5S2 goes to 28,000 1/min with 87 kW on HSK-A63. The M5S3 offers 71 kW and 328 Nm at 15,000 1/min on HSK-A100, and the M3A lists 56 kW and 307 Nm at 10,000 1/min. With the head-changing platform the ram can swap heads automatically, so one machine can rough with a vertical spindle and finish in 5 axes.
Maximum working feed is 30 m/min on X, Y and Z, and table load capacity is 4,000 kg/m² (819 lbs/sqft). The control is the FIDIA C20/C20-Vision or SINUMERIK ONE. Where two crossbeams are wanted on one bed, the Y2G/Q4 is the double-gantry version.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,700 mm (106 in), 3,600 mm (142 in), 4,500 mm (177 in), 6,200 mm (244 in), 8,200 mm (323 in), then in steps of +2,000 mm (+79 in) |
| Y Axis Travel | 2,200 / 2,700 / 3,500 mm (86.5 / 106 / 138 in) |
| Z Axis Travel | 1,000 / 1,200 / 1,500 / 1,800 mm (39 / 47 / 59 / 71 in) |
| Max Working Feed | X, Y, Z: 30 m/min |
| Table Load Capacity | 4,000 kg/m² (819 lbs/sqft) |
| M5a M5s Head | HSK-A63: 24,000 1/min, 55 kW, 88 Nm; HSK-A100: 15,000 1/min, 65 kW, 124 Nm |
| M5s2 Head | HSK-A63: 28,000 1/min, 87 kW, 72 Nm; HSK-A100: 16,000 1/min, 62 kW, 148 Nm |
| M5s3 Head | HSK-A80: 24,000 1/min, 92 kW, 75 Nm; HSK-A100: 15,000 1/min, 71 kW, 328 Nm |
| M3a Head | HSK-A100: 10,000 1/min, 56 kW, 307 Nm |
| CNC Control | FIDIA C20/C20-Vision or SINUMERIK ONE |
Specifications sourced from fidia.it — verified 2026-10-05
Strengths & Limitations
Strengths
- X travel from 2,700 mm (106 in) upward in the listed sizes, extended in steps of +2,000 mm (+79 in)
- Ram on 4 linear guides in a split Y carriage for rigidity and lower torsional effects in Z
- Head range from 28,000 1/min (M5S2, HSK-A63) to 328 Nm (M5S3, HSK-A100)
- Automatic head change through a dedicated interface platform
- Reinforced concrete base structures for damping and thermal stability
Limitations
- Maximum working feed is 30 m/min; the Linea M4 lists 60 m/min in X and Y
- Reinforced concrete supporting structures make this a civil-works installation, not a machine to relocate
- Table load capacity is 4,000 kg/m² (819 lbs/sqft), lower than the 9,000 kg/m² (1,843 lbs/sqft) of the GTF/R
- The largest listed Z travel is 1,800 mm (71 in)
Best For
Frequently Asked Questions
01
X travel is listed at 2,700 mm (106 in), 3,600 mm (142 in), 4,500 mm (177 in), 6,200 mm (244 in) and 8,200 mm (323 in), then in steps of +2,000 mm (+79 in). Y is 2,200 / 2,700 / 3,500 mm (86.5 / 106 / 138 in) and Z is 1,000 / 1,200 / 1,500 / 1,800 mm (39 / 47 / 59 / 71 in).
02
The brochure lists the M5A and M5S (55 kW at 24,000 1/min on HSK-A63, or 65 kW at 15,000 1/min on HSK-A100), the M5S2 (87 kW at 28,000 1/min, or 62 kW and 148 Nm at 16,000 1/min), the M5S3 (92 kW at 24,000 1/min on HSK-A80, or 71 kW and 328 Nm at 15,000 1/min) and the M3A (56 kW, 307 Nm, 10,000 1/min).
03
It refers to the design of the carriage and ram: the vertical ram runs on 4 linear guides. Fidia places them on opposite sides of the ram and clamps them in a split Y carriage, which it says provides rigidity and lower torsional effects on the Z axis.
04
Yes, as an option. The modular ram and head system has a dedicated interface platform that allows automatic head change, and Fidia describes it as suitable for hosting different milling and / or turning equipment. That lets one machine combine vertical-spindle roughing with 5-axis finishing.
05
The brochure states that the machine is equipped with the FIDIA C20/C20-Vision high speed multi-processor numerical control, or with SINUMERIK ONE. Confirm the choice early, since post-processors and operator training follow from it.
