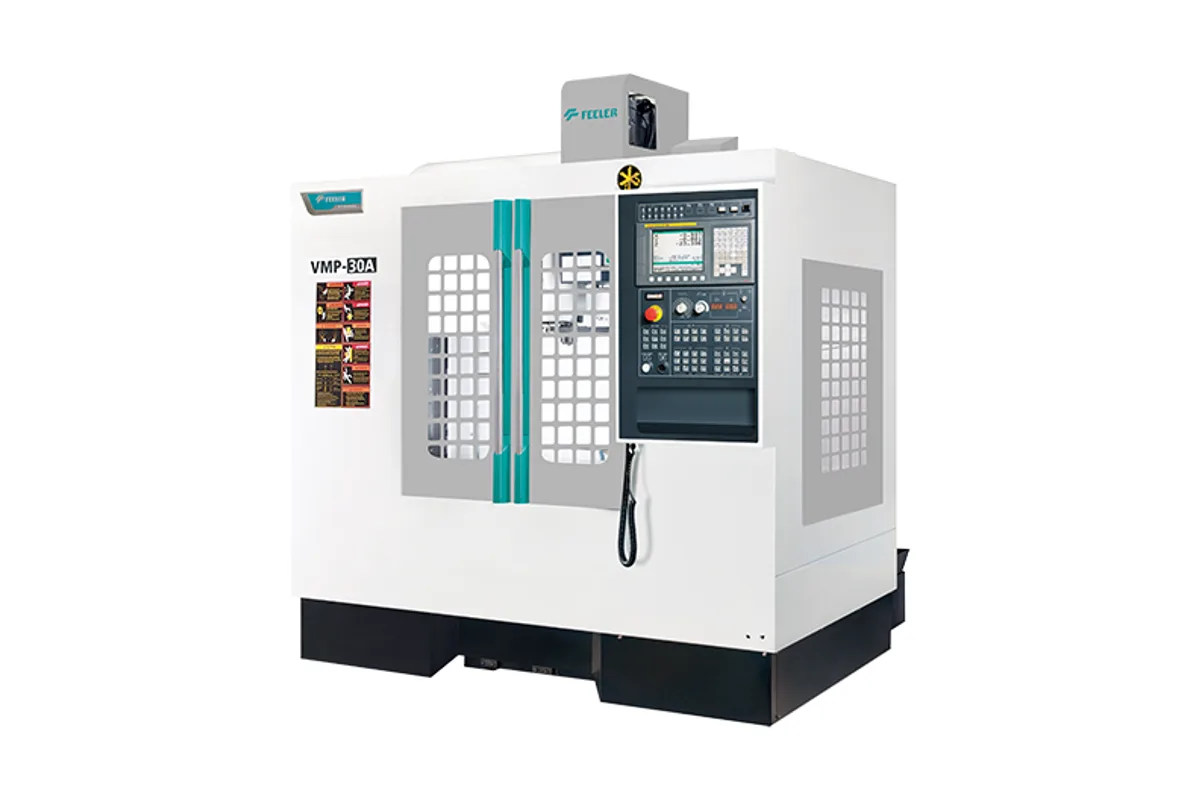

Feeler VMP-30
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Feeler VMP-30 cost?
Price estimate
We do not have a price for the Feeler VMP-30 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Long in X and shallow in Y, the Feeler VMP-30 offers 760 mm (29.9 in) of X travel over an 890 x 420 mm (35.0 x 16.5 in) table. Y travel is 420 mm (16.5 in), Z is 510 mm (20.1 in), and the spindle is a 10,000 rpm unit with a 7/24 No.40 taper.
It is the last of the light VMP models. Table load is 300 kg (661 lb) and the magazine holds 18 tools, exactly as on the shorter VMP-23, and all three axes rapid at 36 m/min (1,417 ipm). The next size, the VMP-32, moves to 520 mm of Y, 800 kg of load and 22 tools, so there is a clear break in the series between this machine and everything above it.
The proportions decide the work. Three vises fit in a row. A rotary unit and tailstock fit lengthwise with room left for a vise. Plates deeper than 420 mm do not fit inside the travel at all. Shops that mostly run bar-sawn blanks, small housings and brackets will rarely feel the Y limit, and will notice the fast Z on every peck-drilling and tapping cycle.
Feeler describes the VMP series as built for structural rigidity and cutting stability, with a cast iron body, an A-frame column and an enlarged base, hardened linear guides and Turcite B wear pads. It names automotive component machining and general industrial parts as the target. The table publishes neither spindle power nor machine weight.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 760 mm (29.9 in) |
| Y Axis Travel | 420 mm (16.5 in) |
| Z Axis Travel | 510 mm (20.1 in) |
| Table Size | 890 x 420 mm (35.0 x 16.5 in) |
| Max Table Load | 300 kg (661 lb) |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | 7/24 Taper No.40 |
| Rapid Traverse X | 36 m/min (1,417 ipm) |
| Rapid Traverse Y | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Tool Capacity | 18 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 760 mm (29.9 in) of X travel on an 890 mm long table
- Z rapid of 36 m/min (1,417 ipm), equal to X and Y
- Table depth of 420 mm is fully covered by 420 mm of Y travel
- 510 mm (20.1 in) of Z leaves room above a rotary unit or tall vise jaws
Limitations
- Y travel is 420 mm (16.5 in), the same as the smallest model
- 300 kg (661 lb) table load on a table long enough to invite more
- 18 tools, where the VMP-32 carries 22
- 10,000 rpm is the only spindle speed listed for this model
Best For
Frequently Asked Questions
01
760 mm (29.9 in) in X, 420 mm (16.5 in) in Y and 510 mm (20.1 in) in Z. The table is 890 x 420 mm (35.0 x 16.5 in) and carries up to 300 kg (661 lb).
02
If parts are deep or heavy, yes. The VMP-32 has 820 mm of X, 520 mm of Y, a 950 x 520 mm table rated 800 kg and 22 tools, with X and Y rapids of 40 m/min. The VMP-32 Z rapid is 30 m/min, slower than the 36 m/min here.
03
A 7/24 taper No.40 at 10,000 rpm. Feeler's series text refers to a 10,000 rpm high-speed spindle and does not state the drive type, power or torque on the page, so those need to come from a quotation or brochure.
04
Feeler says the Z axis of the VMP series has a higher-power motor with a balance-free design, paired with a high-speed servo direct-drive preloaded ball screw. On the VMP-30 the result in the table is 36 m/min on Z, the same as on X and Y.
