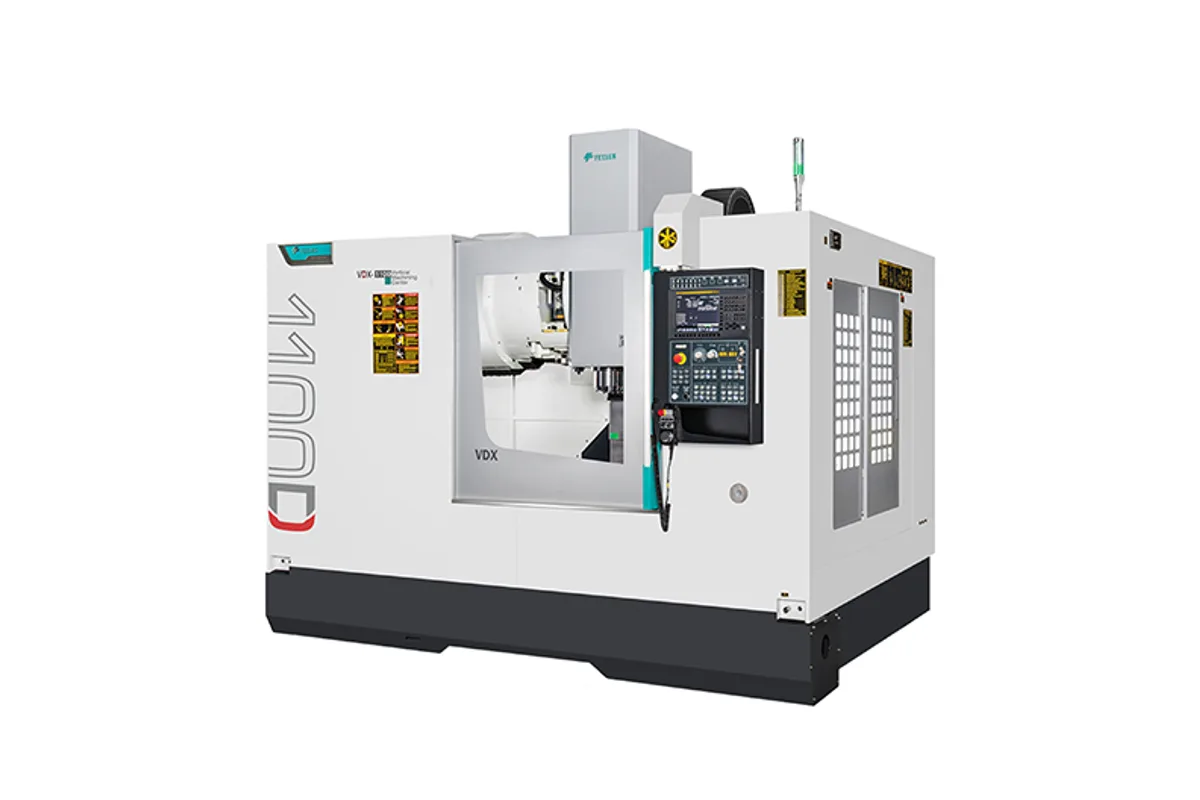

Feeler VDX-1100
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Feeler VDX-1100 cost?
Price estimate
We do not have a price for the Feeler VDX-1100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
In the middle of Feeler's high-speed mold range, the VDX-1100 pairs 1,100 mm (43.3 in) of X travel with a 1,200 x 600 mm (47.2 x 23.6 in) table, so stroke and table length nearly match. Y travel is 650 mm (25.6 in) and Z is 635 mm (25.0 in).
Speed at the tool is the reason to choose a VDX over Feeler's other machines of this size. The spindle is a direct-drive unit running to 15,000 rpm on a 7/24 No.40 taper. The VMX-1100, with nearly the same travels, lists 12,000 rpm. For hardened mold steel finished with small-diameter cutters, the extra speed converts directly into feed rate at a given chip load. The Z rapid is also higher, 30 m/min (1,181 ipm) here, with 36 m/min (1,417 ipm) on X and Y.
Y travel exceeds the 600 mm table depth. A cutter can therefore leave the part completely at the front and back of a full-depth mold base, and a fixture can overhang slightly without losing coverage. Table load is 1,500 kg (3,307 lb).
Feeler states that the series includes STC+ (Smooth Tolerance Control) to improve surface finish and reduce machining time, and that an oil-air lubrication system for the spindle is optional. The structure has a reinforced A-frame column base. There are 24 tool pockets. As with the rest of the range, spindle power is absent from the published table.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,100 mm (43.3 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 635 mm (25.0 in) |
| Table Size | 1,200 x 600 mm (47.2 x 23.6 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | 7/24 Taper No.40 |
| Rapid Traverse X | 36 m/min (1,417 ipm) |
| Rapid Traverse Y | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 30 m/min (1,181 ipm) |
| Tool Capacity | 24 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 rpm direct-drive spindle, against 12,000 rpm on the similarly sized VMX-1100
- X travel of 1,100 mm nearly covers the 1,200 mm table
- 650 mm of Y travel over a 600 mm deep table allows full-depth facing
- 30 m/min (1,181 ipm) Z rapid and 36 m/min on X and Y
- 1,500 kg (3,307 lb) table load for mold bases
Limitations
- No.40 taper only, so heavy roughing of large molds is not its strength
- The magazine holds 24 tools, with no larger option shown in the table
- Oil-air lubrication for the spindle is an extra, per Feeler
- Power, torque and machine weight are not published on the series page
Best For
Frequently Asked Questions
01
The cutting envelope is 1,100 x 650 x 635 mm (43.3 x 25.6 x 25.0 in) and the table is 1,200 x 600 mm, rated for 1,500 kg (3,307 lb). Daylight under the spindle is not given in the table, so check block height plus tool length with the maker's drawing.
02
The VMX-1100 lists 1,100 x 610 x 600 mm travels, 12,000 rpm and a Z rapid of 24 m/min. The VDX-1100 lists 650 mm of Y, 635 mm of Z, 15,000 rpm and a Z rapid of 30 m/min. Table size, the 1,500 kg rating and the 24-tool magazine are the same.
03
Yes. Feeler describes a 15,000 rpm high-speed direct-drive spindle that delivers full power directly to the spindle end. The taper is 7/24 No.40. An oil-air lubrication system is available as an option.
04
Feeler says the 650 mm Y-axis throat depth lets the machines flexibly integrate a fourth axis and provides space for 4/5-axis setups and fixtures. The series page does not list specific rotary tables, so the unit and its interface are a matter for the quotation.
