Vision Wide GSA-4027

Q: How much does the Vision Wide GSA-4027 cost?

The price estimate for the Vision Wide GSA-4027 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-gsa-4027#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

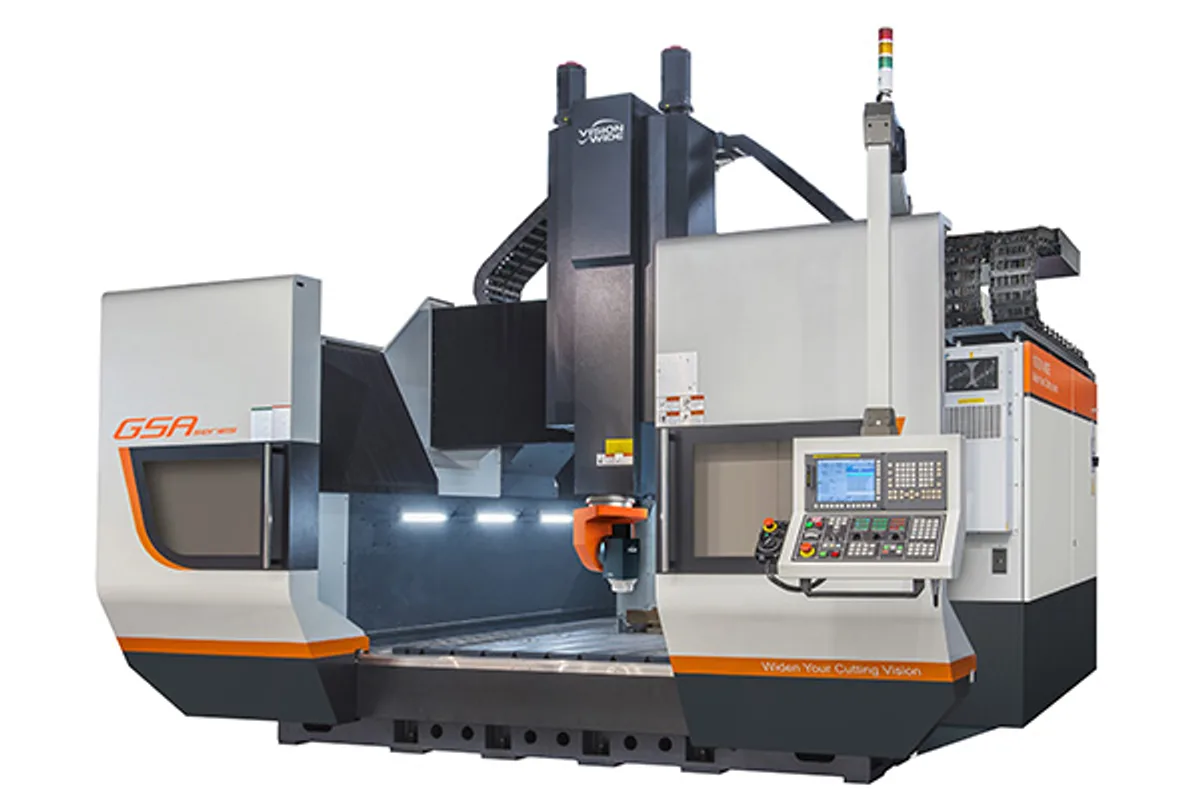

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Table Size

4,000×2,700 mm (157.5×106.3 in)

x axis travel

4,000 mm (157.5 in)

y axis travel

2,700 mm (106.3 in)

z axis travel

1,000/1,200 mm (39.4/47.2 in)(Opt.)

spindle power cont 30 min

50/65 kW (67.1/87.2 hp)

How much does the Vision Wide GSA-4027 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide GSA-4027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

At 4,000 mm (157.5 in) of X travel, the Vision Wide GSA-4027 is the first GSA to reach the length where the maker adds an X axis ball screw support device, which is listed as standard for axes of 4m and above.

The drive layout of the series explains why. X and Z are each driven by dual ballscrews and Y by a single one. On a gantry the X screws run the full length of the bed, one each side, and at four metres an unsupported screw would sag and whip at the 32 m/min rapid the table lists for X. Supports along the screw hold it straight so that speed stays usable.

Position is measured, not inferred. The X axis has dual linear scales, one per side, and Y and Z have a scale each, all standard. With both X screws driven and measured separately, the control can keep the gantry square to the table along the whole stroke.

The table is 4,000×2,700 mm (157.5×106.3 in), with 2,700 mm (106.3 in) of Y. Z travel is 1,000 mm, optionally 1,200 mm, at a 20 m/min rapid. The indexing IAC head carries a 50/65 kW (67.1/87.2 hp), 15,000 rpm spindle.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel	1,000/1,200 mm (39.4/47.2 in)(Opt.)
Table Size	4,000×2,700 mm (157.5×106.3 in)
Spindle Power Cont 30 Min	50/65 kW (67.1/87.2 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1~20,000 mm/min
Rapid Traverse Xyz	32/32/20 m/min

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

X axis ball screw support device is standard at this length
Dual ballscrews on X and Z; dual linear scales on X
32 m/min rapid in X and Y on a 4,000 mm (157.5 in) gantry
4,000×2,700 mm (157.5×106.3 in) fixed table

Limitations

Y axis is driven by a single ballscrew
Z rapid of 20 m/min is slower than X and Y
Standard Z travel is 1,000 mm

Best For

Four-metre molds and tooling needing angled access Fast positioning over a long fixed table Work that depends on the gantry staying square over the full stroke

Frequently Asked Questions

01 How are the axes driven on the Vision Wide GSA-4027?

The X and Z axes are driven by dual ballscrews and the Y axis by a single ballscrew. An X axis ball screw support device is standard for axes of 4m and above, which includes this model's 4,000 mm (157.5 in) X travel.

02 What feedback system does the GSA-4027 use?

X axis dual linear scale and Y/Z-axis linear scale are on the standard accessory list, so all linear axes are measured directly.

03 What are the rapid traverse rates of the GSA-4027?

32/32/20 m/min for X/Y/Z, so the vertical axis is the slowest of the three. The cutting feed range is 1~20,000 mm/min.

04 What size of part fits the GSA-4027?

The table is 4,000×2,700 mm (157.5×106.3 in). Travels are 4,000 mm (157.5 in) in X, 2,700 mm (106.3 in) in Y and 1,000 mm in Z, with 1,200 mm of Z optional. The shorter GSA-3027 has 3,000 mm (118.1 in) of X.
