Feeler FDM-6232

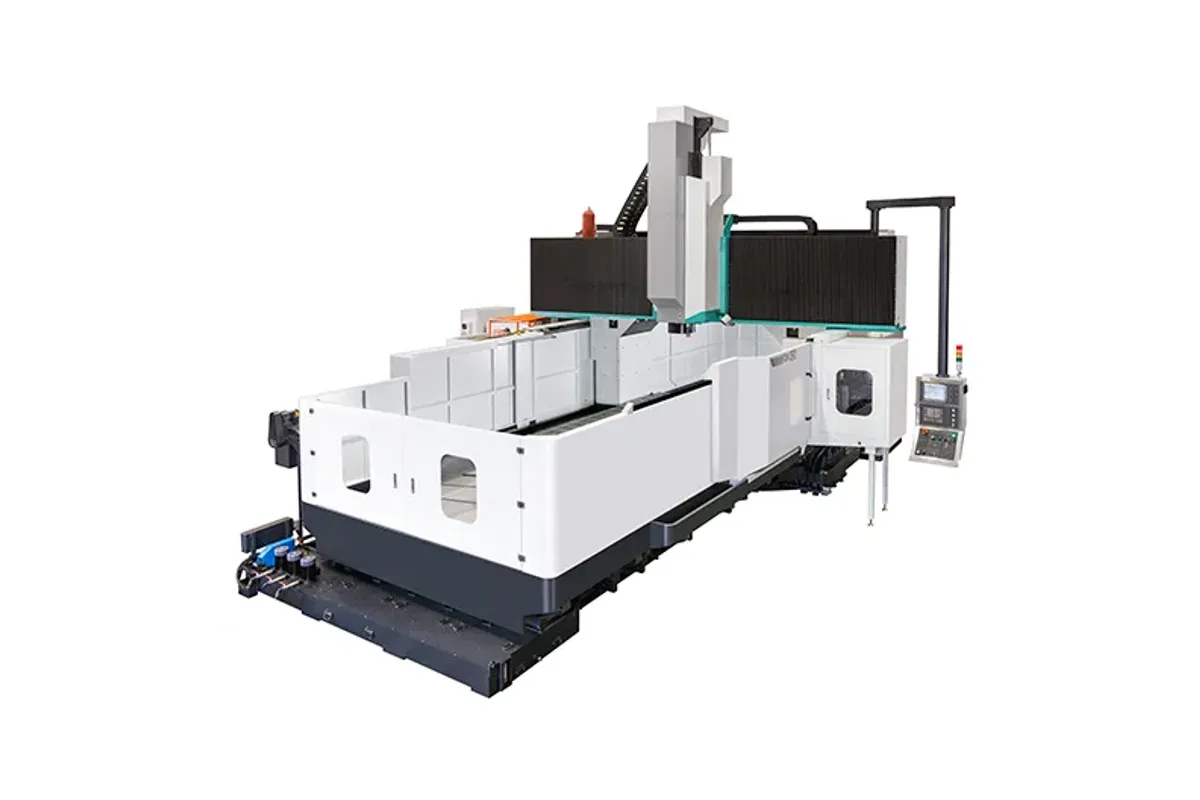

Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
x axis travel
y axis travel
z axis travel
How much does the Feeler FDM-6232 cost?
Price estimate
We do not have a price for the Feeler FDM-6232 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler FDM-6232 is a six-metre mould machining center: 6,200 mm (244.1 in) of X travel, 3,100 mm (122.0 in) of Y, and a table 6,000 mm long by 2,600 mm wide (236.2 × 102.4 in) rated at 24 ton.
Height is the dimension to plan on a machine like this. Z travel is 800 mm (31.5 in) as listed, and the brackets offer 1,000-1,400 mm (39.4-55.1 in). A deep cavity, a tall core or a long attachment head each uses up Z quickly, and a short stroke forces long tools, which chatter. The longer strokes trade stiffness at full extension instead. Decide from the tallest mould and the longest tool, and ask for the distance from spindle nose to table at both ends of the stroke, which the series table omits.
Feeler says the spindle head and slide contact surfaces are enlarged to increase rigidity and dampen vibration. That is the part of the structure a long Z stroke loads most.
Load is 24 ton, or 27 ton bracketed, matching the longer but narrower FDM-7228. X and Z rapid at 12 m/min (472 ipm), Y at 15 m/min (591 ipm). The spindle is listed at 6,000 rpm on BT/DIN/CAT 50 with 4,000-8,000 rpm and #40 bracketed; Y has a bracketed 3,700 mm (145.7 in); the magazine is 24 tools with 32-90 bracketed.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,200 mm (244.1 in) |
| Y Axis Travel | 3,100 (3,700) mm (122.0 (145.7) in) |
| Z Axis Travel | 800 (1,000-1,400) mm (31.5 (39.4-55.1) in) |
| Table Length | 6,000 mm (236.2 in) |
| Table Width | 2,600 mm (102.4 in) |
| Max Table Load | 24 (27) ton |
| Max Spindle Speed | 6,000 (4,000-8,000) rpm |
| Spindle Taper | BT/DIN/CAT 50(#40) |
| Rapid Traverse X | 12 m/min (472 ipm) |
| Rapid Traverse Y | 15 m/min (591 ipm) |
| Rapid Traverse Z | 12 m/min (472 ipm) |
| Tool Capacity | 24 (32-90) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Z travel options of 1,000-1,400 mm (39.4-55.1 in) for deep moulds
- 24 ton load, 27 ton bracketed, on a 6,000 mm table
- 3,100 mm (122.0 in) of Y travel over a 2,600 mm wide table
- Enlarged spindle head and slide contact surfaces for rigidity
Limitations
- Listed Z travel is only 800 mm (31.5 in)
- X rapid of 12 m/min (472 ipm)
- Spindle-nose-to-table distance is not given in the series table
Best For
Frequently Asked Questions
01
800 mm (31.5 in) as listed. The brackets give 1,000-1,400 mm (39.4-55.1 in), which reads as a range of longer strokes available to order. Z rapid traverse is 12 m/min (472 ipm).
02
24 ton as listed and 27 ton by the bracketed figure, on a table of 6,000 × 2,600 mm. The wider FDM-6235 is listed at 27 (30) ton.
03
The FDM-7232, with 7,200 mm of X travel, a 7,000 mm table and a load row of 27 (30) ton. Y travel, Z travel, spindle and magazine rows are the same as on the FDM-6232.
04
Feeler states that the spindle head and slide contact surfaces are enlarged to increase rigidity and dampen vibration, and that this allows the use of larger diameter tools and improves material removal rates. No dimensions or stiffness values are given.
