Ermak Smart Plasma 40120

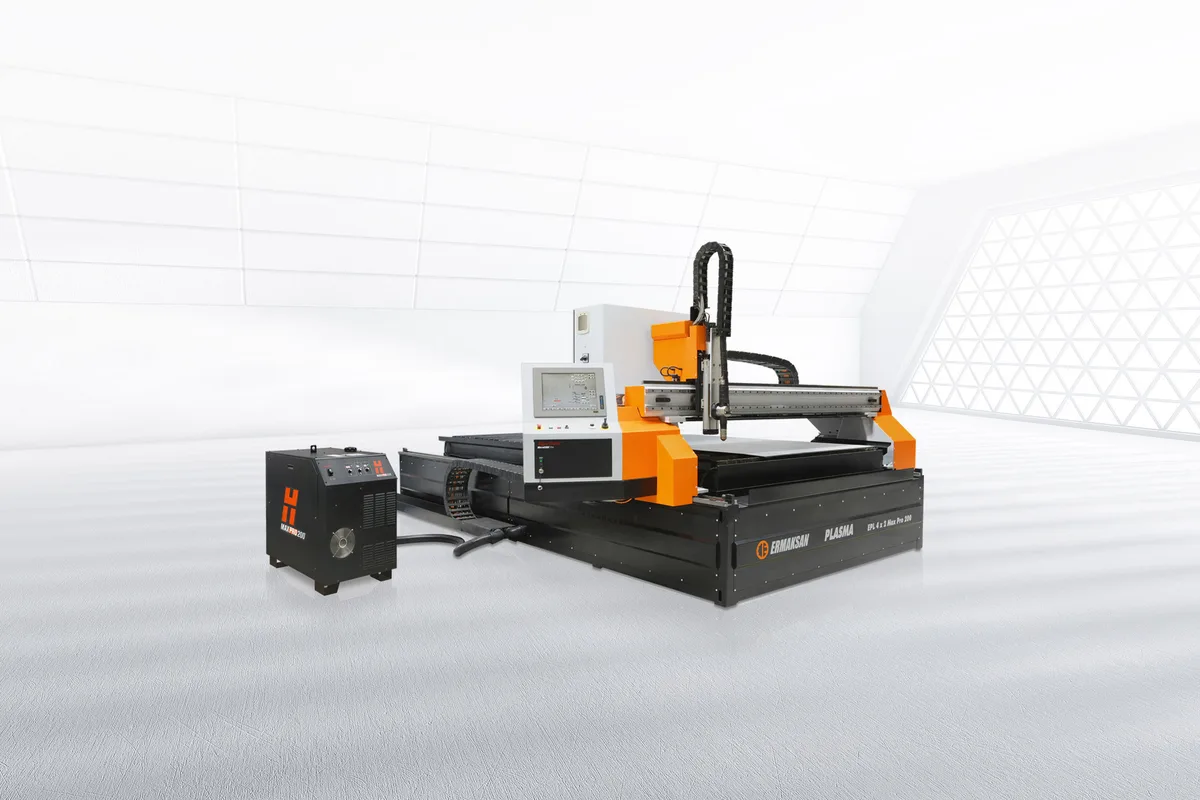

Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 40120 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 40120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 40120 tops the three-axis Smart Plasma line with a cutting area of 4,000 mm (157.5 in) by 12,000 mm (472.4 in).
At 22,100 kg (48,721 lb) it weighs more than seven times the smallest machine of the line, the Smart Plasma 1530 Compact at 3,050 kg. The comparison shows how far the Smart name stretches: from a workshop table to a full plate-processing bay.
Total width is 6,150 mm (242.1 in). The machine needs a hall bay to itself, with crane cover over all twelve metres and room at the sides to clear parts.
Ermak's table makes no distinction in the cutting rows. The plasma unit is the Hypertherm Maxpro200, capacity is 1 to 50 mm, traverse is 35 m/min and repeatability ±0.05 mm. Table height is 750 mm and overall height 2,280 mm, as on the smallest model.
The bevel-capable EPL 3/5 Axis Plasma 40120 covers an identical area and is not much heavier at 23,500 kg. The choice between the two is about process, three axes and a faster traverse here against A and B axes there, and not about size.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 4,000 mm (157.5 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 6,150 mm (242.1 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 22,100 kg (48,721 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 x 12,000 mm, the largest bed of the Smart Plasma line
- 35 m/min traverse on the largest gantry
- Hypertherm Maxpro200 with 1 to 50 mm capacity
- Standard return feature after an interrupted cut
- Optional oxy-fuel cutting for thicker plate
Limitations
- 22,100 kg (48,721 lb) machine weight
- 6,150 mm wide and more than twelve metres long
- Three-axis cutting only, with no bevel head
- Safety light curtain and cage barrier are options
Best For
Frequently Asked Questions
01
4,000 mm (157.5 in) wide and 12,000 mm (472.4 in) long. The table lists a cutting capacity of 1 to 50 mm for the plasma unit.
02
22,100 kg (48,721 lb). The six-metre Smart Plasma 4060, built on a gantry of equal width, is listed at 12,000 kg.
03
The EPL 3/5 Axis Plasma 40120 has A and B axes for an optional bevel head, traverses at 20 m/min and weighs 23,500 kg. This model has three axes and a 35 m/min traverse. Pick by whether bevels are needed.
04
A 400V, 50Hz supply and 6 Bar air according to the table, floor space for a 6,150 mm (242.1 in) wide gantry, and crane access along the whole bed.
