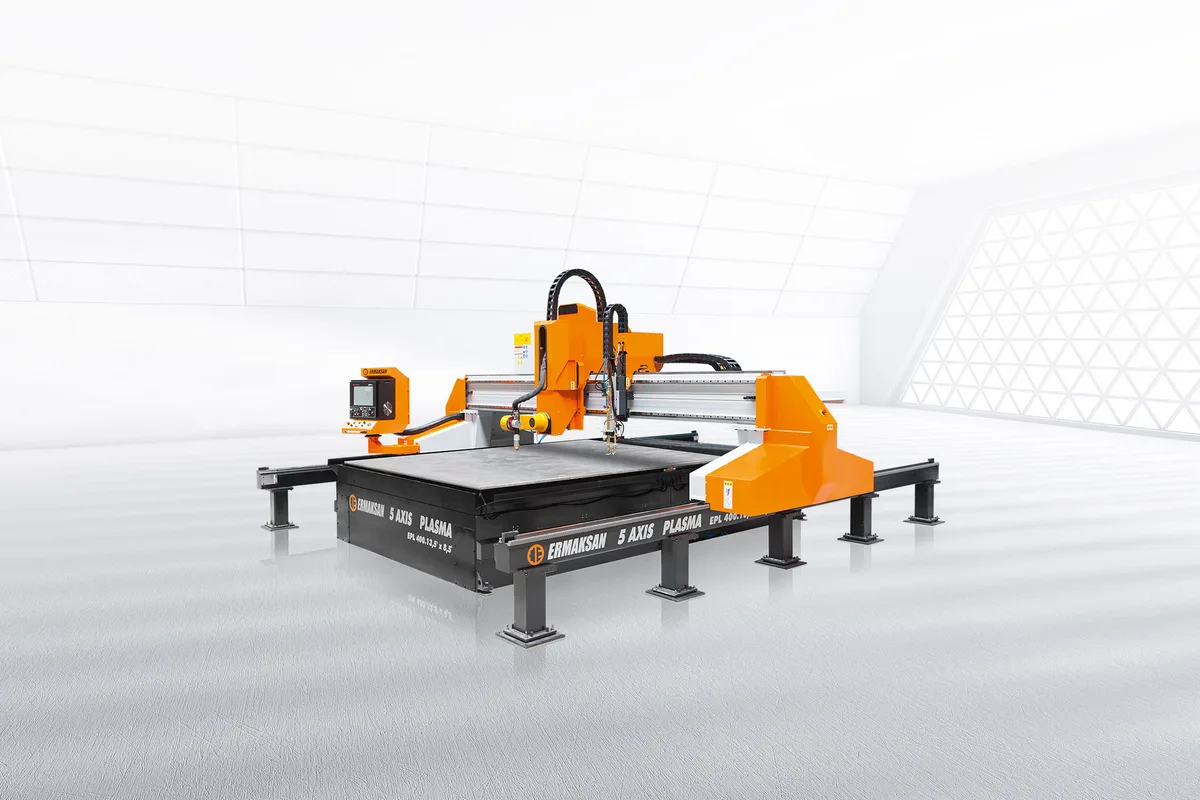

Ermak EPL 3/5 Axis Plasma 40120
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 40120 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 40120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 4,000 mm (157.5 in) by 12,000 mm (472.4 in), the Ermak EPL 3/5 Axis Plasma 40120 is the largest machine in Ermak's high-definition plasma table.
It is also by far the heaviest, at 23,500 kg (51,808 lb). The next heaviest, the EPL 3/5 Axis Plasma 30120, weighs 16,900 kg. A buyer should treat this as a building project as much as a machine purchase: rail foundations, plate handling and fume control all scale with the bed.
What the size buys is the ability to take any plate a mill normally supplies, in any orientation, and to keep several jobs on the table at once. Total width is 6,400 mm (252 in) and height 2,280 mm.
The remaining rows of the table do not change with size. The plasma unit is the Hypertherm HPR130XD with a 1 to 38 mm capacity, the traverse speed is 20 m/min, repeatability is ±0.05 mm, and the supply is 400V, 50Hz with 6 Bar air.
Given the plate this table will see, the larger optional power units are worth a look. Ermak lists the Hypertherm XPR300 and HPR400 XD for the series.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 4,000 mm (157.5 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 6,400 mm (252 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 23,500 kg (51,808 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 x 12,000 mm, the largest cutting area in the series
- Takes mill plate in either orientation
- Several jobs can sit on the table at once
- Optional XPR300 and HPR400 XD power units
- Ermak THC torch height control is standard
Limitations
- 23,500 kg (51,808 lb), far heavier than any other size
- Needs 6,400 mm of width and more than twelve metres of rail
- The listed HPR130XD unit stops at 38 mm
- Fume filtering has to be added as an option
Best For
Frequently Asked Questions
01
The cutting area is 4,000 mm (157.5 in) wide and 12,000 mm (472.4 in) long. The gantry is 6,400 mm (252 in) wide and 2,280 mm (89.8 in) high.
02
23,500 kg (51,808 lb). That compares with 13,400 kg for the six-metre EPL 3/5 Axis Plasma 4060, which uses a gantry of equal width.
03
The table lists the Hypertherm HPR130XD with a capacity of 1 to 38 mm. For heavier work Ermak offers the XPR300 and HPR400 XD power units and an oxy-fuel cutting system as options.
04
The traverse speed is listed as 20 m/min, with position repeatability of ±0.05 mm to DIN 28206. Axes are driven by Mitsubishi digital AC servo motors.
