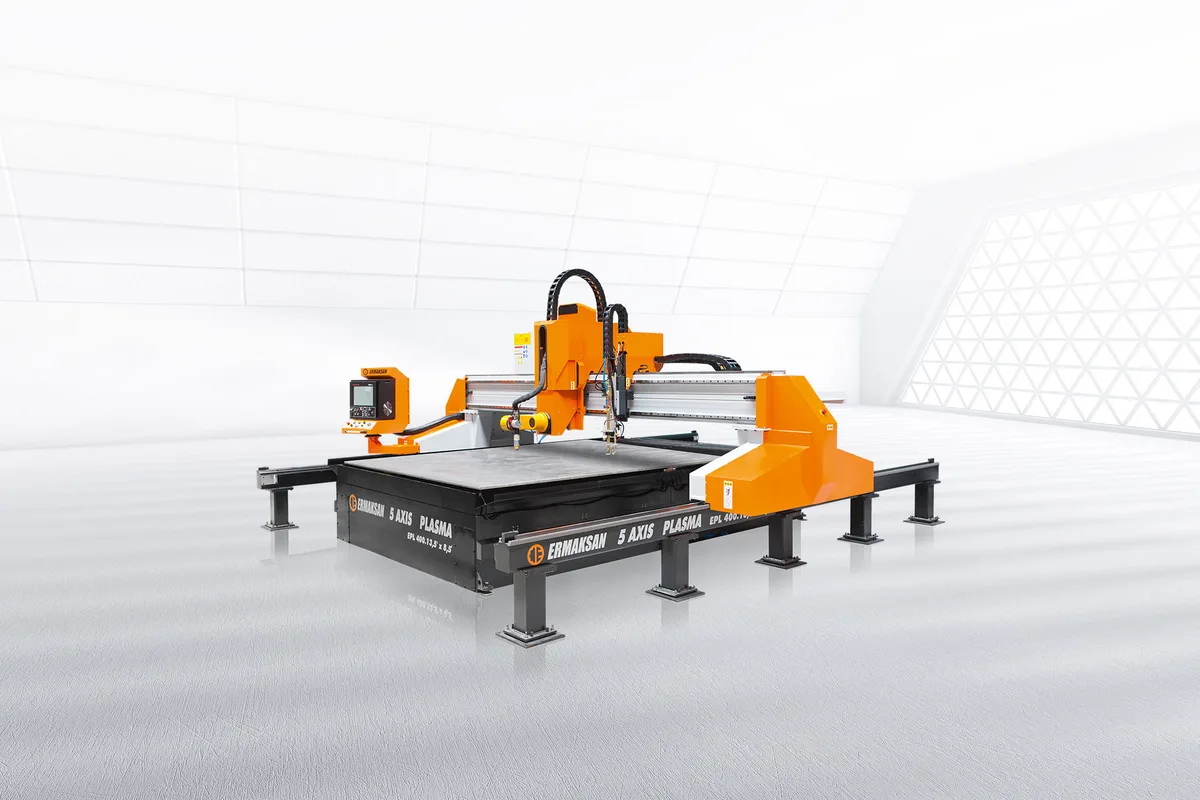

Ermak EPL 3/5 Axis Plasma 25120
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 25120 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 25120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak EPL 3/5 Axis Plasma 25120 covers the full mill plate: 2,500 mm (98.4 in) of cutting width over 12,000 mm (472.4 in) of cutting length.
For a steel fabricator that is the size that removes handling. A plate comes off the truck, goes onto the table once and leaves as parts, with no flame-cut split beforehand. The machine weighs 15,850 kg (34,943 lb), against 9,200 kg for the six-metre EPL 3/5 Axis Plasma 2560.
The gantry itself is the one used on that shorter model. Total width is 5,200 mm (204.7 in) and total height 2,280 mm.
Ermak's table lists the Hypertherm HPR130XD plasma unit, a 1 to 38 mm cutting capacity and Ermak THC torch height control. On a plate this long the height control does real work, because twelve metres of plate on a slat table are never flat.
Options worth pricing with a table this size include the filtering unit, which draws off smoke and particles by suction, and the marking pen, a pneumatic tool that engraves text or figures on flat surfaces before the parts are separated.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,500 mm (98.4 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 5,200 mm (204.7 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 15,850 kg (34,943 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,500 x 12,000 mm cutting area for full mill plate
- Ermak THC follows uneven plate along the whole rail
- Gantry width of 5,200 mm, no more than the six-metre model
- Optional marking pen for part identification
- ±0.05 mm repeatability stated to DIN 28206
Limitations
- 15,850 kg (34,943 lb) of machine to found and level
- Filtering unit is an option, not standard
- 38 mm cutting capacity with the listed unit
- Bevel cutting requires the optional 5-axis head
Best For
Frequently Asked Questions
01
Yes, up to 2,500 mm (98.4 in) wide and 12,000 mm (472.4 in) long. The table surface is 750 mm above the floor and the cutting capacity is 1 to 38 mm.
02
15,850 kg (34,943 lb). The gantry is 5,200 mm (204.7 in) wide in total and 2,280 mm (89.8 in) high, and it needs 400V, 50Hz and 6 Bar air.
03
With the optional marking pen. Ermak describes it as a pneumatic marking tool for precise engraving of text or figures on flat metal surfaces.
04
The filtering unit, which cleans smoke and small particles formed during cutting by suction, is listed as optional. A water table is another option for reducing dust and noise.
