Arclight Dynamics Arc Pro Elite V3 5x10

Q: How much does the Arclight Dynamics Arc Pro Elite V3 5x10 cost?

The price estimate for the Arclight Dynamics Arc Pro Elite V3 5x10 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/arclight-dynamics-arc-pro-elite-v3-5x10#price; the request is passed to Arclight Dynamics or an authorised dealer.

Specs verified 2026-10-05 · arclightcnc.com Updated 2026-10-05

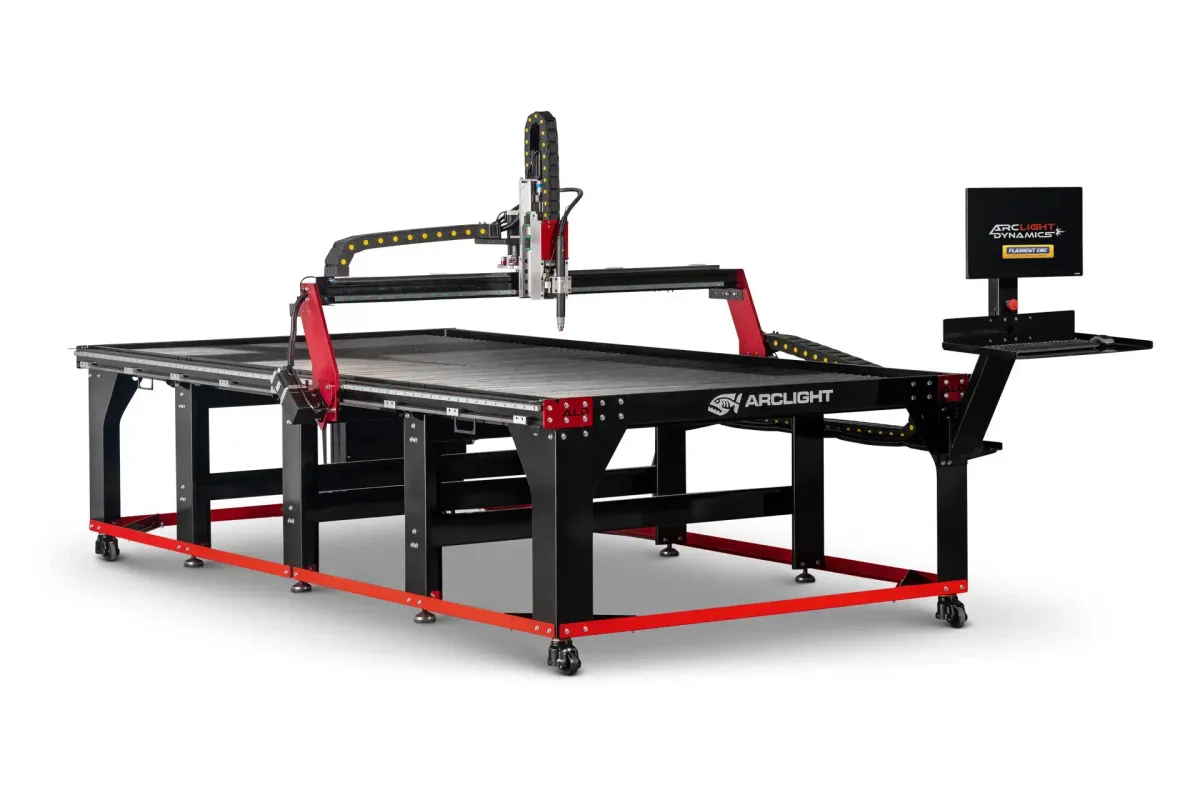

Arclight Dynamics Arc Pro Elite V3 5x10 CNC plasma table

Image: arclightcnc.com, Arclight Dynamics

Key Specifications

Accuracy

0.001 in (0.025 mm)

cutting area

65 x 132 x 9 in (1,651 x 3,353 x 229 mm)

max plate thickness

1.5 in (38 mm) mild steel

machine dimensions

93 x 186 in and 74 in tall (2,362 x 4,724 x 1,880 mm)

base dimensions

73 x 145 in (1,854 x 3,683 mm)

machine weight

1,300 lb (590 kg)

How much does the Arclight Dynamics Arc Pro Elite V3 5x10 cost?

Price estimate

Uncertain

We do not have a price for the Arclight Dynamics Arc Pro Elite V3 5x10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Arclight Dynamics Arc Pro Elite V3 5x10 is the largest table in its series, with a 65 x 132 in cutting envelope and 9 in of Z. It is the Arc Pro platform fitted with the Flashcut CNC control package. A 5 x 10 sheet fits with length to spare, and a 4 x 8 sheet leaves a full strip free down one side.

The hardware under the Elite badge is shared with the rest of the Arc Pro line. NEMA 34 motors and planetary gear boxes move a dual-drive gantry along Hiwin 20 mm linear guide rails, the Z axis is a ball screw, and the heavy-duty steel frame is welded. Arclight states 0.001 in positioning accuracy and a 1.5 in mild steel rating. The table rolls and levels on its standard leveling rollers.

Size shows up everywhere else too. The water pan holds 158.5 gallons, the base is 73 x 145 in, and overall dimensions are listed as 93 x 186 in and 74 in tall. The table weighs 1,300 lb. A 5 x 10 sheet is beyond hand loading in anything but thin gauge, so lifting gear belongs in the plan.

What sets this table apart is Flashcut CNC, which combines drawing, toolpath generation and machine control. A shop that receives customer DXF files gets the most from it: the fix tool repairs open or doubled geometry, and true shape nesting places parts from several files over one or more sheets. Images can be traced into outline or centerline toolpaths. Torch height control with dynamic voltage sampling is included, and the plasma cutter is a separate selection.

Full Specifications

Parameter	Value
Cutting Area	65 x 132 x 9 in (1,651 x 3,353 x 229 mm)
Max Plate Thickness	1.5 in (38 mm) mild steel
Machine Dimensions	93 x 186 in and 74 in tall (2,362 x 4,724 x 1,880 mm)
Base Dimensions	73 x 145 in (1,854 x 3,683 mm)
Machine Weight	1,300 lb (590 kg)
Water Pan Capacity	158.5 gallons (600 L)
Positioning Accuracy	0.001 in (0.025 mm)
Frame	Steel
Gantry	Dual-drive gantry with machined aluminum risers
Motors	NEMA 34 stepper motors with planetary gear boxes
Z Axis Drive	Ball screw
Linear Guides	Hiwin 20 mm precision linear guide rails
CNC Control	Flashcut CNC (integrated CAD/CAM/CNC)
Table Power	110 V / 15-20 A

Specifications sourced from arclightcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Flashcut CNC control with integrated CAD/CAM/CNC and true shape nesting
NEMA 34 motors, planetary gear boxes and a ball screw Z axis
Fix tool for imported CAD files and bitmap-to-toolpath conversion
Largest envelope in the series: 65 x 132 in

Limitations

The mechanical table is unchanged from the Arc Pro Ultra V3; the difference is the control package
A plasma cutter has to be added to the base table
158.5 gallons of water to fill and maintain, and overall dimensions of 93 x 186 in and 74 in tall

Best For

Production nesting on 5 x 10 sheet Long parts such as rails, stringers and trailer components Shops that nest customer DXF files and want CAD, CAM and control in one package

Frequently Asked Questions

01 What is the cutting area of the Arc Pro Elite V3 5x10?

65 x 132 in, with 9 in of Z. That covers a 5 x 10 sheet with margin. The table is rated for 1.5 in mild steel and weighs 1,300 lb.

02 What plate thickness is the Arc Pro Elite V3 rated for?

Arclight rates the table for 1.5 in thick mild steel, with 9 in of Z in the cutting envelope. Cut capacity in practice follows the plasma cutter chosen for it.

03 What space and services does the Arc Pro Elite V3 5x10 need?

The base is 73 x 145 in and overall dimensions are 93 x 186 in and 74 in tall. The pan takes 158.5 gallons of water and the table runs on 110 V at 15 to 20 A. Add clear floor on one side for a 5 x 10 sheet.

04 What is the difference between the Arc Pro Elite V3 and the Arc Pro Ultra V3?

The control. Arclight describes the Elite as the Arc Pro platform configured with the Flashcut CNC control package, where the Ultra runs Arc CNC software. The motors, gear boxes, linear rails, ball screw Z axis and frame are listed identically for both.
