Ermak EPL 3/5 Axis Plasma 20120

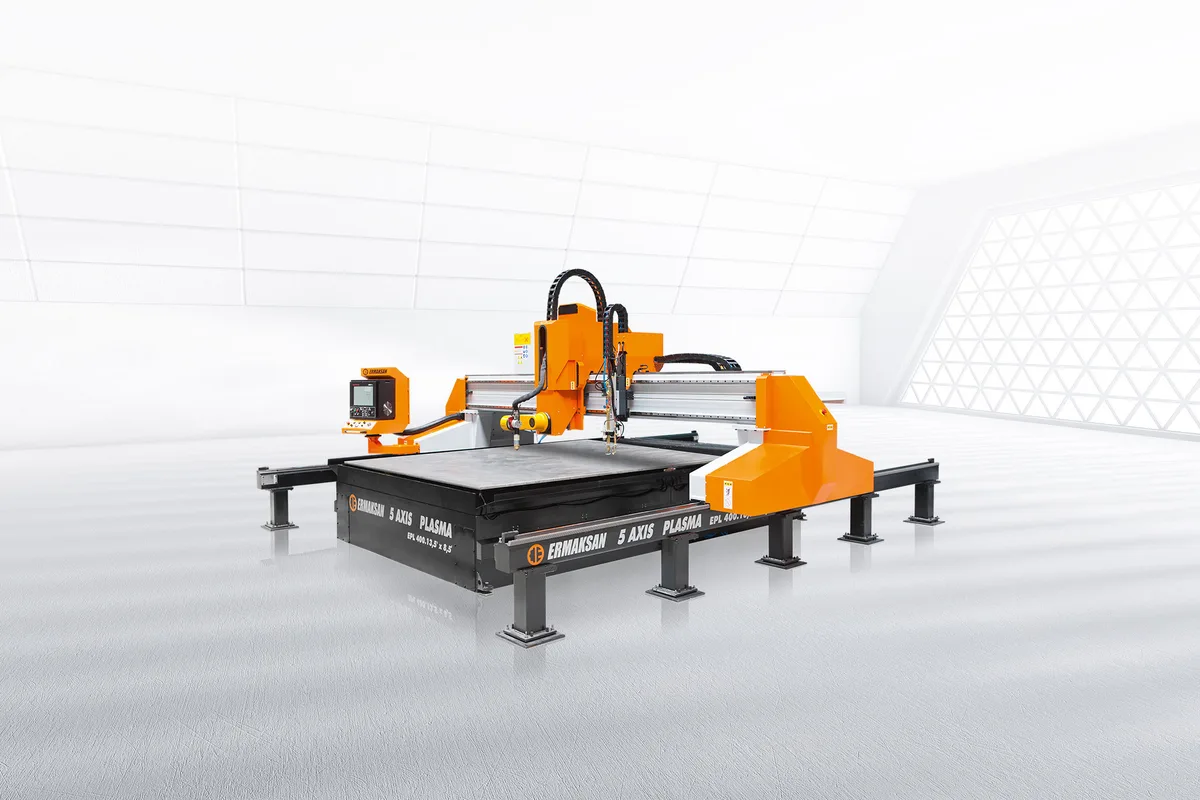

Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 20120 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 20120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Twelve metres of rail on a two-metre gantry: the Ermak EPL 3/5 Axis Plasma 20120 has a cutting length of 12,000 mm (472.4 in) and a cutting width of 2,000 mm (78.7 in).
The long, narrow bed suits two kinds of work. The first is long parts, such as flanges for girders, strips and stiffeners, cut from full-length plate. The second is zone working, with several plates laid along the rail so that finished ones can be unloaded while the torch is busy further down.
Nothing in the cutting specification changes with length. The table names the Hypertherm HPR130XD, a capacity of 1 to 38 mm, a 20 m/min traverse and ±0.05 mm repeatability. At that speed a full run down the rail takes over half a minute, which is one reason to group parts by zone.
The machine weighs 13,550 kg (29,872 lb). Total width remains 4,700 mm (185 in), so of all the twelve-metre models this one needs the least floor width.
Ermak lists a portal table, described as a heavy-duty design used in larger machines, as an option; a water table that reduces heat, dust and noise is optional too.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,000 mm (78.7 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 4,700 mm (185 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 13,550 kg (29,872 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 12,000 mm cutting length on the narrowest gantry of the long models
- Room for several plates along the rail
- 13,550 kg (29,872 lb), the lightest twelve-metre machine in the series
- Optional portal table for heavy plate
- Standard point laser light shows the torch position
Limitations
- Only 2,000 mm of cutting width
- A 20 m/min traverse is slow over a twelve-metre rail
- Portal and water tables are extra-cost options
- Capacity of 38 mm with the unit in the table
Best For
Frequently Asked Questions
01
12,000 mm (472.4 in), with a cutting width of 2,000 mm (78.7 in). The gantry measures 4,700 mm across and 2,280 mm in height.
02
Not in the table. Position repeatability is listed as ±0.05 mm to DIN 28206 for every size of the series, and the traverse speed is 20 m/min throughout.
03
Ermak lists a portal table, a heavy-duty design used in larger machines, and a water table that reduces heat, dust and noise during cutting. Both are options.
04
The EPL 3/5 Axis Plasma 2060 has a 6,000 mm cutting length and weighs 8,150 kg. This model doubles the length to 12,000 mm and weighs 13,550 kg (29,872 lb); width and plasma unit are unchanged.
