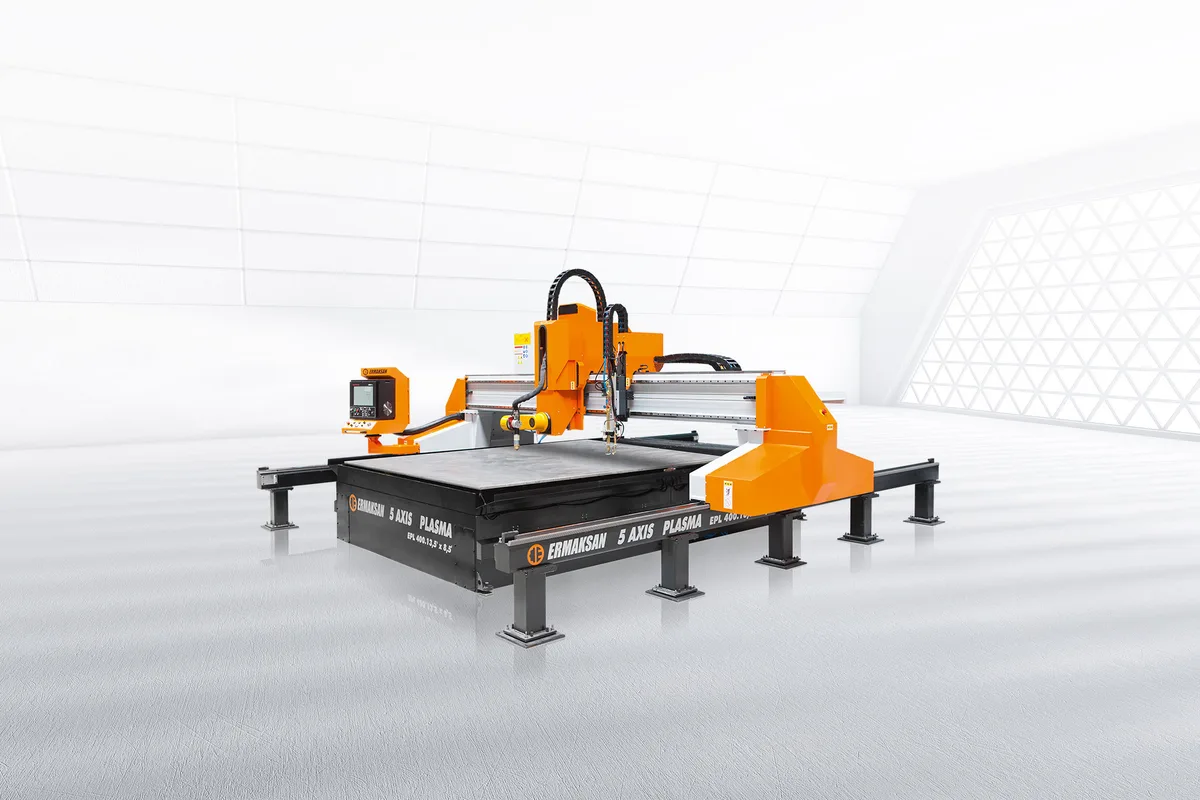

Ermak EPL 3/5 Axis Plasma 4060
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 4060 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 4060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak EPL 3/5 Axis Plasma 4060 has the widest gantry Ermak lists for this series: 4,000 mm (157.5 in) of cutting width, with a cutting length of 6,000 mm (236.2 in).
Four metres of width is a specialist requirement. Tank ends, large flanges, ship and vessel plate and wide machine frames are the parts that need it. For ordinary sheet the same bed simply takes two two-metre plates next to each other, which doubles what a loading cycle delivers.
A bridge that long is heavy. This model weighs 13,400 kg (29,541 lb), against 9,950 kg for the EPL 3/5 Axis Plasma 3060 on a bed of equal length. Total width reaches 6,400 mm (252 in).
The cutting data are common to the series. Ermak's table names the Hypertherm HPR130XD, a capacity of 1 to 38 mm and a traverse of 20 m/min, with ±0.05 mm repeatability to DIN 28206.
Wide parts often carry bevels. The optional 5-axis cutting head handles those, and Ermak lists further configurations that add bevel cutting on pipe for diameters of 50 - 400 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 4,000 mm (157.5 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 6,400 mm (252 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 13,400 kg (29,541 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 mm cutting width, the widest in the series
- Two two-metre plates fit side by side
- 6,000 mm cutting length on a 6,400 mm wide gantry
- Optional bevel configurations for plate and pipe
- Hypertherm Edge Connect TC controller with Mitsubishi servo motors
Limitations
- 13,400 kg (29,541 lb), much heavier than the three-metre model
- 6,400 mm (252 in) of floor width for the gantry alone
- Length limited to 6,000 mm
- Plasma capacity of 38 mm with the listed unit
Best For
Frequently Asked Questions
01
4,000 mm (157.5 in), over a cutting length of 6,000 mm (236.2 in). The gantry's total width is 6,400 mm (252 in).
02
The table gives 13,400 kg (29,541 lb) for this model and 9,950 kg for the EPL 3/5 Axis Plasma 3060. Ermak does not break the figure down; the longer bridge and wider table are the visible differences.
03
Yes, the EPL 3/5 Axis Plasma 40120 keeps the 4,000 mm width and has a 12,000 mm cutting length, at a weight of 23,500 kg.
04
The Hypertherm HPR130XD in the table is listed with a cutting capacity of 1 to 38 mm. Torch height is controlled by the Ermak THC.
