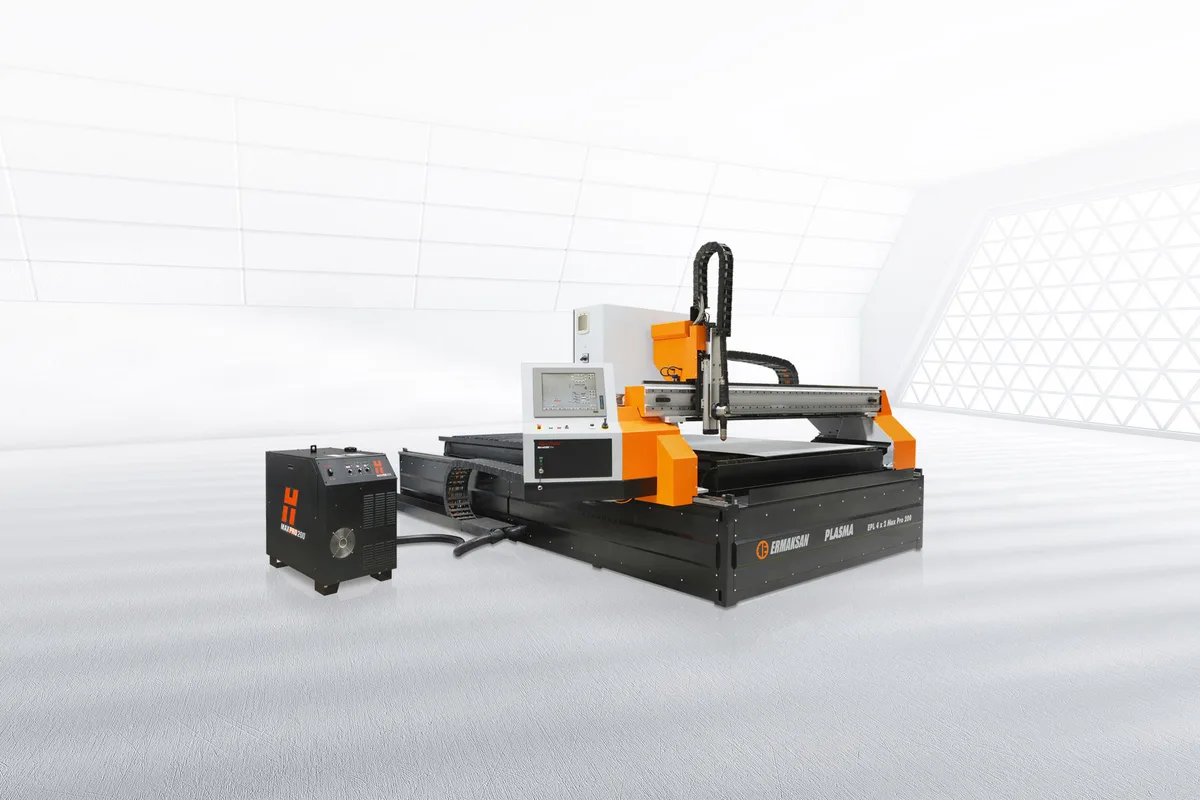

Ermak Smart Plasma 1530 Compact
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 1530 Compact cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 1530 Compact that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 1530 Compact is the entry machine of Ermak's Smart Plasma line: a three-axis gantry with a cutting width of 1,500 mm (59.1 in) and a cutting length of 3,000 mm (118.1 in).
Compact is meant literally. Total width is 3,250 mm (128 in) and the whole machine weighs 3,050 kg (6,724 lb), figures that let it stand in a corner of a general workshop. The high-definition EPL 3/5 Axis Plasma 1530 with an identical cutting area is 4,200 mm wide and weighs 5,150 kg.
Ermak's table names the Hypertherm Maxpro200 as the plasma unit and gives a cutting capacity of 1 to 50 mm. The gantry traverses at 35 m/min, and position repeatability is ±0.05 mm to DIN 28206.
There are no rotary axes: the axis row reads X, Y, Z. Square-edge profiles are the job, and bevels are limited to what a manual ±45° apparatus on the oxy-fuel option can do.
ProNest LT nesting software and the Hypertherm Edge Connect TC controller are standard. The machine runs from 400V, 50Hz and 6 Bar air, and the table is 750 mm high.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 1,500 mm (59.1 in) |
| Cutting Length | 3,000 mm (118.1 in) |
| Total Width | 3,250 mm (128 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 3,050 kg (6,724 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,050 kg (6,724 lb) and 3,250 mm wide, the smallest machine Ermak lists for plasma
- 1 to 50 mm cutting capacity with the Hypertherm Maxpro200
- 35 m/min traverse speed on three axes
- ProNest LT nesting software is standard
- Plate alignment from two corners is a standard function
Limitations
- Three axes only (X, Y, Z): no automatic bevel cutting
- Cutting area limited to 1,500 x 3,000 mm
- Filtering unit and marking pen are options
- Oxy-fuel cutting is an option, not standard
Best For
Frequently Asked Questions
01
Total width is 3,250 mm (128 in), total height 2,280 mm (89.8 in) and the weight 3,050 kg (6,724 lb). The cutting area inside that is 1,500 mm by 3,000 mm.
02
The table lists a cutting capacity of 1 to 50 mm with the Hypertherm Maxpro200 plasma unit. Ermak's equipment list also offers Powermax units for the series.
03
Not automatically. The machine has X, Y and Z axes only. Ermak lists a manual ±45° angle cutting apparatus for oxy-fuel cutting as an option; the 5-axis head belongs to the EPL 3/5 Axis series.
04
ProNest LT, which Ermak describes as nesting software for light industrial mechanized cutting. The controller is a Hypertherm Edge Connect TC.
