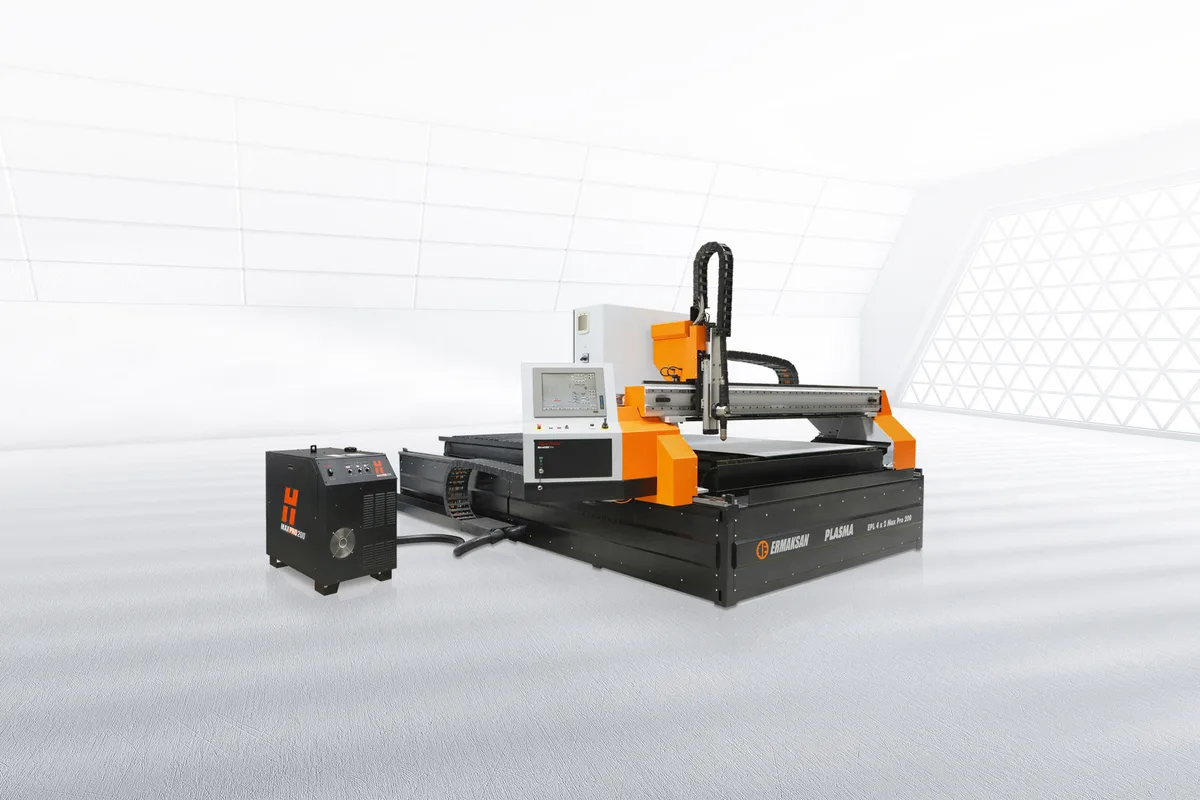

Ermak Smart Plasma 2040 Compact
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 2040 Compact cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 2040 Compact that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 2040 Compact cuts 2,000 mm (78.7 in) wide and 4,000 mm (157.5 in) long, and is the larger of the two models Ermak sells under the Compact name.
Going from the Smart Plasma 1530 Compact, at 3,250 mm, to this size takes the total width to 3,750 mm (147.6 in) and the weight to 4,500 kg (9,921 lb). In return the table takes the two-by-four-metre plate that the smaller machine cannot.
Motion is on three axes at up to 35 m/min. Servo motors, drives and Neugart planetary reducers are credited by Ermak with the high acceleration of the series, which matters on a plasma table because short moves between pierce points make up much of the cycle.
The Hypertherm Maxpro200 in the table cuts from 1 to 50 mm. Torch height is held by the Ermak THC, backed by software that detects and corrects arc voltage changes during the cut.
Services are modest: 400V, 50Hz and 6 Bar air. Table height is 750 mm and overall height 2,280 mm. Position repeatability is listed as ±0.05 mm to DIN 28206.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,000 mm (78.7 in) |
| Cutting Length | 4,000 mm (157.5 in) |
| Total Width | 3,750 mm (147.6 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 4,500 kg (9,921 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,000 x 4,000 mm cutting area in a 3,750 mm wide machine
- 4,500 kg (9,921 lb), light enough for an ordinary workshop floor
- Automatic cutting height correction software is standard
- Neugart planetary reducers on the axis drives
- Up to 50 mm cutting capacity with the listed plasma unit
Limitations
- Six-metre plate is too long for the 4,000 mm bed
- No A or B axis for bevel cutting
- The mobile control panel platform is an option
- Fume filtering has to be ordered separately
Best For
Frequently Asked Questions
01
It cuts 2,000 mm (78.7 in) by 4,000 mm (157.5 in). Total width is 3,750 mm (147.6 in), total height 2,280 mm and the weight 4,500 kg (9,921 lb).
02
The Ermak THC controls torch height, and the standard automatic cutting height correction software detects and corrects arc voltage changes during plasma cutting.
03
Yes. The Smart Plasma 2060 has a 6,000 mm cutting length on a 2,000 mm width, is 3,950 mm wide overall and weighs 6,750 kg.
04
Traverse speed is listed at 35 m/min, with position repeatability of ±0.05 mm to DIN 28206. The axes are driven by Mitsubishi digital AC servo motors.
