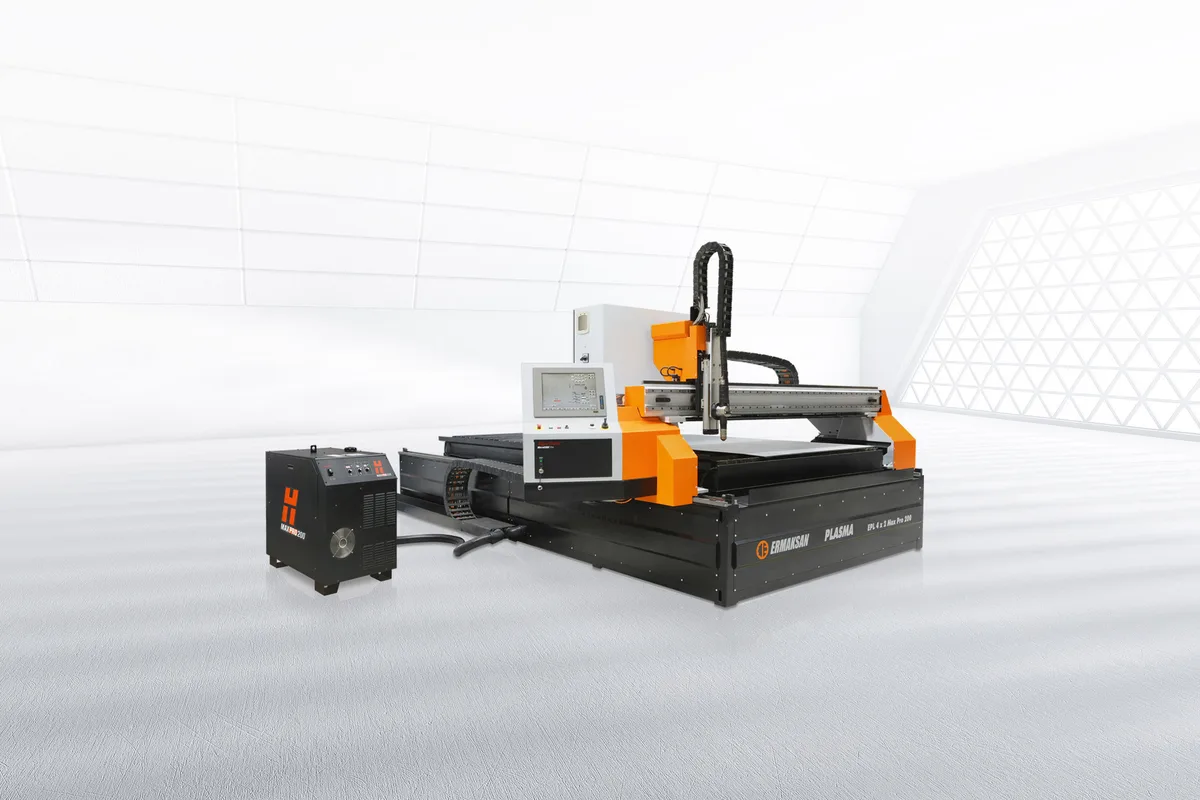

Ermak Smart Plasma 2560
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 2560 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 2560 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a cutting width of 2,500 mm (98.4 in) and a cutting length of 6,000 mm (236.2 in), the Ermak Smart Plasma 2560 is sized for the wide plate that structural steel shops receive from the mill.
Plate of that width is often thick as well as heavy, and this is where the table's plasma unit earns its place. The Hypertherm Maxpro200 is listed with a cutting capacity of 1 to 50 mm, the full range of the line.
The machine is 4,450 mm (175.2 in) wide overall and weighs 7,650 kg (16,865 lb). The Smart Plasma 2060 is listed at 6,750 kg and 3,950 mm, so the wider bed adds little to either figure.
The gantry moves at 35 m/min on Mitsubishi digital AC servo motors. Position repeatability is listed as ±0.05 mm, and the table surface is 750 mm above the floor.
Operators work from the control panel integrated into the bridge. For a wide machine Ermak also offers a platform, a mobile control panel stand that moves independently of the gantry; it is an option. Supply requirements are 400V, 50Hz and 6 Bar air.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,500 mm (98.4 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 4,450 mm (175.2 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 7,650 kg (16,865 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,500 mm cutting width for mill-width plate
- Full 1 to 50 mm plasma capacity with the Hypertherm Maxpro200
- 7,650 kg (16,865 lb) on a 4,450 mm total width
- 35 m/min traverse on Mitsubishi servo motors
- Optional mobile control panel platform
Limitations
- Square-edge cutting only: the axis list is X, Y, Z
- Twelve-metre plate needs the longer model
- The control platform and filtering unit cost extra
- ±0.05 mm repeatability is a plasma-class figure, not a laser-class one
Best For
Frequently Asked Questions
01
2,500 mm (98.4 in) wide and 6,000 mm (236.2 in) long. Overall the machine is 4,450 mm (175.2 in) wide and 2,280 mm (89.8 in) high.
02
It weighs 7,650 kg (16,865 lb), against 6,750 kg for the Smart Plasma 2060, and total width rises from 3,950 mm on that model to 4,450 mm.
03
The standard control panel is integrated into the bridge. Ermak lists a mobile control panel platform, which moves independently, as an option.
04
Mitsubishi digital AC servo motors with Neugart planetary reducers. The table gives a traverse speed of 35 m/min and a position repeatability of ±0.05 mm to DIN 28206.
