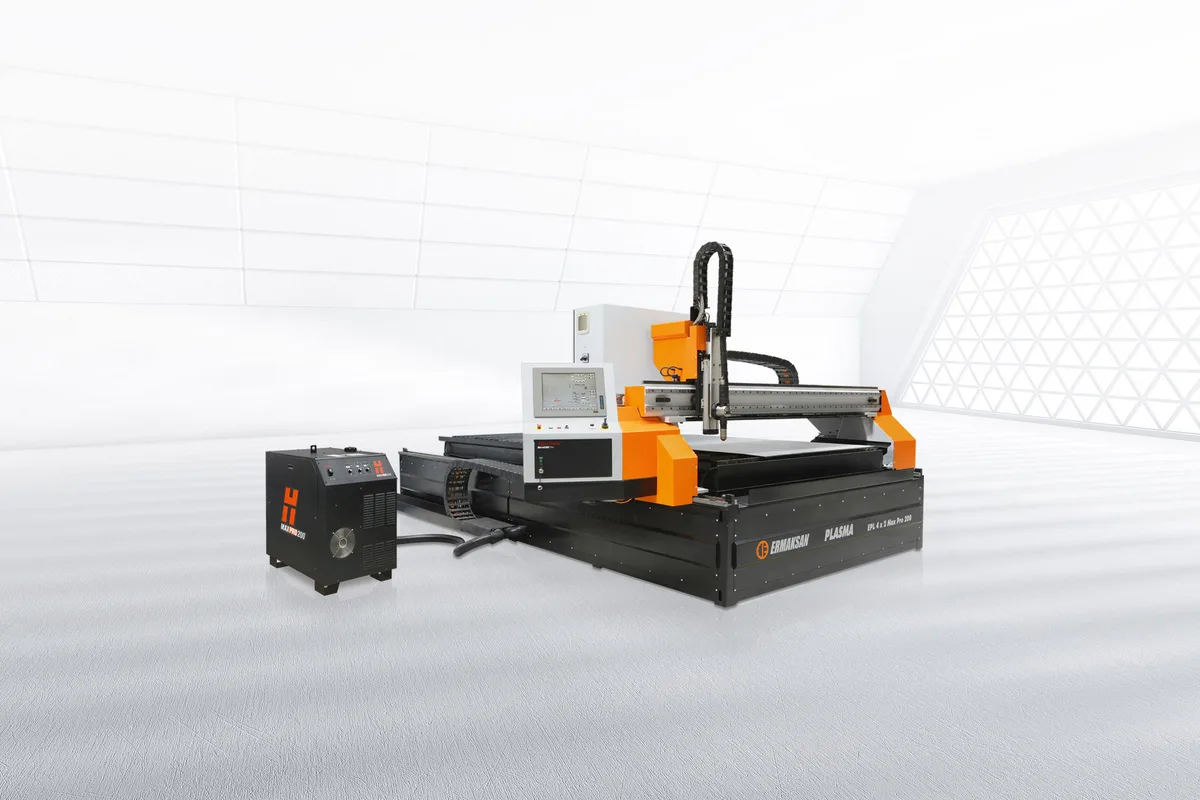

Ermak Smart Plasma 4060
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 4060 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 4060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 4060 is the wide six-metre model of the Smart Plasma line, with a cutting width of 4,000 mm (157.5 in) and a cutting length of 6,000 mm (236.2 in).
Its proportions differ from the rest of the range. Total width jumps to 6,150 mm (242.1 in), and the weight to 12,000 kg (26,455 lb), compared with 8,600 kg for the Smart Plasma 3060. The four-metre bridge is clearly a heavier construction, not a stretched three-metre one.
What goes on a bed this wide? Large circular blanks, tank shells before rolling, wide machine guards and hoppers. Two two-metre plates also fit side by side, which doubles the material available per loading cycle.
The cutting equipment is that of the smaller sizes: Hypertherm Maxpro200 in the table, 1 to 50 mm capacity, Ermak THC. The gantry still traverses at 35 m/min in spite of its span.
Because the torch can be far from the operator on a wide bed, the standard point laser light is useful; Ermak says it lets the operator see more clearly where the torch is.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 4,000 mm (157.5 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 6,150 mm (242.1 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 12,000 kg (26,455 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 mm cutting width for large blanks and shells
- 35 m/min traverse kept on the four-metre bridge
- Two two-metre plates fit side by side
- Point laser light shows the torch position
- 1 to 50 mm capacity with the Hypertherm Maxpro200
Limitations
- 6,150 mm (242.1 in) total width
- 12,000 kg (26,455 lb), well above the three-metre model
- Cutting length of 6,000 mm only
- No automatic bevel on a machine whose parts often need weld preparation
Best For
Frequently Asked Questions
01
The cutting width is 4,000 mm (157.5 in) and the total width 6,150 mm (242.1 in). Cutting length is 6,000 mm (236.2 in) and total height 2,280 mm.
02
12,000 kg (26,455 lb). The Smart Plasma 3060 is listed at 8,600 kg and 4,950 mm of total width, so the step to four metres is a large one.
03
Not in the table. Traverse speed is 35 m/min for every size of the line, and position repeatability is ±0.05 mm to DIN 28206.
04
A point laser light is a standard feature; Ermak says it allows the operator to see more clearly where the torch is. Plate alignment from two corners is also standard.
