Ermak Fibermak SL 3x1.5

Q: How much does the Ermak Fibermak SL 3x1.5 cost?

The price estimate for the Ermak Fibermak SL 3x1.5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-sl-3x1.5#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

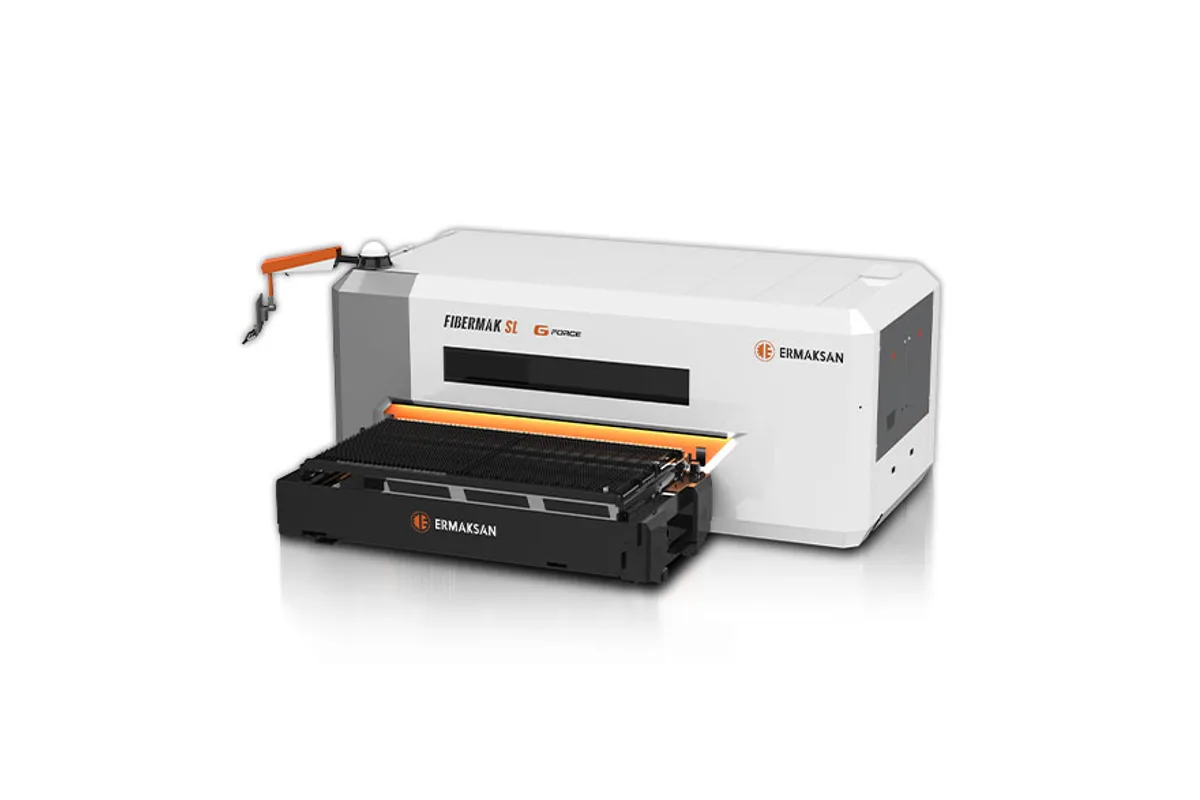

Ermak Fibermak SL series side loading fiber laser

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm/m

Repeatability

±0.015 mm

cutting area

3,000 x 1,500 mm (118.1 x 59.1 in)

max table load

1,500 kg (3,307 lb)

x axis travel

3,050 mm (120.1 in)

y axis travel

1,550 mm (61 in)

How much does the Ermak Fibermak SL 3x1.5 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak SL 3x1.5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A standard three-metre sheet, loaded from the side: the Ermak Fibermak SL 3x1.5 is the reference size of Ermak's side loading fiber laser line. The cutting area is 3,000 x 1,500 mm (118.1 x 59.1 in).

Ermak quotes a floor requirement of 68 m² for a standard 3x1.5 m machine with its integrated loading and unloading system. The machine body itself is 6,900 x 4,700 x 2,610 mm, and the electric cabinet is built into it, which Ermak says cuts down peripheral components and speeds up installation.

Performance is at the top of the SL range. The gantry accelerates at 2.5 G and reaches 141 m/min combined, 100 m/min on one axis. Ermak attributes a productivity gain of up to 15% per hour to the high acceleration.

The two pallets change in 25 s and take 1,500 kg (3,307 lb) each. That load figure matters for thick plate: a full sheet of 3,000 x 1,500 mm reaches it at a moderate thickness, so check the heaviest sheet you intend to cut.

Weight is 16,000 kg (35,273 lb). Standard software is Metalix, with Lantek as the alternative, and features such as fly-cut and nozzle cleaning and calibration are part of the standard package.

Full Specifications

Parameter	Value
Cutting Area	3,000 x 1,500 mm (118.1 x 59.1 in)
Max Table Load	1,500 kg (3,307 lb)
X Axis Travel	3,050 mm (120.1 in)
Y Axis Travel	1,550 mm (61 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	2.5 G
Max Axis Speed	141 m/min combined; 100 m/min single axis (X, Y)
Pallet Changer	2 pallets (25 s)
Machine Dimensions	6,900 x 4,700 x 2,610 mm
Machine Weight	16,000 kg (35,273 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm/m
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5 in 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 10, 12, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz
Power Range	10-105%
Laser Wavelength	1070 ± 5 nm
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Full 3,000 x 1,500 mm sheet in a side loading layout
2.5 G acceleration, 141 m/min combined speed
Electric cabinet integrated into the machine body
Two pallets with a 25 s change
Fly-cut and frequency cutting mode are standard

Limitations

1,500 kg (3,307 lb) pallet load restricts full sheets of thick plate
16,000 kg (35,273 lb) on the floor
Only 150 mm of Z travel for formed parts
Capacities above the 8,000 W source are given only as notes in the maker's table

Best For

Standard 3,000 x 1,500 mm sheet in a narrow building Job shops cutting thin and medium sheet at high acceleration Lines where the laser must stand close to other machines

Frequently Asked Questions

01 How much floor space does the Ermak Fibermak SL 3x1.5 need?

Ermak states 68 m² for a standard 3x1.5 m machine with integrated loading and unloading. The machine dimensions in the table are 6,900 x 4,700 x 2,610 mm.

02 What are its speed and accuracy figures?

2.5 G acceleration, 100 m/min single-axis and 141 m/min combined speed. Positioning accuracy is ±0.03 mm/m and repeatability ±0.015 mm.

03 Which resonators are offered?

The table lists YLS resonators of 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 and 30,000 W. Average consumption runs from 18 kW at 2,000 W to 34 kW at 8,000 W.

04 How heavy a sheet can the pallet take?

Maximum load capacity is 1,500 kg (3,307 lb). The Fibermak SL 4x2 raises that to 2,500 kg on a 4,000 x 2,000 mm area.
