Ermak Fibermak Momentum Gen-5 SM 9x2.6

Q: How much does the Ermak Fibermak Momentum Gen-5 SM 9x2.6 cost?

The price estimate for the Ermak Fibermak Momentum Gen-5 SM 9x2.6 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-momentum-gen-5-sm-9x2.6#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

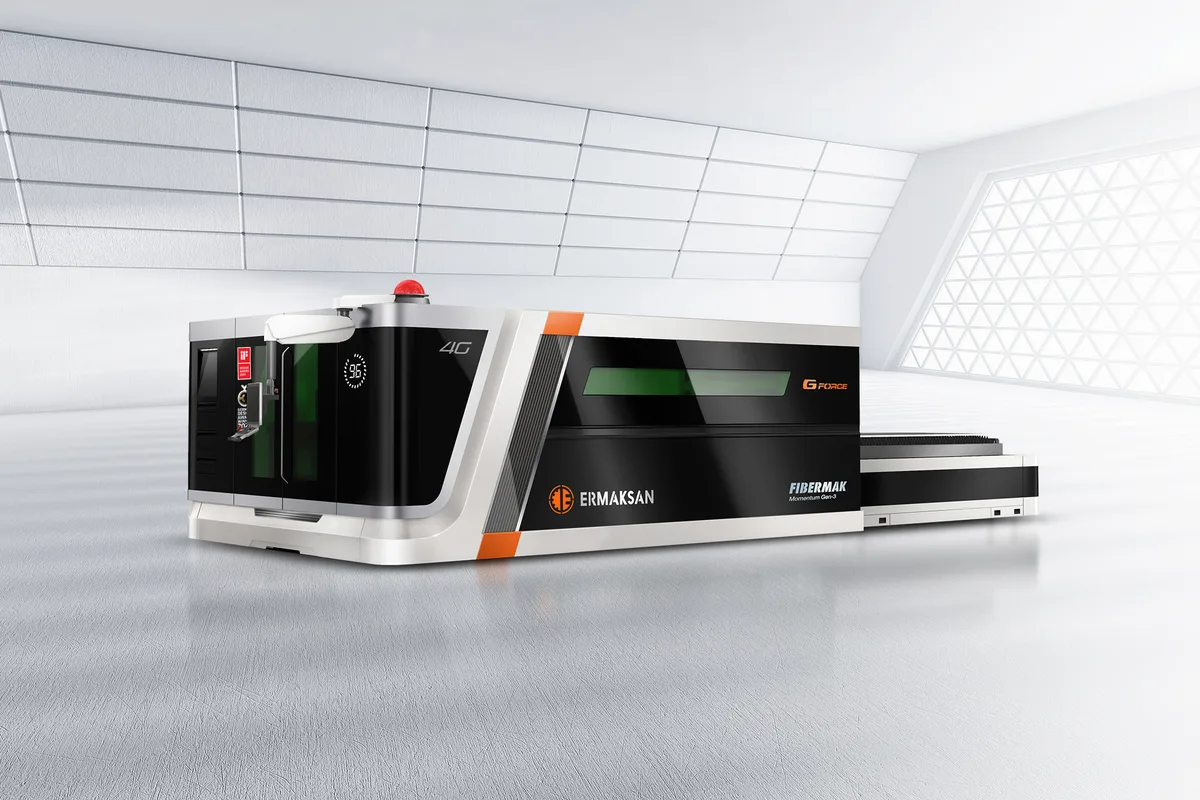

Ermak Fibermak Momentum Gen-5 series fiber laser cutting machine

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm

Repeatability

±0.015 mm

cutting area

9,000 x 2,600 mm (354.3 x 102.4 in)

max table load

7,500 kg (16,534 lb)

x axis travel

9,200 mm (362.2 in)

y axis travel

2,700 mm (106.3 in)

How much does the Ermak Fibermak Momentum Gen-5 SM 9x2.6 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 9x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Ermak Fibermak Momentum Gen-5 SM 9x2.6 cuts 9,000 x 2,600 mm (354.3 x 102.4 in) and marks a boundary in Ermak's table. It is the largest size listed at 113 m/min resultant, and the last for which a linear motor speed is printed at all.

Beyond it, starting with the Fibermak Momentum Gen-5 SM 10x2.6, the servo figure falls to 85 m/min and the linear motor line shows a dash. Buyers who want a long wide table without giving up that speed class therefore end up here.

Pallet capacity is 7,500 kg (16,534 lb). Acceleration is 1.2 G, single-axis speed 80 m/min, and the X axis travels 9,200 mm.

Size and mass are considerable. Ermak lists 22,250 x 6,700 x 2,310 mm and 45,000 kg (99,206 lb). The pallet change takes 100 s, identical to the figure for the narrower Fibermak Momentum Gen-5 SM 9x2, whose pallets carry 6,000 kg.

The feature list is the one the whole series shares: fly-cut, fast piercing and countersink by laser as standard, with the anti-collision system, mixed gas and automatic nozzle changer as options.

Full Specifications

Parameter	Value
Cutting Area	9,000 x 2,600 mm (354.3 x 102.4 in)
Max Table Load	7,500 kg (16,534 lb)
X Axis Travel	9,200 mm (362.2 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	1.2 G
Max Axis Speed	113 m/min resultant; 80 m/min single axis (X, Y)
Max Axis Speed Linear Motor	141 m/min resultant; 100 m/min single axis (X, Y)
Pallet Changer	2 pallets (100 s)
Machine Dimensions	22,250 x 6,700 x 2,310 mm
Machine Weight	45,000 kg (99,206 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz (YLS 2000 to YLS 12000)
Power Range	10-105% (YLS 2000 to YLS 12000)
Laser Wavelength	1070 ± 5 nm (YLS 2000 to YLS 6000)
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

9,000 x 2,600 mm working area
7,500 kg (16,534 lb) per pallet
Largest model listed at 113 m/min resultant
A linear motor figure of 141 m/min resultant is still printed for this size
Fast piercing and fly-cut are standard features

Limitations

45,000 kg (99,206 lb) on a 22,250 x 6,700 mm footprint
1.2 G acceleration is modest for thin sheet
100 s for each pallet change
Anti-collision system and mixed gas cost extra as options

Best For

Nine-metre plate in shipbuilding and crane fabrication Buyers who want a long wide table in the faster speed class Two or three standard sheets laid on one pallet

Frequently Asked Questions

01 Why choose the Ermak Fibermak Momentum Gen-5 SM 9x2.6 over the ten-metre model?

Speed. This size is listed at 80 m/min per axis and 113 m/min resultant with 1.2 G. The Fibermak Momentum Gen-5 SM 10x2.6 is listed at 60 m/min per axis, 85 m/min resultant and 1 G.

02 What do the pallets carry?

7,500 kg (16,534 lb) each, on a working area of 9,000 x 2,600 mm (354.3 x 102.4 in). Two pallets are standard and change in 100 s.

03 How much does the machine weigh?

45,000 kg (99,206 lb). Machine dimensions are 22,250 x 6,700 x 2,310 mm, with 9,200 mm of X travel and 2,700 mm of Y travel inside that envelope.

04 Which cutting head is fitted?

The table names the Precitec Procutter 2.0 for the resonators from 2,000 W to 6,000 W. The Procutter Zoom 2.0 is an optional head, and bevel heads are also optional.
