Messer Cutting Systems CNC Laser Cutting Machines

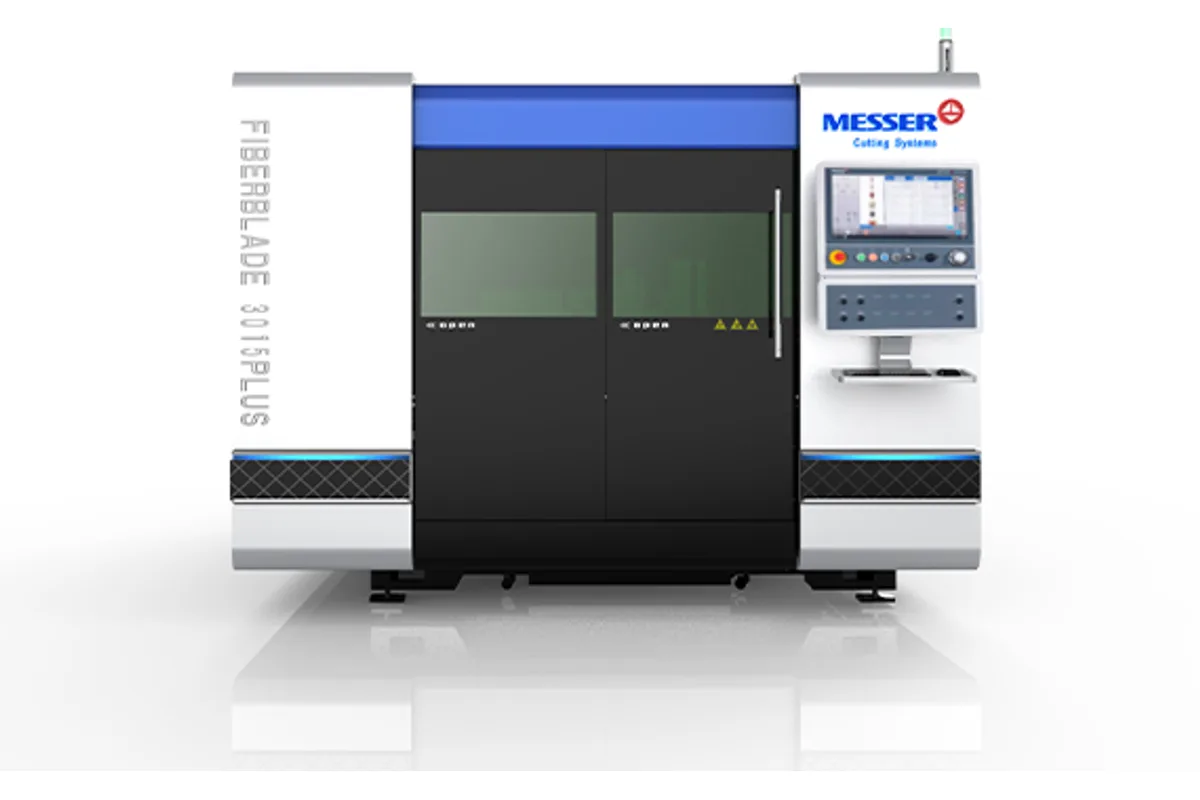

Messer FiberBlade V

Specs verified 2026-10-05 · us.messer-cutting.com Updated 2026-10-05

Image: us.messer-cutting.com, Messer Cutting Systems

Key Specifications

Accuracy

±0.03 mm/m

Repeatability

0.01 mm/m

working area x

3015: 10 ft (3.0 m); 4020: 13.28 ft (4.0 m); 6020: 20.83 ft (6.3 m)

working area y

3015: 5 ft (1.5 m); 4020: 6.64 ft (2.0 m); 6020: 6.64 ft (2.0 m)

max table load

3015: 1,653 lb (750 kg); 4020: 2,866 lb (1,300 kg); 6020: 4,188 lb (1,900 kg)

laser power

2 kW to 15 kW

How much does the Messer FiberBlade V cost?

Price estimate

Uncertain

We do not have a price for the Messer FiberBlade V that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Messer FiberBlade V is an enclosed flatbed fiber laser for sheet metal, the fifth generation of the maker's high speed laser line. Three models are listed: the 3015 with a working area of 10 ft (3.0 m) by 5 ft (1.5 m), the 4020 with 13.28 ft (4.0 m) by 6.64 ft (2.0 m), and the 6020 with 20.83 ft (6.3 m) by 6.64 ft (2.0 m). Power options run from 2 kW to 15 kW.

Unlike the plate gantries in Messer's range this is a thin-material machine, and its figures say so. Maximum simultaneous speed is 169 m/min (6,654 ipm) with acceleration of 1.5 g, and positioning accuracy is ±0.03 mm/m with repeatability of 0.01 mm/m. The worktable carries 1,653 lb (750 kg) on the 3015, 2,866 lb (1,300 kg) on the 4020 and 4,188 lb (1,900 kg) on the 6020.

The brochure's thickness table shows how little extra mild steel capacity power buys. At 2000 W the maximum is 0.629 in (16.0 mm); from 4000 W upward it stays at 0.984 in (25.0 mm). Stainless steel and aluminum alloy keep gaining, from 0.314 in (8.0 mm) at 2000 W to 1.18 in (30.0 mm) at 8000 W. More power on this machine therefore pays in speed and in stainless and aluminum thickness, not in thicker mild steel.

Automatic alignment, focusing and gas pressure adjustment are standard, and an ultra jump function shortens positioning between cuts. The machine can be linked to a material handling and storage system; for that the maker lists maximum sheet dimensions up to 320 in x 80 in in an 8020 format. The brochure and the product page name different controls, so the control should be confirmed with the maker.

Full Specifications

Parameter	Value
Working Area X	3015: 10 ft (3.0 m); 4020: 13.28 ft (4.0 m); 6020: 20.83 ft (6.3 m)
Working Area Y	3015: 5 ft (1.5 m); 4020: 6.64 ft (2.0 m); 6020: 6.64 ft (2.0 m)
Max Table Load	3015: 1,653 lb (750 kg); 4020: 2,866 lb (1,300 kg); 6020: 4,188 lb (1,900 kg)
Laser Power	2 kW to 15 kW
Max Simultaneous Speed	169 m/min (6,654 ipm)
Max Acceleration	1.5 g
Positioning Accuracy	±0.03 mm/m
Repeatability	0.01 mm/m
Max Cutting Thickness Mild Steel	2000 W: 0.629 in (16.0 mm); 3000 W: 0.866 in (22.0 mm); 4000 W to 10000 W: 0.984 in (25.0 mm)
Max Cutting Thickness Stainless Steel	2000 W: 0.314 in (8.0 mm); 3000 W: 0.472 in (12.0 mm); 4000 W: 0.590 in (15.0 mm); 6000 W: 0.787 in (20.0 mm); 8000 W and 10000 W: 1.18 in (30.0 mm)
Max Cutting Thickness Aluminum Alloy	2000 W: 0.314 in (8.0 mm); 3000 W: 0.472 in (12.0 mm); 4000 W: 0.590 in (15.0 mm); 6000 W: 0.787 in (20.0 mm); 8000 W and 10000 W: 1.18 in (30.0 mm)
Materials	Mild steel, stainless steel, aluminum, copper and brass
Max Sheet Dimension with Material Handling	Format 3015: 120 in x 60 in; 4020: 160 in x 80 in; 6020: 240 in x 80 in; 8020: 320 in x 80 in
Max Sheet Weight with Material Handling	Format 3015: 2,204 lb (1,000 kg); 4020: 3,747 lb (1,700 kg); 6020: 2,204 lb (1,000 kg); 8020: 2,204 lb (1,000 kg)

Specifications sourced from us.messer-cutting.com — verified 2026-10-05

Strengths & Limitations

Strengths

Maximum simultaneous speed of 169 m/min (6,654 ipm) with 1.5 g acceleration
Three working areas, from 10 ft (3.0 m) by 5 ft (1.5 m) to 20.83 ft (6.3 m) by 6.64 ft (2.0 m)
Power options from 2 kW to 15 kW
Auto alignment, auto focusing and auto gas pressure adjustment are standard
Can be configured with a material handling and storage system

Limitations

Mild steel thickness stays at 0.984 in (25.0 mm) from 4000 W upward in the brochure table
Worktable load is 1,653 lb (750 kg) on the 3015
Working area Y is 6.64 ft (2.0 m) at most
The brochure and the product page disagree on which control is fitted

Best For

Sheet metal job shops cutting mild steel, stainless and aluminum High-speed cutting of thin sheet in 5 ft x 10 ft and larger formats Copper and brass parts, which the maker lists as cuttable Automated cells with tower storage and sheet loading

Frequently Asked Questions

01 What sizes does the FiberBlade V come in?

Three models. The 3015 has a working area of 10 ft (3.0 m) in X and 5 ft (1.5 m) in Y, the 4020 13.28 ft (4.0 m) and 6.64 ft (2.0 m), and the 6020 20.83 ft (6.3 m) and 6.64 ft (2.0 m). Maximum load on the worktable is 1,653 lb (750 kg), 2,866 lb (1,300 kg) and 4,188 lb (1,900 kg).

02 How thick can the FiberBlade V cut?

It depends on laser power. In mild steel the brochure gives 0.629 in (16.0 mm) at 2000 W, 0.866 in (22.0 mm) at 3000 W and 0.984 in (25.0 mm) from 4000 W to 10000 W. In stainless steel and aluminum alloy it gives 0.314 in (8.0 mm) at 2000 W rising to 1.18 in (30.0 mm) at 8000 W and 10000 W.

03 How fast is the FiberBlade V?

The product page gives a maximum simultaneous speed of 169 m/min (6,654 ipm) and a maximum acceleration of 1.5 g. Positioning accuracy is ±0.03 mm/m and repeatability 0.01 mm/m. An ultra jump function shortens the positioning time between contours.

04 What laser powers are available?

The product page lists power options from 2 kW to 15 kW. The brochure's cutting thickness table covers 2000 W, 3000 W, 4000 W, 6000 W, 8000 W and 10000 W, so thickness figures above 10000 W have to come from the maker.

05 Can the FiberBlade V be automated?

Yes. It can be configured with a material handling and storage system, and the control can exchange data with a customer's MES. For the handling system the maker lists a maximum sheet weight of 2,204 lb (1,000 kg) in the 3015 format and 3,747 lb (1,700 kg) in the 4020 format.
